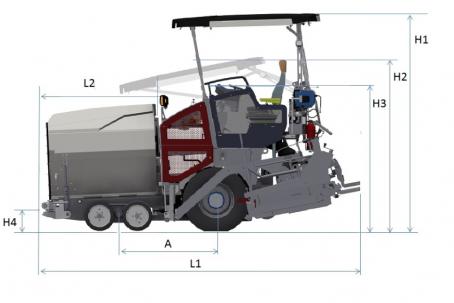

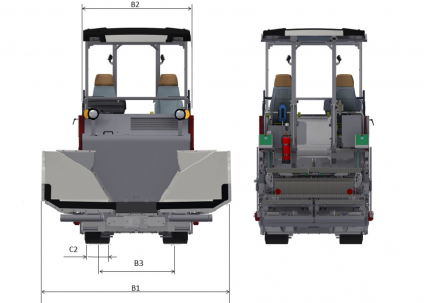

| A. Wheelbase | 1.60 m |
|---|---|
| B1. Width, max. | 3.15 m |
| B2. Width, standard | 1.91 m |
| B3. Width, center of wheels | 1.45 m |
| H1. Height, max. | 3.60 m |
| H2. Height, transport | 2.92 m |
| H3. Height | 2.40 m |
| H4. Dumping height | 0.50 m |
| L1. Length | 4.99 m |
| L2. Length, hopper | 1.99 m |
| Masses | |
| Mass (incl. standard screed) | 10.3 t |
|---|---|
| Traction | |
| Maximum paving speed | 25 m/min |
| Transport speed | 15 km/h |
| Alternative Engine | |
| Manufacturer/Model | |
| Operation | |
| Operational controls | Pave Manager 2.0 |

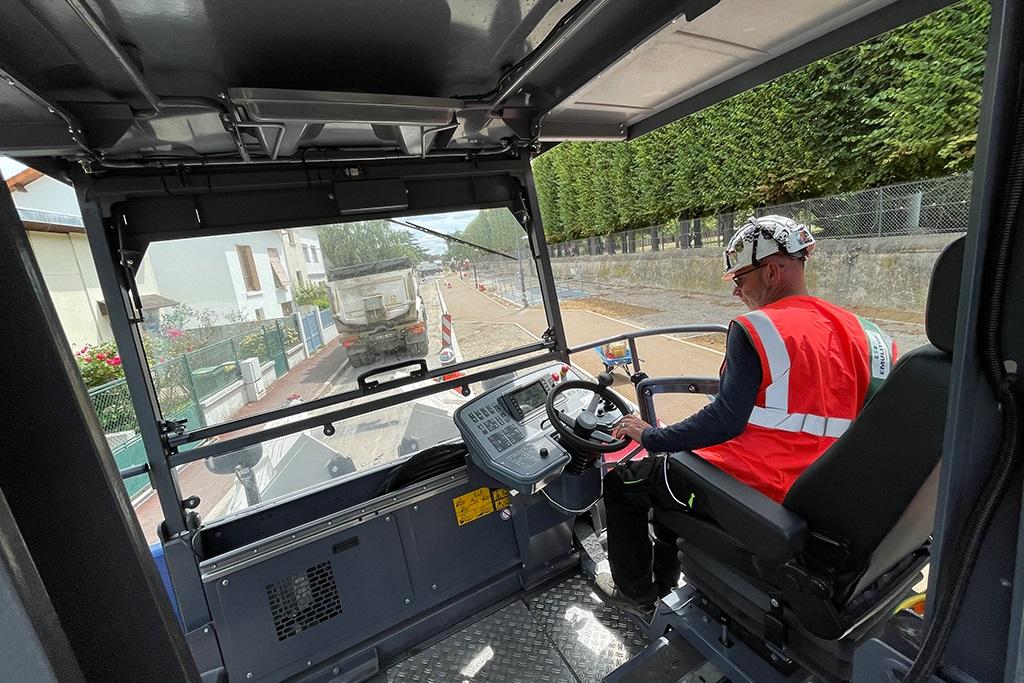

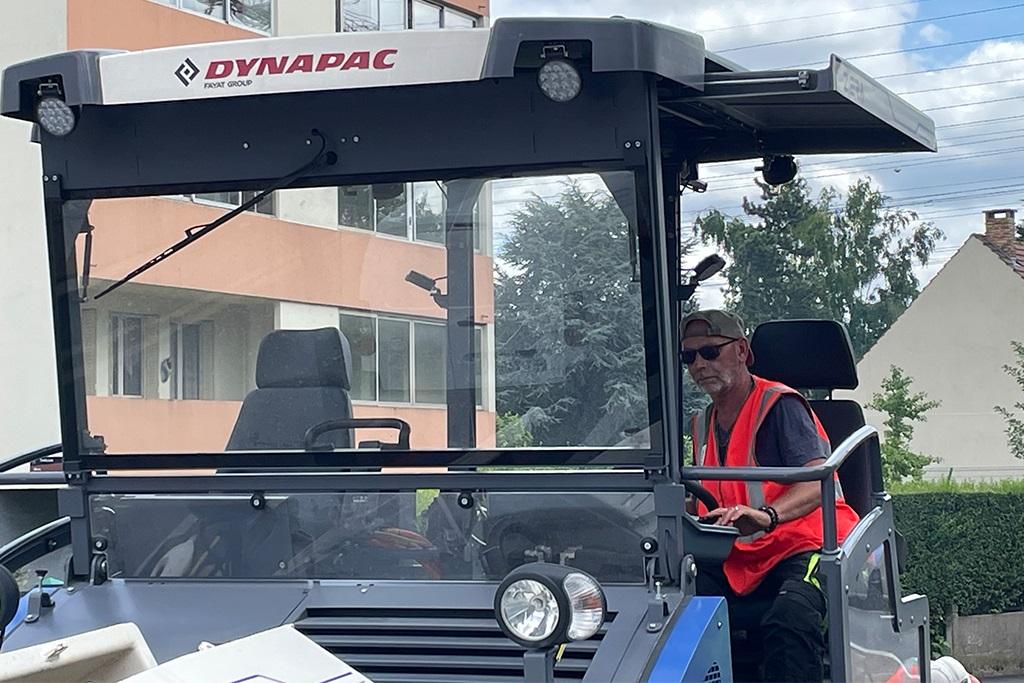

| Platform | Extendable roof, slidable seat station, sliding/tilting control panel, swivel seat |
| Conveyor | |
| Conveyor control | Proportional speed control, Both sides driven independently, Reversible |
| Conveyor type | Dual bar feeder |
| Conveyor width | 700 mm |
| {phrase:electrical_motor} | |
| Motor type | Permanent Magnet Synchronous Motor (PMSM) |
| Motor power @ 3000 rpm | 55 kW |
| {phrase:el_system} | |
| Battery type | Lithium-ion |
| Nominal battery voltage | 700 V |
| Battery capacity (gross) | 98 kWh |
| Auxiliary battery voltage | 24 V |

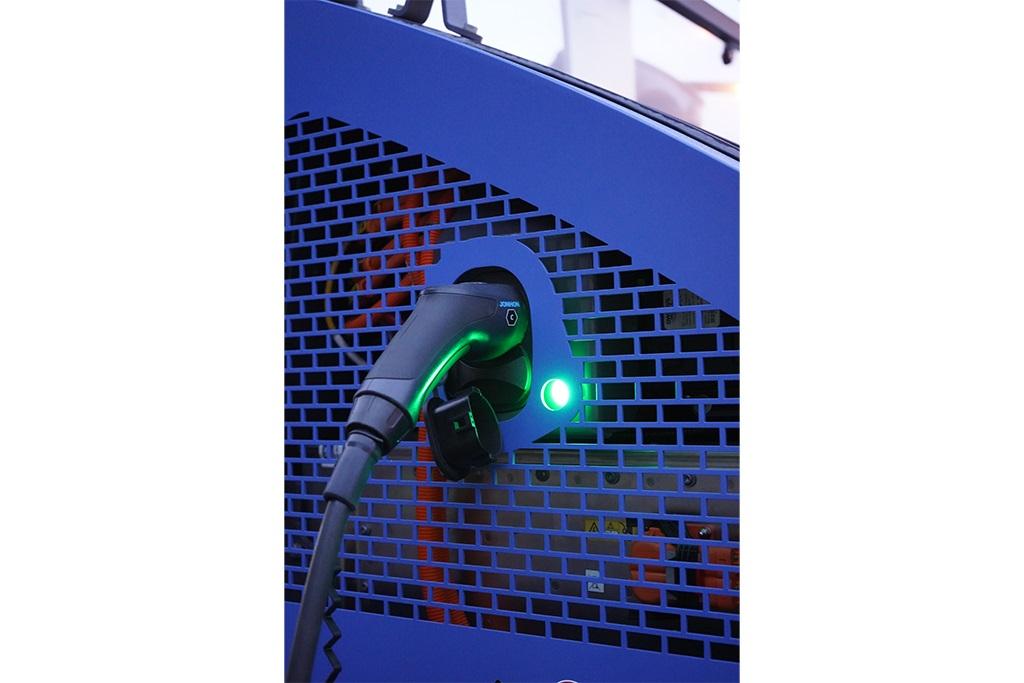

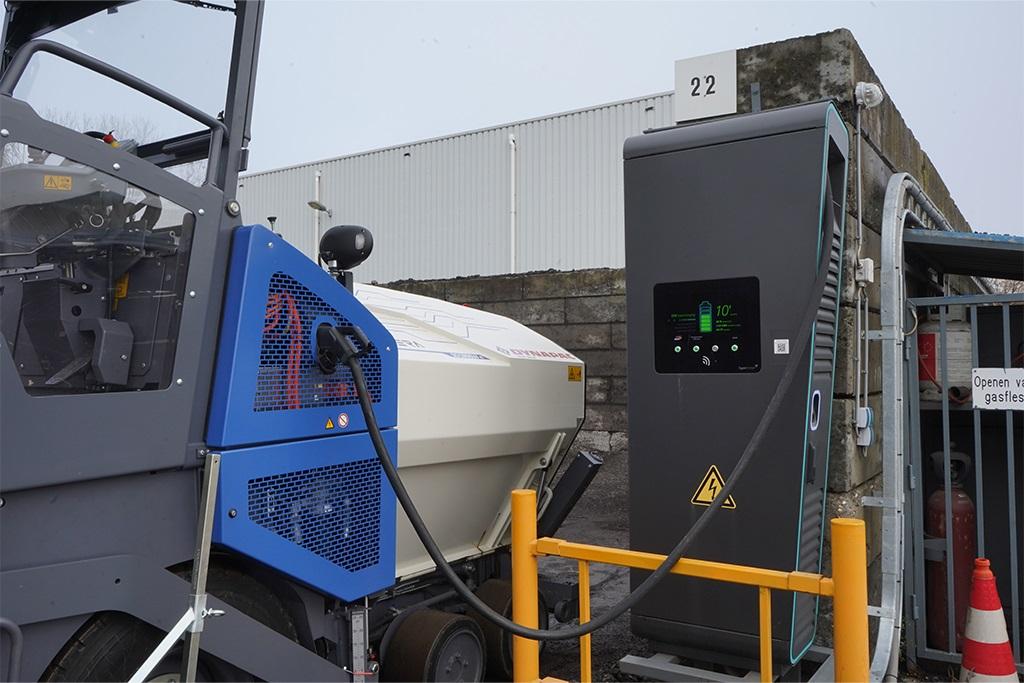

| {phrase:charging} | |
| 5 - 80% @ 80kW (DC) | ~40 min |
| 5 - 80% @ 400V 22kW (AC) | ~3 hours |
