Dynapac MF2500CM Mobile feeders

My comparison

Experience
Pictures

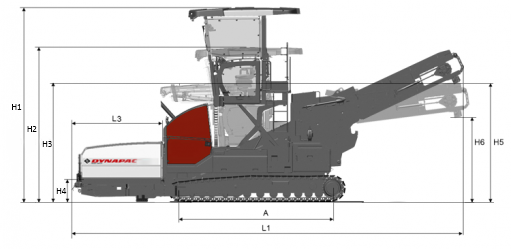

Dimensions

A. Axle track	3.90 m
B1. Width, max.	3.35 m
B2. Width, standard	2.55 m
B3. Width, center of tracks	2.09 m
C1. Crawler Width	0.32 m
H1. Height, max.	5.02 m
H2. Height	4 m
H3. Height, transport	3.10 m
H4. Dumping height	570 mm
H5. Feeding height, max.	3.0 m
H6. Feeding height, min.	2.1 m
L1. Length	10.24 m
L3. Length, hopper	2.23 m

Transport mass: 21 t

Conv feed capacity: N/A

Feeding height: N/A

Technical data

Masses
Transport mass	21 t
Traction
Operating speed, max	25 m/min
Transport speed, max	4 km/h
Conveyor
Conveyor type	Rubber belt on two chains, mounted with metal stiffeners
Conveyor speed	Constantly variable
Conveyor width	1200 mm

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Bearing set - Rocker assy

Category	Subcategory	P/N	Additional info
Paving	Screeds	4812012907	Compactor drive

Bearing set - Tamper drive

Category	Subcategory	P/N	Additional info
Paving	Screeds	D299000249

Bearing set - Tamper wing

Category	Subcategory	P/N	Additional info
Paving	Screeds	D299000250

Heating element kit

Category	Subcategory	P/N	Additional info
Paving	Screeds	4812012918	For complete Screed
Paving	Screeds	4812012921	For 1 section

Screed plate kit

Category	Subcategory	P/N	Additional info
Paving	Screeds	4812032423	Hardox 400 without Tamper Blades
Paving	Screeds	4812032441	Hardox 500 without Tamper Blades
Paving	Screeds	4812012922	Compactor plates

Screed wear part kit

Category	Subcategory	P/N	Additional info
Paving	Screeds	4812035302	Hardox 400 with Tamper Blades
Paving	Screeds	4812035303	Hardox 500 with Tamper Blades

Tamper bar kit

Category	Subcategory	P/N	Additional info
Paving	Screeds	4812038826

Tamper guide plate kit

Category	Subcategory	P/N	Additional info
Paving	Screeds	4812035289

Equipment (Standard and options)

Standard

■ Feed Manager 2
■ Standard push roller
■ Mechanical rock deflector
■ LED working lights
■ Emulsion spray system
■ Chain lubrication system
■ Lifting cylinder for loading and unloading the machine
■ Second operator station
■ Release agent spray system incl. 15m spray hose

Optional

■ TruckAssist Advanced
■ Multifunctional joystick integrated in seat armrest
■ Light balloons LED 1x400W
■ Steering control 10m / 14m
■ LightAssist
■ Camera System
■ Material Hopper MH2500
