Dynapac MF2500CL Mobile feeders

Pictures

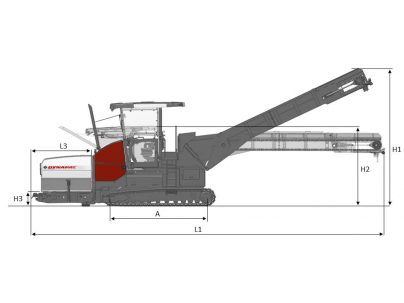

Dimensions

A. Axle track	3.95 m
B1. Width, max.	3.55 m
B2. Width, standard	2.55 m
B3. Width, center of tracks	2.09 m
C1. Track width	320 mm
H1. Height, max.	5 m
H2. Height, transport	3.10 m
H3. Height	580 mm
L1. Length	9.25 m
L3. Length, hopper	2.25 m

Mobile feeders are a transport and conveying system which is used as a non-contact connecting element between road finishing machines and transport vehicles carrying mixed goods. A hopper for mixed goods is used for storing the material, which is transported on a heat-resistant rubber type band to a sensor controlled, automatically height adjusted conveyor at the front end of the feeder.

Transport mass: 22 t

Conv feed capacity: 4000 t/h

Feeding height: 4.4 m / 1.9 m

Technical data

Masses
Transport mass	22 t
Traction
Operating speed, max	25 m/min
Transport speed, max	4 km/h
Engine
Manufacturer	Cummins
Model	QSB 6.7-C260
Manufacturer / Model	Cummins QSB 6.7-C260
Rated power, SAE J1995	194 kW (260 hp ) @ 2200 rpm
Electrical system	24 V
Emissions according to	Stage 3A / 4 (Tier 3 / 4f)
Fuel tank capacity	300 l
Conveyor
Conveyor type	Rubber belt on two chains mounted with metal stiffeners.
Conveyor speed	Variable
Conveyor width	1.20 m
Feeding height	m
Feeding height (max/min)	4.4 m / 1.9 m
Feed capacity	4000 t/h

Service Kits

Bearing set - Tamper drive

Category	Subcategory	P/N	Additional info
Paving	Screeds	D299000249

Bearing set - Tamper wing

Category	Subcategory	P/N	Additional info
Paving	Screeds	D299000250

Gas hose kit

Category	Subcategory	P/N	Additional info
Paving	Screeds	4812035287

Screed plate kit

Category	Subcategory	P/N	Additional info
Paving	Screeds	4812032394	Hardox 400 without Tamper Blades
Paving	Screeds	4812035300	Hardox 400 with Tamper Blades, bottom plates
Paving	Screeds	4812032411	Hardox 500 without Tamper Blades
Paving	Screeds	4812035301	Hardox 500 with Tamper Blades, bottom plates

Tamper bar kit

Category	Subcategory	P/N	Additional info
Paving	Screeds	4812038826

Tamper guide plate kit

Category	Subcategory	P/N	Additional info
Paving	Screeds	4812035289
