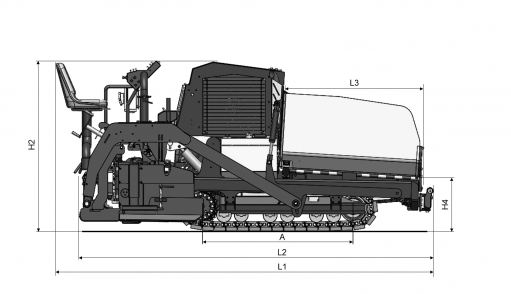

| A. Axle track | 1830 mm |
|---|---|

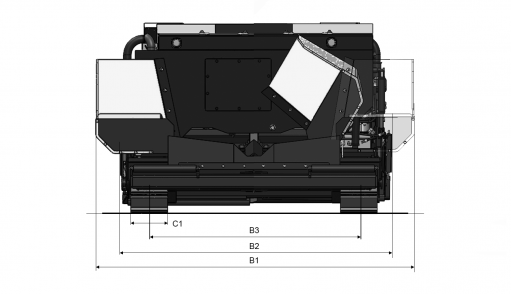

| B1. Width, max. | 3175 mm |
| B2. Width, standard | 2590 mm |
| B3. Width, center of tracks | 2060 mm |
| C1. Track width | 305 mm |
| H2. Height, transport | 1800 mm |
| H4. Dumping height | 535 mm |
| L1. Length, total | 4190 mm |
| L2. Length, transport | 4190 mm |
| L3. Length, hopper | 1650 mm |
| Masses | |
| Mass (incl. standard screed) | 8.4 t |
|---|---|
| Mass (tractor) | 6.4 t |
| Traction | |
| Paving speed | 2,5 km/h |
| Transport speed | 5.0 km/h |
| Engine | |
| Electrical system | 12V |
| Emissions according to | EPA T3/EU3A |
| Engine alternator capacity | 120 Amps |
| Fuel tank capacity | 83 l |
| Heating generator capacity | 16 kW, 240V 1 phase |
| Manufacturer/Model | Cummins QSB 3.3 |
| Rated power, SAE J1995 | 74 kW (99 hp ) @ 1400 rpm |
| Conveyor | |
| Conveyor control | On/Off |
| Conveyor type | Dual slat conveyor |
| Conveyor width | 610 mm |
| Type of fluid | Volume | Additional info | |
|---|---|---|---|
| Dynapac Paver Grease |
|
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | HIGHWAY PAVERS | 4812273376 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | HIGHWAY PAVERS | 4812035552 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | HIGHWAY PAVERS | 4812028403 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | HIGHWAY PAVERS | 4812028402 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | HIGHWAY PAVERS | 4812035553 |
