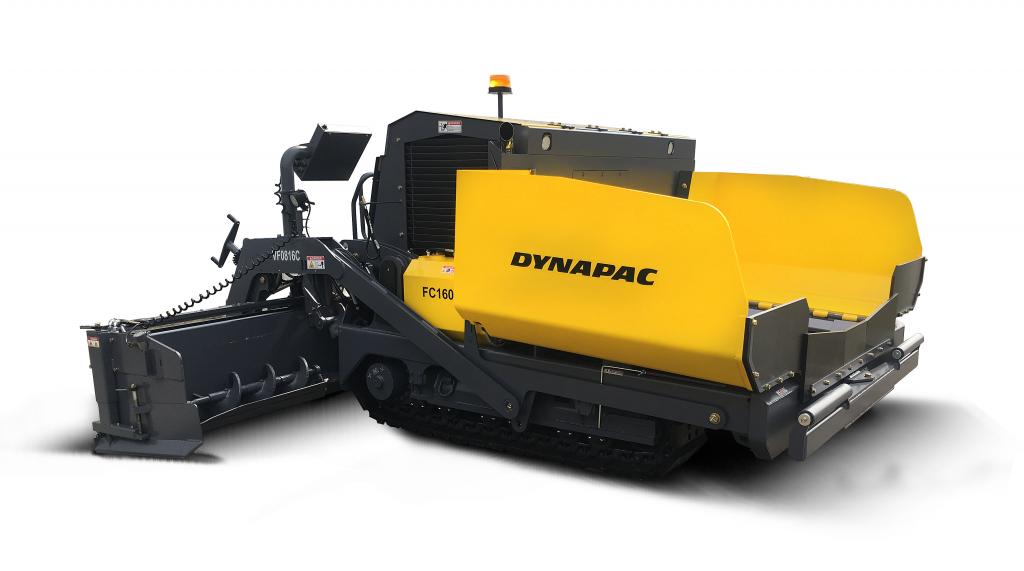

Dynapac FC1600C Tracked pavers

Pictures

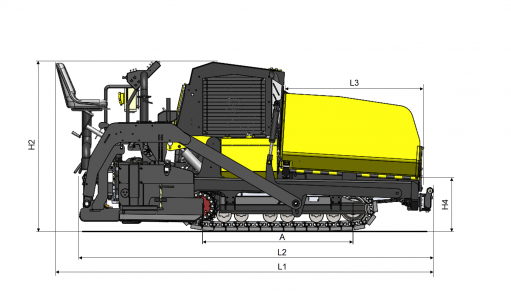

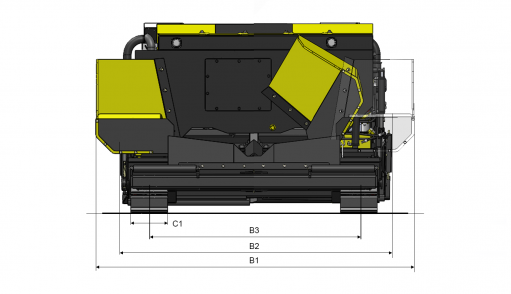

Dimensions

A. Axle track	1830 mm
B1. Width, max.	3175 mm
B2. Width, standard	2590 mm
B3. Width, center of tracks	2060 mm
C1. Track width	305 mm
H2. Height, transport	1800 mm
H3. Height
H4. Dumping height	535 mm
L1. Length, total	4190 mm
L2. Length, transport	4190 mm
L3. Length, hopper	1650 mm

Basic paving width: 2.60 m

Max. paving width: 5.50 m

Max. layer thickn.: N/A

Theor placement cap.: 600 t/h

Technical data

Masses
Mass (tractor)	6.4 t
Mass (incl. standard screed)	8.4 t
Traction
Paving speed	2,5 km/h
Transport speed	5 km/h
Engine
Manufacturer/Model	Cummins QSB 3.3
Emissions according to	EPA T3/EU3A
Rated power, SAE J1995	74 kW (99 hp ) @ 1400 rpm
Electrical system	12V
Fuel tank capacity	83 l
Engine alternator capacity	120 Amps
Heating generator capacity	16 kW, 240V 1 phase
Conveyor
Conveyor type	Dual slat conveyor
Conveyor width	610 mm
Conveyor control	On/Off

Service Kits

Gas hose kit

Category	Subcategory	P/N	Additional info
Paving	Screeds	4812046596	For 1000mm Extension. From 2015 ->

Heating element kit

Category	Subcategory	P/N	Additional info
Paving	Screeds	4812046588	Main screed. From 2015 ->
Paving	Screeds	4812046590	For 250mm Extension. From 2015 ->
Paving	Screeds	4812046592	For 500mm Extension. From 2015 ->
Paving	Screeds	4812046594	For 750mm Extension. From 2015 ->
Paving	Screeds	4812046599	For hydr.extension. From 2015 ->

Screed wear part kit

Category	Subcategory	P/N	Additional info
Paving	Screeds	4729900173	Hardox 400, basic screed
Paving	Screeds	D29900414	Hardox 400, basic screed
Paving	Screeds	D29900437	Basic screed with electric ignition, PT100
Paving	Screeds	4729900172	With 250mm extension box
Paving	Screeds	4729900171	With 500mm extension box
Paving	Screeds	D299000326	With 750mm extension box
Paving	Screeds	4729900170	Without ignition, 1000mm extension box
Paving	Screeds	4729900174	With electric ignition, 1000mm extension box
Paving	Screeds	D299000436	With electric ignition version PT100, 1000mm extension box
Paving	Screeds	4812046587	From year 2015 ->
Paving	Screeds	4812046595	For 1000mm extension. From year 2015 ->
Paving	Screeds	4812046593	For 750mm extension. From year 2015 ->
Paving	Screeds	4812046591	For 500mm extension. From year 2015 ->
Paving	Screeds	4812046589	For 250mm extension. From year 2015 ->
Paving	Screeds	4812046597	For hydr. Extension l.h. From 2015 ->
Paving	Screeds	4812046598	For hydr. extension r.h. From 2015 ->

Equipment (Standard and options)

Standard

LED Work Lights, Backup Alarm & Rotating Beacon, Reversibe auger and conveyor, Rebuildable wear resistance conveyor floor plates, Segmented High Wear Augers, Hydraulic Tow Point, Screed Power Crown, Screed Power Match height, FleetLink Telematics, Ultrasonic sensors auger, Wash down spray system, Dual operator console with conventional electrics, Vandal package

Optional

Screed Ext. Power slope control, Road Crew Kit, 3 Man operation, Levelling System, Averaging Ski beam, Cut-Off plates, Screed Extension, Heated end gate, Truck Hitch, Umbrella
