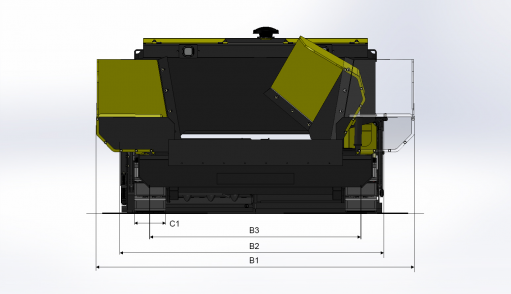

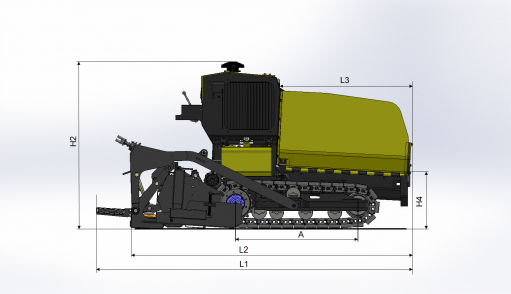

| A. Axle track | 1397 mm |
|---|---|
| B1. Width, max. | 3175 mm |
| B2. Width, standard | 2590 mm |
| B3. Width, center of tracks | 2030 mm |
| C1. Track width | 305 mm |
| H2. Height, transport | 1630 mm |
| H4. Dumping height | 535 mm |
| L1. Length, total | 3450 mm |
| L2. Length, transport | 3450 mm |
| L3. Length, hopper | 1520 mm |
| Masses | |
| Mass (tractor) | 4.2 t |
|---|---|
| Mass (incl. standard screed) | 5.7 t |
| Traction | |
| Paving speed | 2,5 km/h |
| Transport speed | 5 km/h |
| Engine | |
| Manufacturer/Model | Kubota V3600 |
| Emissions according to | EPA T4i/EU3B |
| Rated power, SAE J1995 | 50 kW (67 hp ) @ 2600 rpm |
| Electrical system | 12V |
| Fuel tank capacity | 50 l |
| Engine alternator capacity | 90 Amps |
| Heating generator capacity | N/A |
| Conveyor | |
| Conveyor type | Dual slat conveyor |
| Conveyor width | 610 mm |
| Conveyor control | On/Off |
Standard
LED Work Lights, Backup Alarm & Rotating Beacon, Reversibe auger and conveyor, Rebuildable wear resistance conveyor floor plates, Segmented High Wear Augers, FleetLink Telematics, Ultrasonic sensors auger, Wash down spray system, Dual operator console with conventional electrics
Optional
Levelling System, Averaging Ski beam, Cut-Off plates, Truck Hitch, Umbrella
