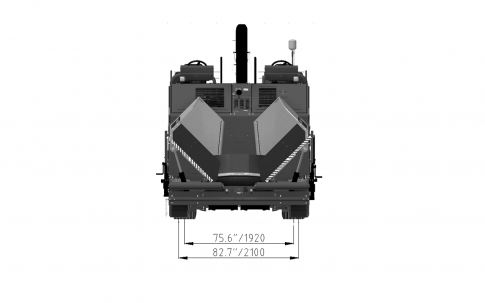

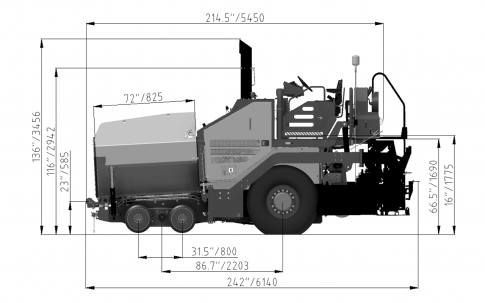

| A. Axle track | |
|---|---|
| H4. Dumping height | |
| K. Ground clearance | |
| L2. Length, hopper |
| Masses | |
| Mass (incl. standard screed) | 17.30 t |
|---|---|
| Weight | 14.50 t |
| Traction | |
| Paving speed | 0-35 m/min |
| Maximum paving speed | 78 m/min |
| Transport speed | 17.5 km/h |
| Turning radius | 1.5 m |
| Engine | |
| Manufacturer/Model | Cummins QSB 6.7-173 |
| Rated power | 129 kW (173 hp ) @ 2300 rpm |
| Rated power (Eco mode) | 134 kW (180 hp ) @ 1,800 rpm |
| Emissions according to | STAGE IV / TIER 4f |
| Electrical system | 24V / 70A |
| Generator (tractor mounted) | 34 kW |
| Fuel tank capacity | 300 l |
| Alternative Engine | |
| Manufacturer/Model | |
| Operation | |
| Operator console | Dual Swing out |
| Dashboard | Ergonomic with Multifunction display /console Simplified smart switches, Cup holder |
| Conveyor | |
| Conveyor type | Dual bar feeder |
| Conveyor width | mm |
| Conveyor width | 2 x 506 mm |
| Conveyor control | Two independent conveyor half's with infinitely variable speed. Both half's can be controlled separately. Conveyor control independent of Augers by Ultrasonic sensors. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Mobile feeders | 4812009720 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Mobile feeders | 4812009718 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Mobile feeders | 4812007263 | With steel rops. Version 1 | |
| Paving | Mobile feeders | 4812015980 | With steel rops. Version 2 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Mobile feeders | 4812008959 | For long track frame | |
| Paving | Mobile feeders | 4812008960 | For short track frame |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Mobile feeders | 4812009723 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Mobile feeders | 4812046970 | TIER 4 | |
| Paving | Mobile feeders | 4812046969 | TIER 3 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Mobile feeders | 4812042198 | TIER 4 | |
| Paving | Mobile feeders | 4812043984 | TIER 4 | |
| Paving | Mobile feeders | 4700691229 | TIER 3 | |
| Paving | Mobile feeders | 4812043983 | TIER 3 |
