Paving

Dynapac F800W US Highway pavers

0
My comparison
  • Pictures

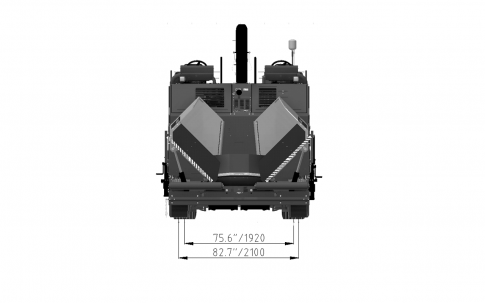

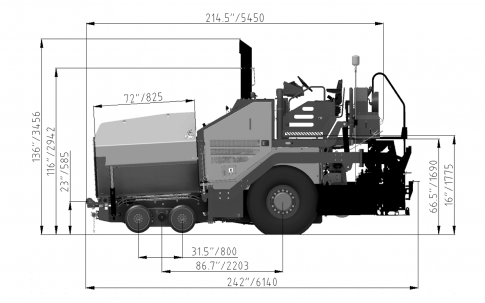

  • Dimensions
Transport dimensions (LxWxH) 6.2 x 2.6 x 3.0 m
V. Ramp angle 14°
Working width, max. 5.79 m
Discontinued true
Introducing Dynapac F800W 8 ft Wheel paver, a perfect addition to the existing highway class paver line. Dynapac F800W combines innovative features and decades of experience, making it as one of the best 8ft (2,44m) highway class pavers available in the US market.
Basic paving width: 2.44 mm
Max. paving width: 5.79 m
Max. layer thickn.: 305 mm
Theor placement cap.: 907 t/h

Features & benefits

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Technical data

Masses
Weight 14.50 t
Basic weight (incl. standard screed) 17.30 t
Traction
Paving speed 0-35 m/min
Maximum paving speed 78 m/min
Transport speed 17.5 km/h
Turning radius 1.5 m
Engine
Manufacturer/Model Cummins QSB 6.7-173
Emissions according to STAGE IV / TIER 4f
Type 6 cylinder water cooled diesel
engine with hydraulically driven fan
Rated power, SAE J1995 129 kW (173 hp ) @ 2300 rpm
Electrical system 24V / 70A
Generator (tractor mounted) 34 kVA
Fuel tank capacity 300 l
Rated power (Eco mode) 134 kW (180 hp ) @ 1,800 rpm
Operation
Operator console Dual Swing out
Dashboard Ergonomic with Multifunction display /console Simplified smart switches, Cup holder
Conveyor
Conveyor type Dual bar feeder
Conveyor width 2 x 506 mm
Conveyor control Two independent conveyor half's with infinitely variable speed. Both half's can be controlled separately. Conveyor control independent of Augers by Ultrasonic sensors

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Auger wear part kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812274490
Paving Wheeled pavers 4812274491 Extended auger 15ft.
Paving Wheeled pavers 4812274492 Extended auger 1ft.
Paving Wheeled pavers 4812274493 Extended auger 2ft.
Paving Wheeled pavers 4812246513 Basic auger blade
Conveyor bearing kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812274413
Conveyor chain kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812247992
Conveyor drive kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812273378 Conveyor drive chain
Conveyor guide kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812247992
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812313274
Conveyor sprocket kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812274412
Hopper skirt kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812273377
Paving Wheeled pavers 4812313293 Low version
Paving Wheeled pavers 4812313532 Hydraulic powered standard size
Paving Wheeled pavers 4812313533 Hydraulic powered short size
Rear plate kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812274414
Service kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812273240 Start-up kit 100 h
Service kit , 1000H
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812273242
Service kit , 2000H
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812273243
Service kit , 500H
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812273241

Compaction data

LEVEL II

Please or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac F800W?

Please Log in or Register to MyDynapac to get access.
