Paving

Dynapac F800T US Highway pavers

0
My comparison
  • Pictures

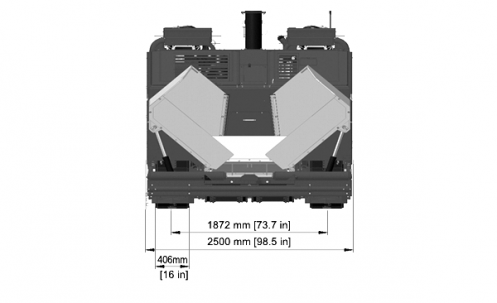

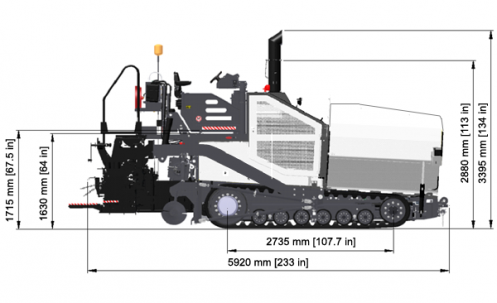

  • Dimensions
Basic width 2.44 mm
Working width, max. 5.79 m
Working width, minimum (with reducing shoe) 1.2 m
Discontinued false

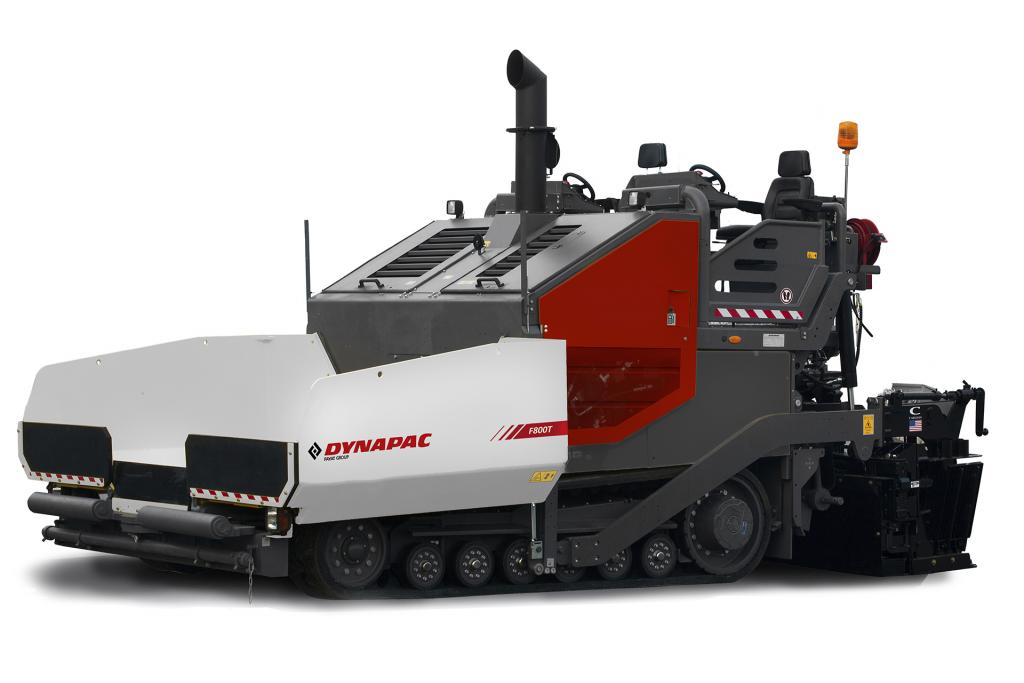

Introducing Dynapac F800T 8ft (2,44m) rubber track paver, a perfect addition to the existing highway class paver line. Dynapac F800T combines innovative features and decades of experience, making it as one of the best 8ft (2,44m) highway class pavers available in the US market.
Basic paving width: 2.44 mm
Max. paving width: 5.79 m
Max. layer thickn.: 305 mm
Theor placement cap.: 907 t/h

Technical data

Masses
Mass (incl. standard screed) 17.8 t
Weight 15.20 t
Tractor weight with rear ext screed g
Tractor weight including Mat Master screed
Traction
Paving speed 0 - 27 m/min
Maximum paving speed 60 m/min
Transport speed 14 km/h
Engine
Emissions according to Tier 4F
Type 6 cylinder water cooled diesel
engine with hydraulically driven fan
Rated power, SAE J1995 129 kW (173 hp ) @ 2300 rpm
Electrical system 24V / 70A
Generator (tractor mounted) 34 kVA
Fuel tank capacity 320 l
Operation
Operator console Dual Swing out
Dashboard Ergonomic dashboard with Multifunction
display on each console
Conveyor
Conveyor type Dual bar feeder
Conveyor width 2 x 510 mm
Conveyor control Two independent conveyor half's with
infinitely variable speed. Both half's can
be controlled separately. Conveyor control
independent of Augers by Ultrasonic sensors.

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Auger reinforcement kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812274490 Hydraulic extension auger kit
Conveyor bearing kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812274413
Conveyor chain kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812273378 Drive
Paving Tracked pavers 4812245380
Conveyor guide kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812274410
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812274411
Conveyor sprocket kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812274412
Hopper skirt kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812273377
Rear plate kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812274414
Screed connect kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812248743 Screed dis-connect kit
Service kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812247914 Hopper assembly, short rubber
Paving Tracked pavers 4812274491 Extend auger, 15FT KIT
Paving Tracked pavers 4812274492 Extend auger, 1FT KIT
Paving Tracked pavers 4812274493 Extend auger, 2FT KIT
Paving Tracked pavers 4812246513 Basic auger blade
Paving Tracked pavers 4812274494 Kit, key replacement
Service kit , 1000H
Category Subcategory P/N Additional info
Paving Tracked pavers 4812273242 F800W (IV/T4)
Service kit , 100H
Category Subcategory P/N Additional info
Paving Tracked pavers 4812273240 F800W (IV/T4)
Service kit , 2000H
Category Subcategory P/N Additional info
Paving Tracked pavers 4812273243 F800W (IV/T4)
Service kit , 500H
Category Subcategory P/N Additional info
Paving Tracked pavers 4812273241 F800W (IV/T4)

Spare parts manuals

Eager to see the spare parts of Dynapac F800T?

Please Log in or Register to MyDynapac to get access.
