Dynapac F1700WS Wheeled pavers

Pictures

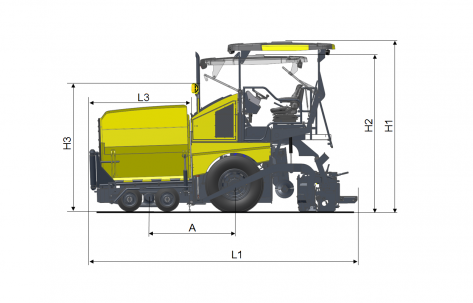

Dimensions

A. Wheelbase	1590 mm
B1. Width, max.	3020 mm
B2. Width, standard	1700 mm
B3. Width, center of wheels	1300 mm
H1. Height, max.	3150 mm
H2. Height, transport	2950 mm
H3. Height, w/o canopy	2350 mm
H4. Dumping height
K. Ground clearance
L1. Length	4950 mm
L2. Length, hopper
L3. Length, hopper	1650 mm

This reliable 4-wheel driven paver with a basic width of 1,70 m combines agility, traction and maneuvrability. In combination with the Dynapac V340TV-screed the Dynapac F1700WS offers exellent compaction and an outstanding surface finish.

Basic paving width: 1.70 m

Max. paving width: 250 m

Max. layer thickn.: 270 mm

Theor placement cap.: 300 t/h

Technical data

Masses
Weight	8.60 t
Traction
Paving speed	0 - 30 m/min
Maximum paving speed	m/s
Transport speed	18.0 km/h
Engine
Manufacturer / Model	Deutz TD 2011 L04
Rated power	52 kW (71 hp ) @ 2300 rpm
Electrical system	24V
Fuel tank capacity	65 l
Alternative Engine
Manufacturer / Model
Conveyor
Conveyor type	Dual bar feeder
Conveyor width	2x 350 mm
Conveyor control	Automatic with limit switches

Fluids

Auger gear box

Type of fluid	Volume	Additional info
Dynapac Gear Oil 300	1,2 liter

Drive axle (differential)

Type of fluid	Volume	Additional info
Dynapac Gear Oil 300	11,5 liter

Grease

Type of fluid	Volume	Additional info
Dynapac Paver Grease

Split gear box

Type of fluid	Volume	Additional info
Dynapac Gear Oil 300	1,2 liter
