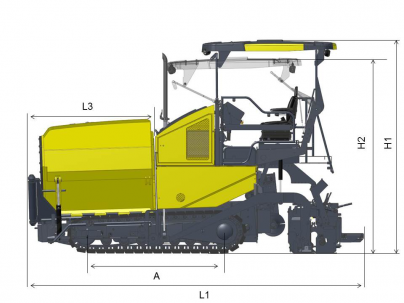

| A. Axle track | 2,060 mm |
|---|---|

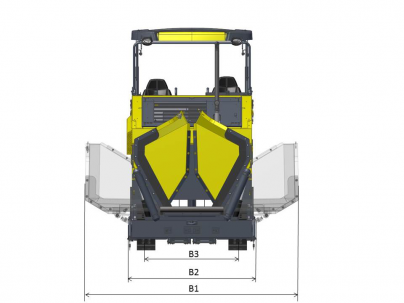

| B1. Width, max. | 3020 mm |
| B2. Width, standard | 1,700 mm |
| B3. Width, center of tracks | 1,300 mm |
| C1. Track width | 260 mm |
| H1. Height, max. | 3,150 mm |
| H2. Height, transport | 2,950 mm |
| H3. Height | |
| L1. Length | 4,945 mm |
| L3. Length, hopper | 1,800 mm |
A tool to monitor and control their machine fleet efficiently and conveniently.
| Masses | |
| Weight (incl. V340TV) | 8.80 t |
|---|---|
| Traction | |
| Paving speed | 0-32 m/min |
| Transport speed | 3.80 km/h |
| Engine | |
| Manufacturer/Model | Deutz TD 2011 L04 |
| Emissions according to | COM 2 |
| Rated power | 52 kW |
| Rated power, SAE J1995 | 52 kW (71.0 hp ) @ 2300 rpm |
| Electrical system | 24V |
| Fuel tank capacity | 98 l |
| Conveyor | |
| Conveyor type | Dual bar feeder |
| Conveyor width | 2 x 350 mm |
| Conveyor control | Two independent conveyor with infinitely variable proportional control |
| Type of fluid | Volume | Additional info | |
|---|---|---|---|
| Dynapac Paver Grease |
|
| Type of fluid | Volume | Additional info | |
|---|---|---|---|
| Dynapac Gear Oil 300 | 1,7 liter |
|
| Type of fluid | Volume | Additional info | |
|---|---|---|---|
| Dynapac Gear Oil 200 | 1,6 liter |
|
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Tracked pavers | D299000826 | SN: 4550010-4550060, 4550062, 63, 66, 67, 70 | |
| Paving | Tracked pavers | D299000827 | SN: 4550061, 64, 68 and 4550072 ff |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Tracked pavers | 4812031434 | SN: 4550010-4550060, 4550062, 63, 66, 67, 70 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Tracked pavers | D299000828 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Tracked pavers | D299000346 | standard (with iron nose) | |
| Paving | Tracked pavers | D299000386 | (w/o iron nose) |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Tracked pavers | 4729900098 | From Nr. 0068656 | |
| Paving | Tracked pavers | 4729900095 | From et sheet 230-005B | |
| Paving | Tracked pavers | D299000556 | BF03 2011 COM2 | |
| Paving | Tracked pavers | D299000854 | D2011L3I - COM3 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Tracked pavers | 4729900094 | From Nr. 0068656 | |
| Paving | Tracked pavers | 4729900094 | From et sheet 230-005B | |
| Paving | Tracked pavers | D299000546 | BF03 2011 COM2 | |
| Paving | Tracked pavers | D299000853 | D2011L3I - COM3 |
