Dynapac F1250CS PLUS Compact pavers

My comparison

Experience
Pictures
Dimensions

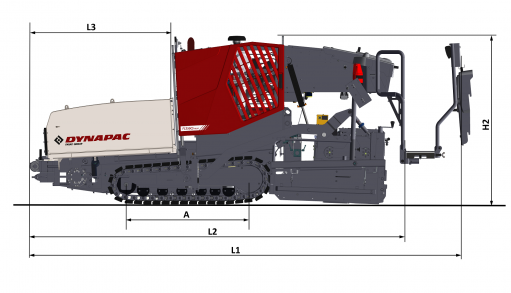

Blueprint side view Dynapac F1250CS PLUS

A. Axle track	1400 mm
B1. Width, max.	2820 mm
B2. Width, transport (with main screed)	1450 mm
B3. Width, external track	1140 mm
B4. Width, center of tracks	940 mm
C1. Track width	200 mm
H2. Height, transport	2020 mm
L1. Length, total	4790 mm
L2. Length, transport	4380 mm
L3. Length, hopper	1605 mm

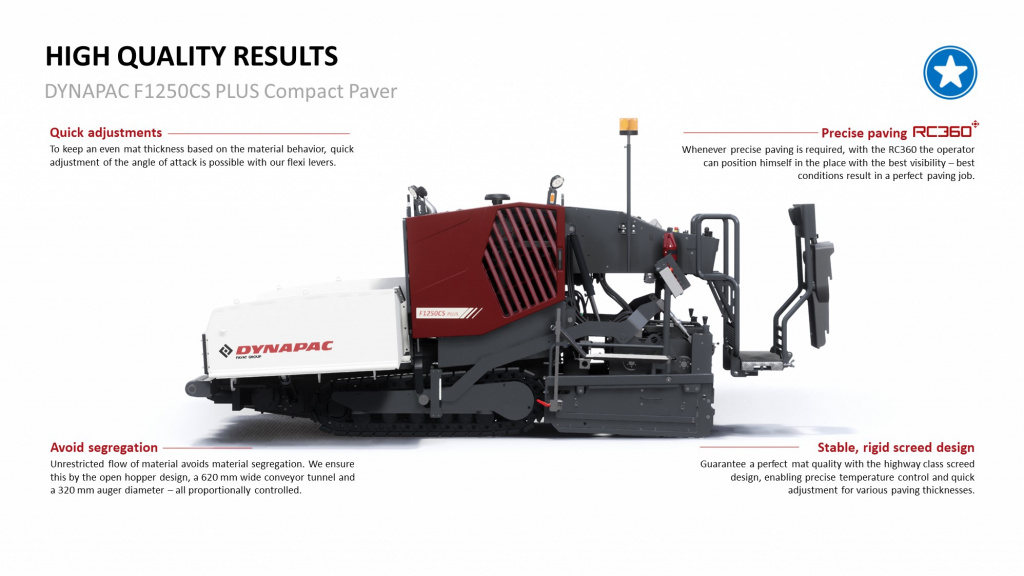

The Dynapac F1250CS PLUS is the ultimate solution for achieving exceptional paving results in widths ranging from 0.5 to 3.5 meters, even under the most demanding urban conditions. This compact paver, equipped with a state-of-the-art screed, ensures impeccable mat quality and adaptability to challenging job site requirements. Enhanced by the cutting-edge RC360 remote control, operators can enjoy unparalleled flexibility, safety, and smart control while paving. Designed for versatility and efficiency, the F1250CS PLUS is the go-to choice for urban paving projects, combining performance with ease of use for a superior paving experience.

Basic paving width: 1.20 m

Max. paving width: 3.50 m

Max. layer thickn.: 200 mm

Theor placement cap.: 300 t/h

Features & benefits

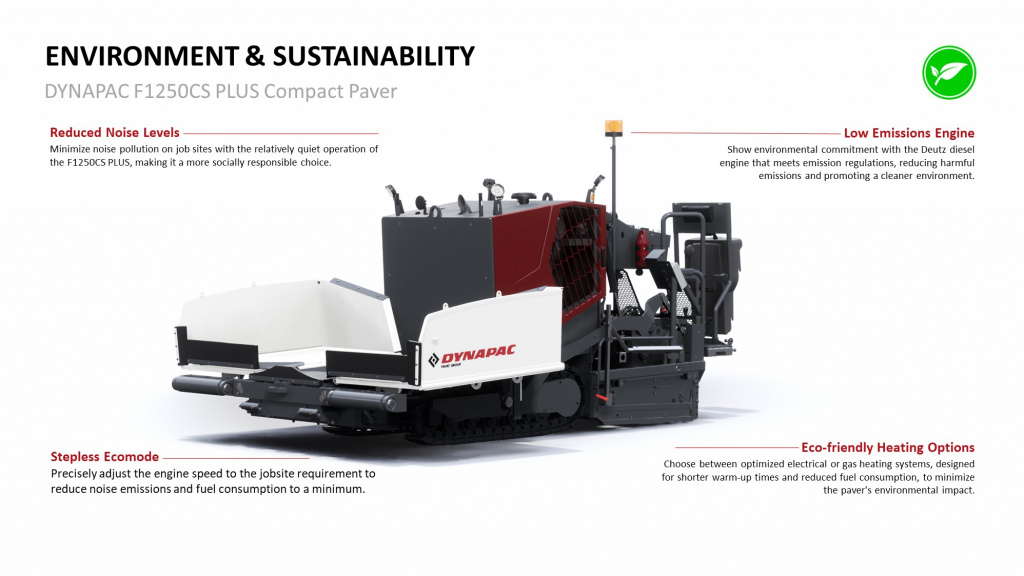

Eco mode

Big fuel savings with ECO!

Stage V tier 4f

header text here

Technical data

Masses
Mass (incl. standard screed)	7.0 t
Traction
Paving speed	up to 27 m/min
Transport speed	3.3 km/h
Engine
Manufacturer / Model	Deutz TD2.9 L4
Emissions according to	EU Stage V / EPA Tier 4f
Rated power	55.4 kW @ 2200 rpm
Electrical system	2 x 12V, 72Ah
Fuel tank capacity	85 l
Alternative Engine
Manufacturer / Model	Deutz TD2.9 L4
Emissions according to	EU Stage III / EPA Tier 3
Rated power	55.4 kw / 54 kw @2200 rpm
Conveyor
Conveyor type	One splitted, reversible conveyor with center cover
Conveyor width	620 mm
Noise emissions
Sound capacity level, L_WA	104 dB(A)
Sound pressure level at the operator's position (at the height of the head), L_AF	86 dB(A)

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Auger gear box

Type of fluid	Volume	Additional info
Dynapac Gear Oil 300	1,2 liter

Conveyor gear box

Type of fluid	Volume	Additional info
Dynapac Gear Oil 300	3 liter

Grease

Type of fluid	Volume	Additional info
Dynapac Paver Grease

Split gear box

Type of fluid	Volume	Additional info
Dynapac Gear Oil 300	4,5 liter

Service Kits

Auger wear part kit

Category	Subcategory	P/N	Additional info
Paving	City pavers	4812017339

Conveyor chain kit

Category	Subcategory	P/N	Additional info
Paving	City pavers	4812227023

Conveyor drive kit

Category	Subcategory	P/N	Additional info
Paving	City pavers	4812017324

Conveyor guide kit

Category	Subcategory	P/N	Additional info
Paving	City pavers	4812017328

Conveyor guide roller kit

Category	Subcategory	P/N	Additional info
Paving	City pavers	4812017327

Conveyor plate kit

Category	Subcategory	P/N	Additional info
Paving	City pavers	4812017331

Conveyor wear part kit

Category	Subcategory	P/N	Additional info
Paving	City pavers	4812017330	Wear part kit conveyor chain cover

Hopper rubber kit, reinforced, hydr. front flap

Category	Subcategory	P/N	Additional info
Paving	City pavers	4812017364

Hopper rubber kit; standard

Category	Subcategory	P/N	Additional info
Paving	City pavers	4812017361
Paving	City pavers	4812018543	From Serial number 0G001835 ->

Service kit 1000h

Category	Subcategory	P/N	Additional info
Paving	City pavers	4812017353	Maintenance kit 1000h

Service kit 500h

Category	Subcategory	P/N	Additional info
Paving	City pavers	4812009772	Maintenance kit 500h without engine oil
Paving	City pavers	4812017346	Maintenance kit 500h with engine oil

Spare parts manuals

Eager to see the spare parts of Dynapac F1250CS PLUS?
