Dynapac F1250CS

Dynapac F1250CS Compact pavers

0
My comparison
  • Experience
  • Pictures

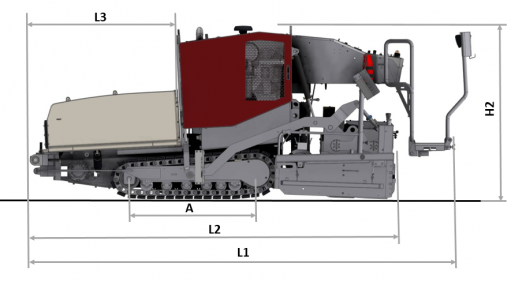

  • Dimensions
A. Axle track 1400 mm
B1. Width, max. 2820 mm
B2. Width, standard 1430 mm
B3. Width, center of tracks 940 mm
C1. Track width 200 mm
H1. Height, max.
H2. Height, transport 2020 mm
L1. Length, total 4780 mm
L2. Length, transport 4380 mm
L3. Length, hopper 1605 mm
Discontinued false
Whenever high quality results between 0.5 up to 3.5m are needed, the Dynapac F1250CS is the right choice. This powerful paver with its remarkable screed ensures a perfect mat quality, even when jobsites has challenging requirements. Equipped with the unique remote control RC 360, the paving job becomes even safer and smarter, since the the operator is not tied to the dashboard. The operator can position himself whereever suitable
Basic paving width: 1.20 m
Max. paving width: 3.50 m
Max. layer thickn.: N/A
Theor placement cap.: 300 t/h

Features & benefits

Dynapac Eco mode
Eco mode

Big fuel savings with ECO!

Dynapac Stage V tier 4f
Stage V tier 4f

header text here

Technical data

Masses
Mass (incl. standard screed) 7.0 t
Traction
Paving speed up to 27 m/min
Transport speed 3.3 km/h
Engine
Manufacturer/Model Deutz TD2.9 L4
Emissions according to EU Stage V / EPA Tier 4f
Rated power 55.4 kW (75 hp) @2200 rpm
Electrical system 2 x 24V, 72 Ah
Fuel tank capacity 85 l
Alternative Engine
Manufacturer/Model Deutz TD2.9 L4
Emissions according to EU Stage III / EPA Tier 3
Rated power 54 kW (73hp) @2200 rpm
Electrical system 2 x 24V, 72 Ah
Fuel tank capacity 85 l
Operation
Operator console Slidable left/right
Platform Extendable platform
Conveyor
Conveyor type One splitted, reversible conveyor with center cover
Conveyor width 620 mm
Conveyor control Automatic with limit switches

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Conveyor belt rail kit
Category Subcategory P/N Additional info
Paving Mobile feeders 4812009720
Conveyor guide kit
Category Subcategory P/N Additional info
Paving Mobile feeders 4812009718
Hopper rubber kit, reinforced, hydr. front flap
Category Subcategory P/N Additional info
Paving Mobile feeders 4812007263 With steel rops. Version 1
Paving Mobile feeders 4812015980 With steel rops. Version 2
Rubber pad kit
Category Subcategory P/N Additional info
Paving Mobile feeders 4812008959 For long track frame
Paving Mobile feeders 4812008960 For short track frame
Scraper kit
Category Subcategory P/N Additional info
Paving Mobile feeders 4812009723
Service kit 1000h
Category Subcategory P/N Additional info
Paving Mobile feeders 4812046970 TIER 4
Paving Mobile feeders 4812046969 TIER 3
Service kit 500h
Category Subcategory P/N Additional info
Paving Mobile feeders 4812042198 TIER 4
Paving Mobile feeders 4812043984 TIER 4
Paving Mobile feeders 4700691229 TIER 3
Paving Mobile feeders 4812043983 TIER 3

Spare parts manuals

Eager to see the spare parts of Dynapac F1250CS?

Please Log in or Register to MyDynapac to get access.

Equipment (Standard and options)

Standard

2 front & 2 rear lights, Conventional electrics, , Dashboard with display and toggle switches, Eco Mode, Extendable steps operator platform, Hopper hydraulic separate control, Auger height adjustm., Conveyor reversible (splitted)with limit switches, Ultrasonic sensors auger

Optional

Back-up alarm, Reduction shoes (0.5 working width), Working widths (3.1m + 3.5m), Emulsion spray equipment with pump and hose dispenser, Fire extinguisher, First aid kit, 4x LED lights, Light for auger compartment, Bio degradable hydraulic oil, Remote steering device, Rotating flashing beacon, Heatable side shields, Special painting,
