Paving

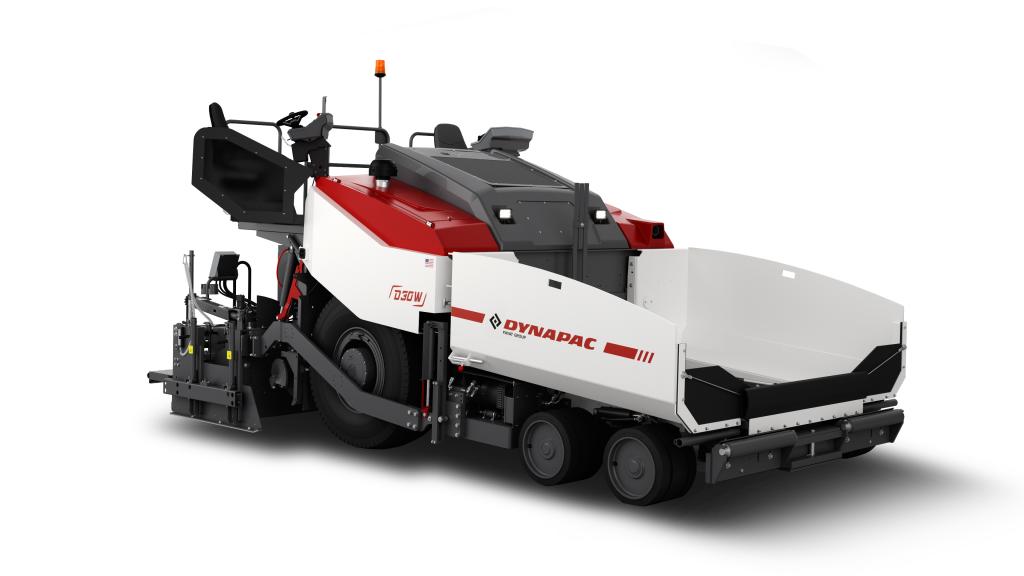

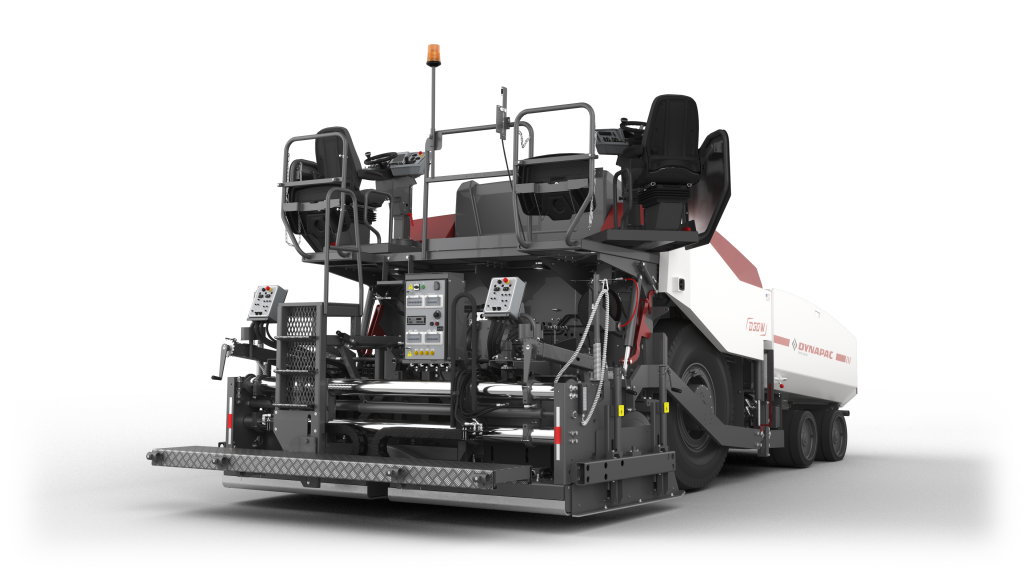

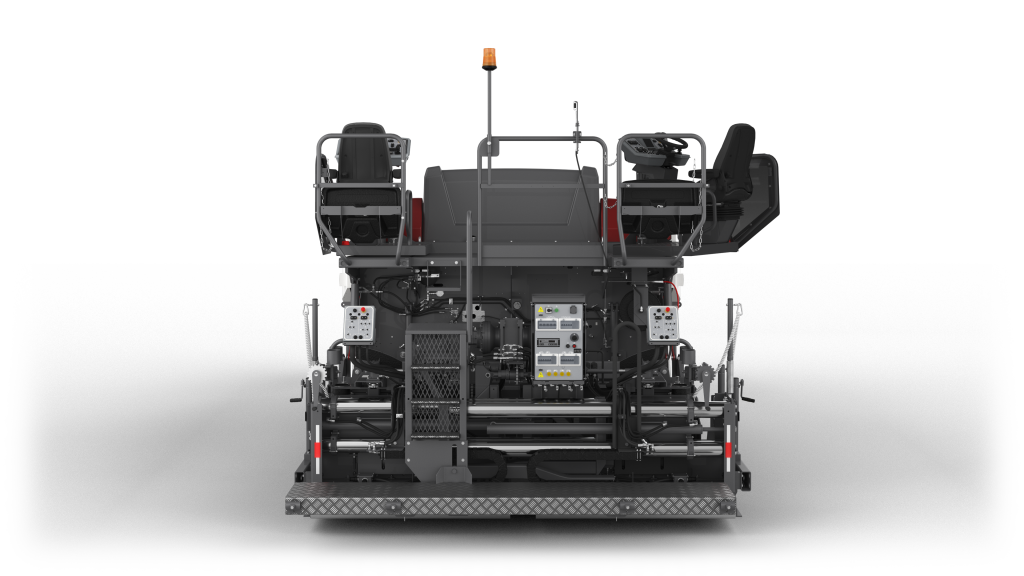

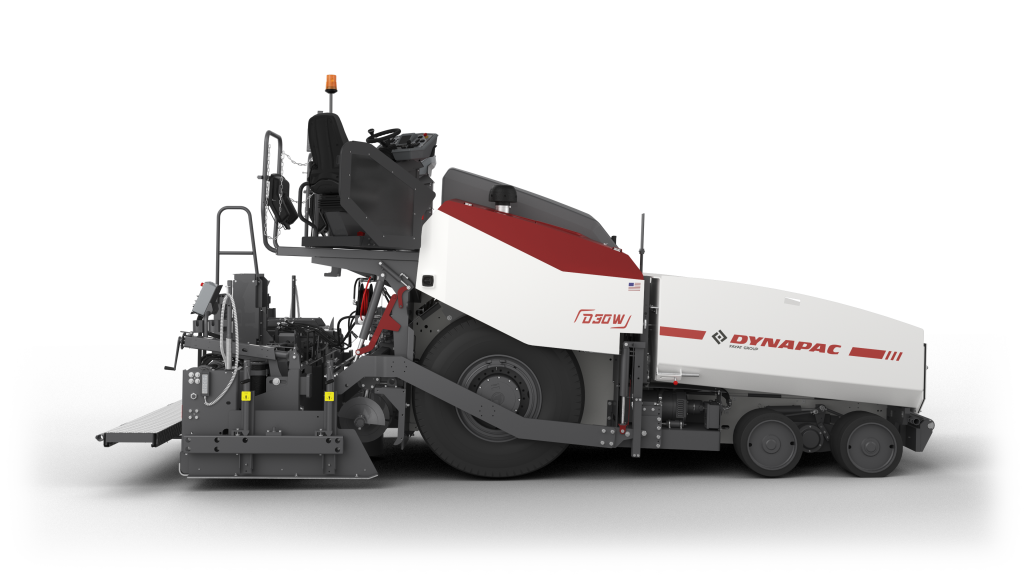

Dynapac D30W US Highway pavers

0
My comparison
  • Experience
  • Pictures

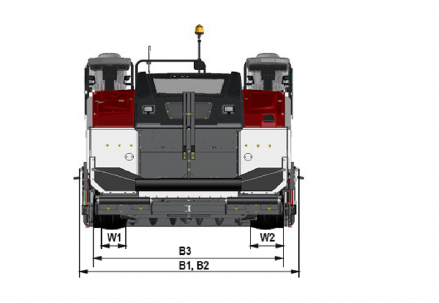

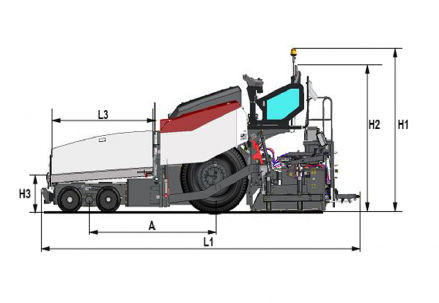

  • Dimensions
A. Wheelbase 2819 mm
B1. Width, max. 3378 mm
B2. Width, standard 3378 mm
B3. Width, wheel track 2896 mm
H1. Height, max. 3429 mm
H2. Height, transport 3073 mm
H3. Height 546 mm
L1. Length 7163 mm
L3. Length, hopper 2438 mm
W1.Width,front wheels 406 mm
W2.Width,rear wheels 508 mm
Discontinued false
Basic paving width: 3.05 m
Max. paving width: 9.14 m
Max. layer thickn.: 305 mm
Theor placement cap.: N/A

Technical data

Masses
Weight 15.33 t
Tractor weight including Mat Master screed 18.91 t
Engine
Manufacturer/Model Cummins QSB 6.7
Rated power 168 kW @ 2200 rpm
Emissions according to Tier 4f
Electrical system 12V/130 Amp
Fuel tank capacity 265 l
Operation

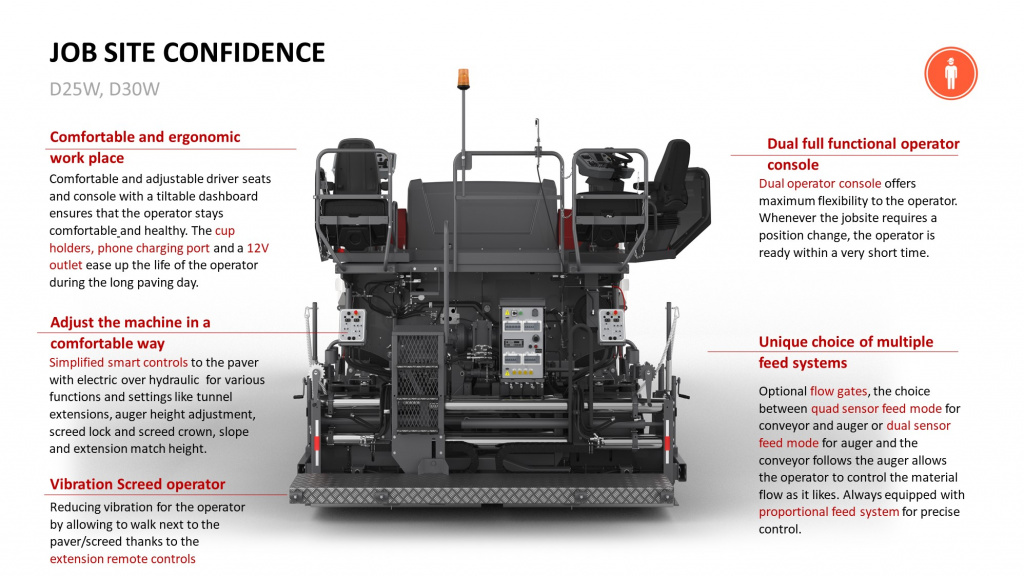

Operator console Dual Swing out operator consoles
Dashboard 2 fully functional tractor consoles with display
Conveyor
Conveyor type Dual bar feeder
Conveyor width 2 x 565 mm
Conveyor control 2 independent conveyors with proportional speed control
Reversible Yes

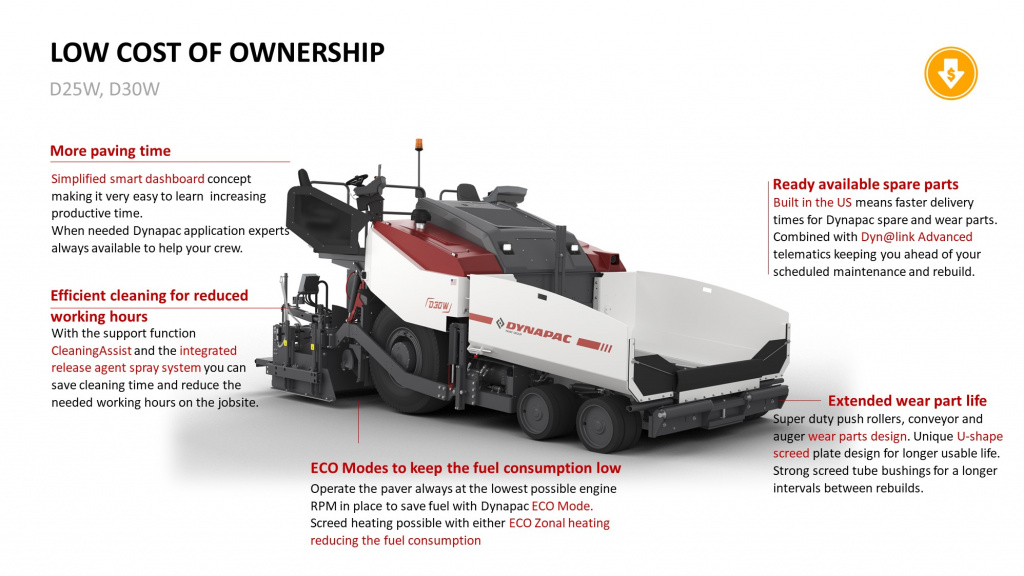

Sales arguments

  • Lower TCO with rugged design and extended wear parts life
  • Award winning Mat Master screed for high quality results
  • Simplified smart paving with Dynapac PaveManager
  • Dynamic Suspension control (DSC) for excellent traction

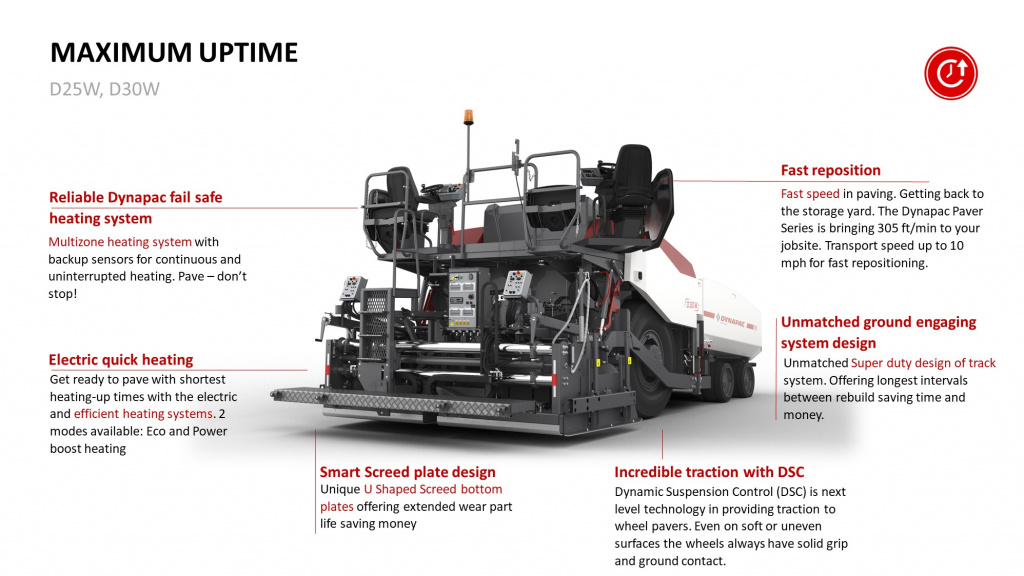

  • Innovative solutions for non-stop paving (Safe Impact, Fail Safe heating)
  • Designed and built in USA for North American Market

Fluids

Drum oil
Type of fluid Volume Additional info
Dynapac Drum Oil 1000 3,5 l P/N
5 l can 4812156456
Engine
Type of fluid Volume Additional info
Dynapac engine Oil 200 5,1 l P/N
5 l can 5580020624
20 l can 5501522700
Hydraulic oil tank
Type of fluid Volume Additional info
Dynapac Hydraulic 300 12 l P/N
20 l can 9106230330
209 l drum 9106230331

Service Kits

Driving lights kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700388698
Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945711
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945710
Scraper kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940671
Seat belt kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700378942 SPRING LOADED SCRAPERS (CC900)
Service kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812160159 Start up kit (CC900 s/n 10000358x0A012889-)
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940210
COMPACTION Double drum vibratory rollers 4812160151 (CC900 s/n 10000358x0A012889-) No. Oil
COMPACTION Double drum vibratory rollers 4812160152 (CC900 s/n 10000358x0A012889-) Inc. oil
Service kit , 250H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812160397 (CC900 s/n 10000358x0A012889-) No. Oil
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940209
COMPACTION Double drum vibratory rollers 4812160098 (CC900 s/n 10000358x0A012889-) No. Oil
COMPACTION Double drum vibratory rollers 4812160099 (CC900 s/n 10000358x0A012889-) Inc. oil
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940208
COMPACTION Double drum vibratory rollers 4812160096 (CC900 s/n 10000358x0A012889-) No. Oil
COMPACTION Double drum vibratory rollers 4812160097 (CC900 s/n 10000358x0A012889-) Inc. oil
Service kit , 750H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812160397 (CC900 s/n 10000358x0A012889-) No. Oil
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940664
COMPACTION Double drum vibratory rollers 4700945552
Sprinkler kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812161288 50 pieces.
COMPACTION Double drum vibratory rollers 4812161289 100 pieces.
COMPACTION Double drum vibratory rollers 4812161290 200 pieces.
Steering hitch kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945928

Schematics

Eager to see the schematics of Dynapac D30W?

Please Log in or Register to MyDynapac to get access.
