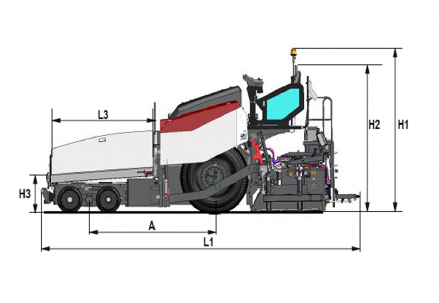

| A. Wheelbase | 2096 mm |
|---|---|

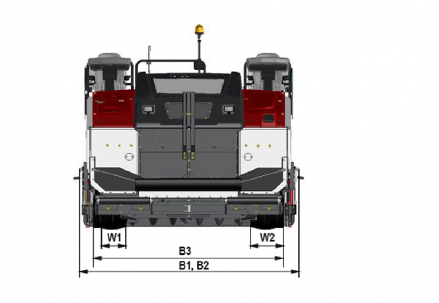

| B1. Width, max. | 3520 mm |
| B2. Width, standard | 2756 mm |
| B3. Width, wheel track | 2446 mm |
| H1. Height, max. | 3503 mm |
| H2. Height, transport | 3048 mm |
| H3. Height | 521 mm |
| L1. Length | 6452 mm |
| L3. Length, hopper | 1793 mm |
| W1.Width,front wheels | 305 mm |
| W2.Width,rear wheels | 457 mm |
| Masses | |
| Weight | 13.33 t |
|---|---|
| Tractor weight including Mat Master screed | 16.21 t |
| Engine | |
| Manufacturer/Model | Cummins QSB 4.5 |
| Rated power | 129 kW @ 2200 Rpm |
| Emissions according to | Tier 4f |
| Electrical system | 12 V / 130 Amp |
| Fuel tank capacity | 227 l |
| Operation | |

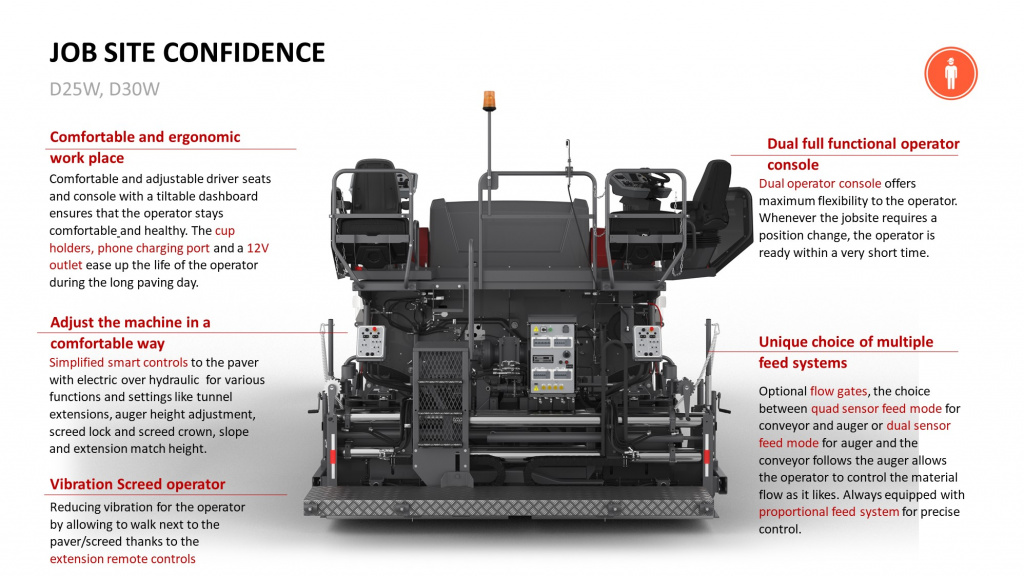

| Operator console | Dual swing out operator consoles |
| Dashboard | 2 fully functional tractor consoles with display |
| Conveyor | |
| Conveyor type | Dual bar feeder |
| Conveyor width | 2 X 552 mm |
| Conveyor control | 2 independent conveyors with proportional speed control |
| Reversible | Yes |
