Paving

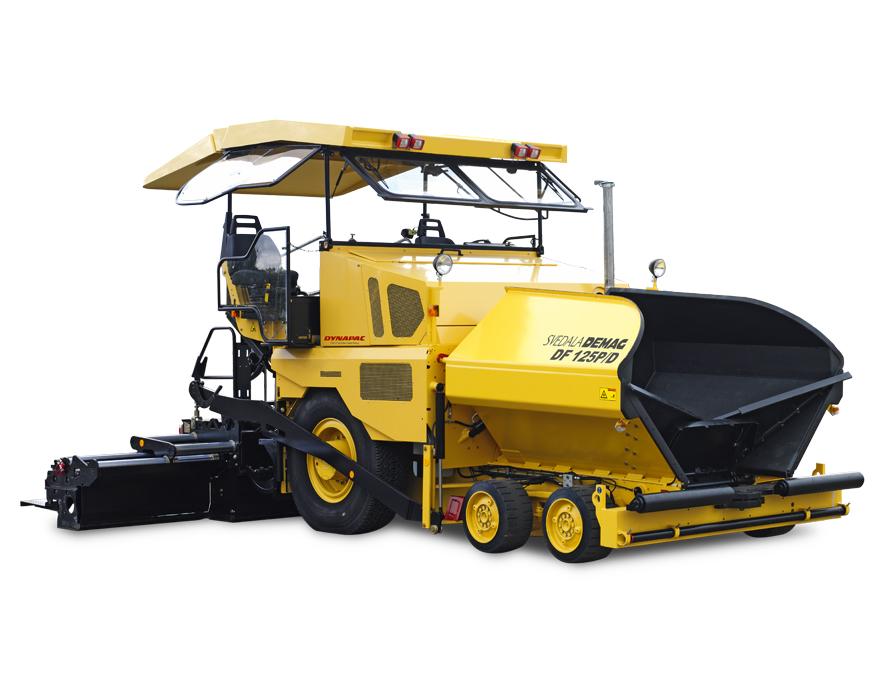

DF125P/D Wheeled pavers

0
My comparison
  • Pictures
  • Dimensions
H4. Dumping height
K. Ground clearance
L2. Length, hopper
Discontinued true
Together with the introduction of Dynapac´s new DF115P/D with direct drive and two shift planetary gearbox a new member of this wheeled paver range – the DF125P/D - has been released recently. The hydraulically direct driven paver is equipped with a 6-cylinder Deutz (140kW) engine and is being offered together with the new Dynapac screed EB51 to be able to manage working width of maximum 8,10m. By selection of this new engine type the DF125P/D complies with the latest exhaust emission regulations EU 3A as well as Tier 3.
Basic paving width: 2.55 m
Max. paving width: 8.10 m
Max. layer thickn.: 300 mm
Theor placement cap.: 600 t/h

Technical data

Masses
Weight 17 t
Traction
Paving speed 0 - 29 m/min
Maximum paving speed m/s
Transport speed 19.50 km/h
Engine
Manufacturer Deutz
Model TCD2013L06V
Manufacturer / Model Deutz TCD2013L06V
Rated power 140 kW
Rated power 190.0 hp
Rated power @ 1800 rpm
Rated power 140 kW (190.0 hp ) @ 1800 rpm
Emissions according to EU 3A / Tier 3
Electrical system 24V
Alternative Engine
Manufacturer / Model
Conveyor
Conveyor type Dual bar feeder
Conveyor width 600 mm

Fluids

Auger gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 1,2 liter
Drive axle (differential)
Type of fluid Volume Additional info
Dynapac Gear Oil 300 11,5 liter
Grease
Type of fluid Volume Additional info
Dynapac Paver Grease
Split gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 1,2 liter
Dynapac Gear Oil 300 4,5 liter

Service Kits

Auger wear part kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4700679585
Paving Wheeled pavers D880182701 Left side
Paving Wheeled pavers D880182801 Right side
Conveyor chain kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4700679584
Paving Wheeled pavers 4700679658 Double amount of bars
Conveyor guide kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4700679593
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4700679745
Service kit , 1000H
Category Subcategory P/N Additional info
Paving Wheeled pavers 4700688673 BF4M 1012
Paving Wheeled pavers 4700688673 BF4M 1012
Paving Wheeled pavers 4700690728 BF4M 1012 COM2
Service kit , 500H
Category Subcategory P/N Additional info
Paving Wheeled pavers 4700688672 BF4M 1012
Paving Wheeled pavers 4700688672 BF4M 1012
Paving Wheeled pavers 4700690727 BF4M 1012 COM2

Schematics

Eager to see the schematics of DF125P/D?

Please Log in or Register to MyDynapac to get access.
