Paving

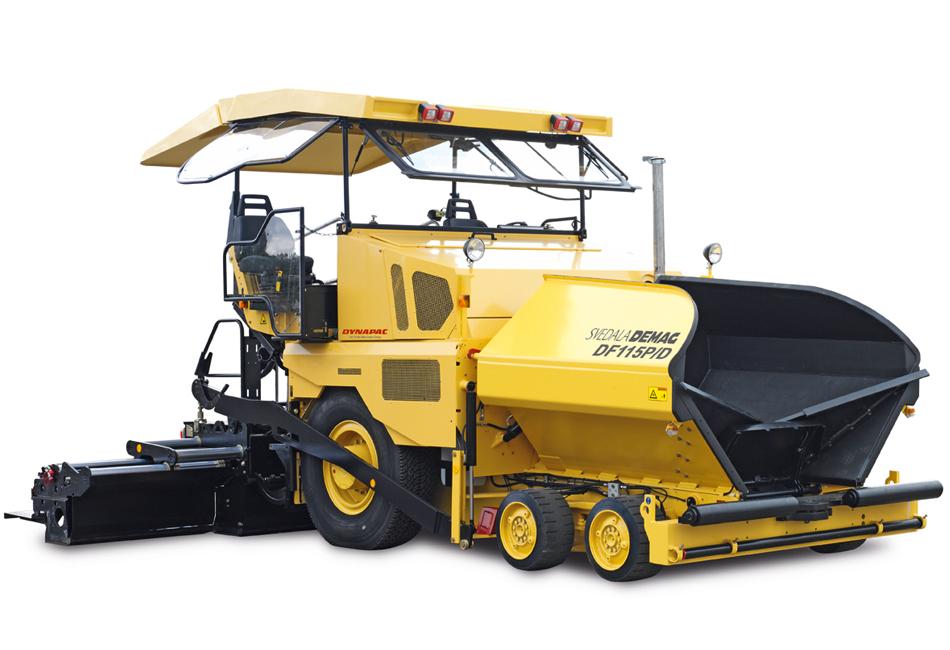

DF115P/D Wheeled pavers

0
My comparison
  • Pictures
  • Dimensions
H4. Dumping height
K. Ground clearance
L2. Length, hopper
Discontinued true
With the highly manoeuverable DF115P/D of the wheeled paver range Dynapac has released a new direct drive system on the 2,55m basic width range. The machine is equipped with a two speed planetary gearbox for choice of working speed and travelling speed (19,5km/h / 11,8 mph). Available with a six wheel drive and standard anti slip system and diffential lock this machine can cope with working widths of max. 7,30 m.
Basic paving width: 2.55 m
Max. paving width: 7.30 m
Max. layer thickn.: 300 mm
Theor placement cap.: 600 t/h

Technical data

Masses
Weight 17 t
Traction
Paving speed 0 - 29 m/min
Maximum paving speed m/s
Transport speed 19.5 km/h
Engine
Manufacturer Deutz
Model TCD2013L06V
Manufacturer / Model Deutz TCD2013L06V
Rated power 120 kW
Rated power 163.0 hp
Rated power @ 1800 rpm
Rated power 120 kW (163.0 hp ) @ 1800 rpm
Emissions according to EU 3A / Tier 3
Electrical system 24V
Alternative Engine
Manufacturer / Model
Conveyor
Conveyor width 600 mm
Conveyor control Proportional speed control, both sides driven independently

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Auger gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 1,2 liter
Conveyor gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 3 liter
Drive axle (differential)
Type of fluid Volume Additional info
Dynapac Gear Oil 300 18 liter
Grease
Type of fluid Volume Additional info
Dynapac Paver Grease
Split gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 4,5 liter

Service Kits

Auger wear part kit
Category Subcategory P/N Additional info
Paving Wheeled pavers D299000509
Paving Wheeled pavers 4729900146 Left side
Paving Wheeled pavers 4729900147 Right side
Conveyor chain kit
Category Subcategory P/N Additional info
Paving Wheeled pavers D299000199 Double quantity of bars
Conveyor guide kit
Category Subcategory P/N Additional info
Paving Wheeled pavers D299000200
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Wheeled pavers D299000198
Service kit , 1000H
Category Subcategory P/N Additional info
Paving Wheeled pavers D299000195 BF6M 1013, Bio oil, displacement pump
Paving Wheeled pavers 4729900169 BF6M 1013, Displacement pump
Paving Wheeled pavers D299000223 BF6M 1013, constant pump
Paving Wheeled pavers D299000459 BF6M 2012 - COM2
Paving Wheeled pavers D299000463 BF6M 2012 - COM2
Paving Wheeled pavers 4700691335 TCD 2013 L06V - COM3, bio oil
Service kit , 500H
Category Subcategory P/N Additional info
Paving Wheeled pavers 4729900165 BF6M 1013, Bio oil, displacement pump
Paving Wheeled pavers 4729900165 BF6M 1013, Displacement pump
Paving Wheeled pavers 4729900165 BF6M 1013, constant pump
Paving Wheeled pavers D299000460 BF6M 2012 - COM2
Paving Wheeled pavers D299000460 BF6M 2012 - COM2
Paving Wheeled pavers 4700691336 TCD 2013 L06V - COM3, bio oil
Wear part kit - Conveyor drive
Category Subcategory P/N Additional info
Paving Wheeled pavers D299000421
Paving Wheeled pavers D299000440 without sprockets

Schematics

Eager to see the schematics of DF115P/D?

Please Log in or Register to MyDynapac to get access.
