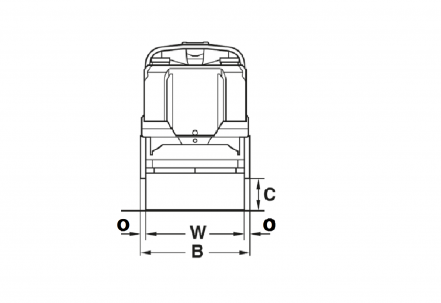

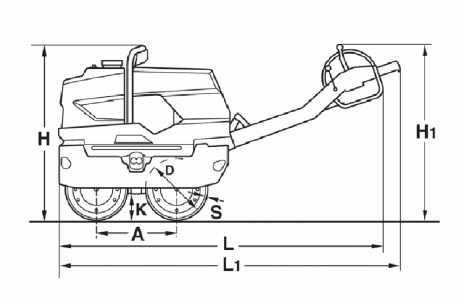

| A. Wheelbase | 500mm |
|---|---|
| B. Width | 720mm |
| C. Clearance | 210mm |
| D. Drum diameter | 400mm |
| H. Height | 1100mm |
| H1. Height | 1700mm |
| K. Ground clearance | 155mm |
| L. Length | 2030mm |
| L1. Length | 2130mm |
| O. Overhang | 35mm |
| S. Drum shell thickness | 8mm |
| W. Drum width | 650mm |
| Masses | |
| Operating mass | 720 kg |
|---|---|
| Basic mass | 685 kg |
| Axle load, avg. | 360 kg |
| Traction | |
| Speed 1, forward | 5.90 km/hr |
| Speed 2, forward | 2.50 km/hr |
| Max. gradeability without vibr. | 40 % |
| Max. gradeability with vibr. | 35 % |
| Engine | |
| Manufacturer / Model | Honda GX390 |
| Number of cylinders | 1 |
| Fuel tank capacity | 6.1 l |
| Fuel consumption l /h, avg | 2.4 l |
| Emissions according to | StageV/CARB III |
| Power | 8.2 kW @ 3000 rpm |
| Type | Air cooled, Petrol |
| Water tank capacity | 60 l |
| Hydraulic system | |
| Driving | Hydrostatic |
| Vibration | Hydrostatic |
| Service brake | Hydrostatic |
| Parking brake | Hydromechanical front+rear |
| Type of fluid | Volume | Additional info | |
|---|---|---|---|
| Auger Grease | 3 KG | P/n 4812041939 (0,75 KG cartridge) |
| Type of fluid | Volume | Additional info | |
|---|---|---|---|
| Auger Grease | 3 KG | P/n 4812041939 (0,75KG cartridge) |
| Type of fluid | Volume | Additional info | |
|---|---|---|---|
| Dynapac Engine Oil 100 | 8,5 liter | P/n 1615595400 (20l can) TIER 3 |
|
| Dynapac Engine Oil 200 | 8,5 liter | P/n 1630047200 (20l can) TIER 4 |
|
| Type of fluid | Volume | Additional info | |
|---|---|---|---|
| Dynapac Hydraulic 300 | 90 liter | P/n 9106230321 (20l can) |
|
| Dynapac Hydraulic 120 | 90 liter | P/n 9106230323 (20l can) Bio oil |
|
| Type of fluid | Volume | Additional info | |
|---|---|---|---|
| Dynapac Gear Oil 100 | 2,1 liter | P/n 4812008271 (5l can) |
|
| Type of fluid | Volume | Additional info | |
|---|---|---|---|
| Dynapac Gear Oil 100 | 2 liter (1 liter each side) | P/n 4812008271 (5l can) |
|
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Compact pavers | 4812045977 | Auger extension shaft l.h. | |
| Paving | Compact pavers | 4812045978 | Auger extension shaft r.h. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Compact pavers | 4812009770 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Compact pavers | D299000827 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Compact pavers | 4812009764 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Compact pavers | D299000828 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Compact pavers | 4812009758 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Compact pavers | 4812009766 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Compact pavers | 4812013128 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Compact pavers | 4812013164 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Compact pavers | 4812009691 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Compact pavers | 4812009775 | Tier 3 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Compact pavers | 4812009686 | Tier 4 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Compact pavers | 4812009772 | Tier 3 |
