Compact Equipment

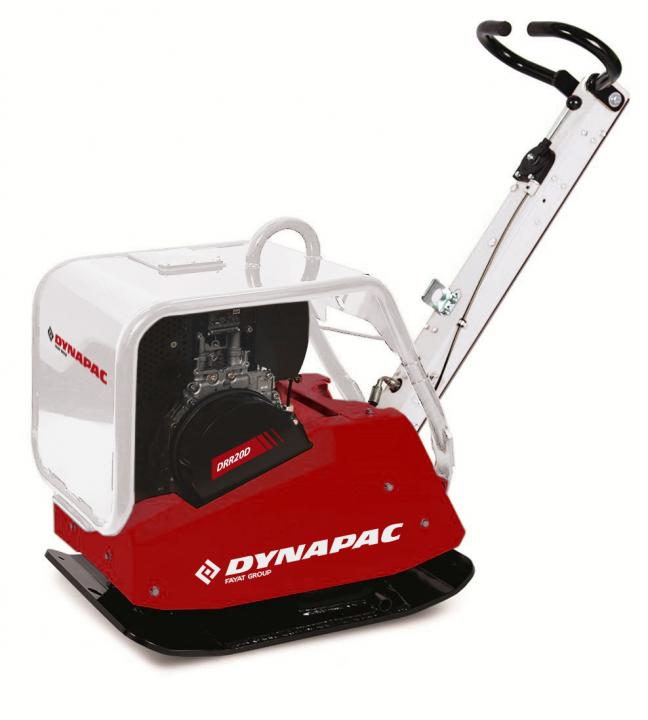

Dynapac DRR20D Reversible plates

0
My comparison
  • Pictures
  • Dimensions
H. Height 750mm
H1. Height 1140mm
H2. Height 1150mm
L. Length 1230mm
L1. Length 710mm
W. Basic plate width 500mm
Discontinued false
{phrase:operating_weight}: 196 kg
{phrase:compaction_force}: 30 kN
Compaction Width: N/A

Technical data

Masses
Basic mass 191 kg
Operating mass 196 kg
Operating mass (W2) kg
Traction
Max. gradeability 20 %
Max. working speed 20 m/min
Engine
Manufacturer/Model Hatz 1B20
Emissions according to EU Stage V / non US EPA
Rated power kW
Type Air cooled diesel
Number of cylinders 1
Fuel consumption l /h, avg 0 l
Power 3.3 kw @ 3450 rpm

Equipment (Standard and options)

Standard


■ Control handle with vibration isolation
■ Control lever lock in transport position
■ Reverse drive protection
■ Highly wear resistant base plate
■ All around protection hood
■ All around protection for V-belt
■ One point lift
■ Recoil starter

Optional


■ Block paving mat
■ Service Kit
