Compact Equipment

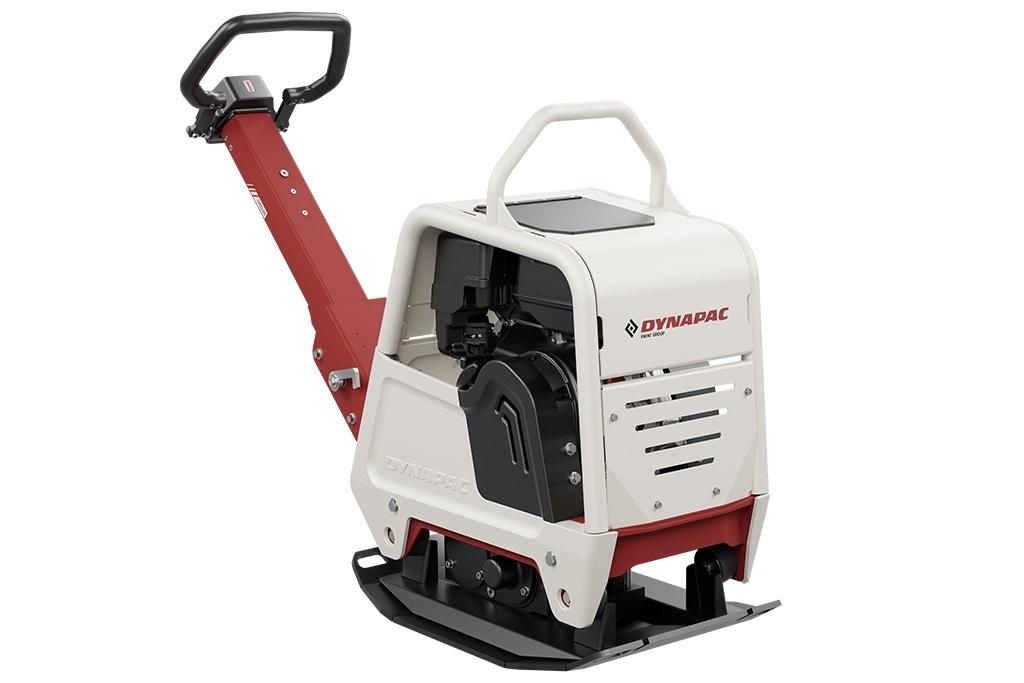

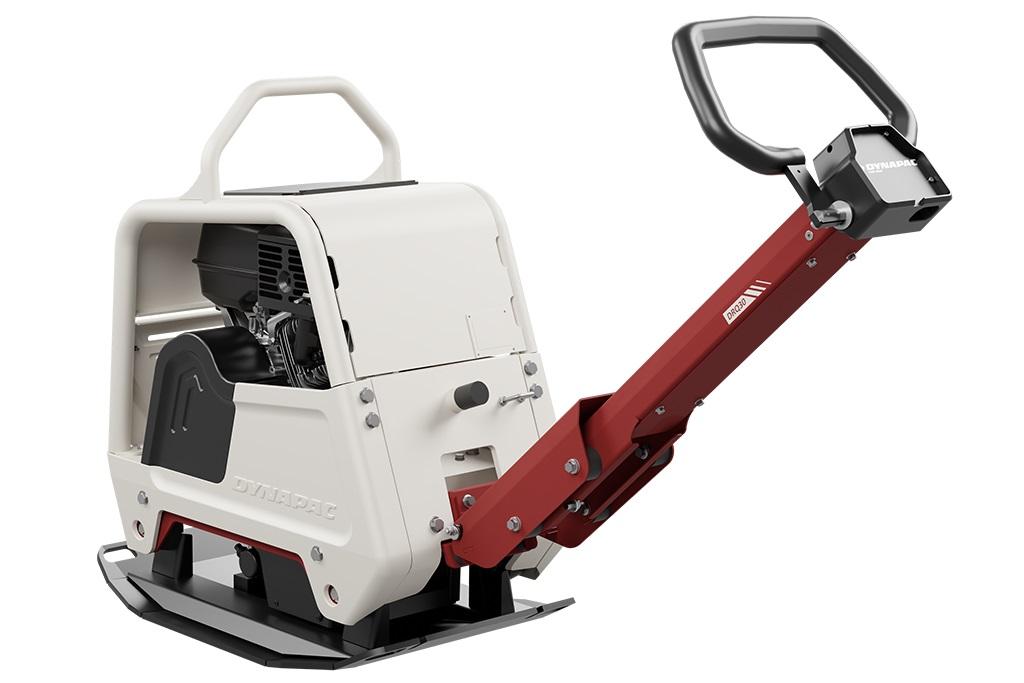

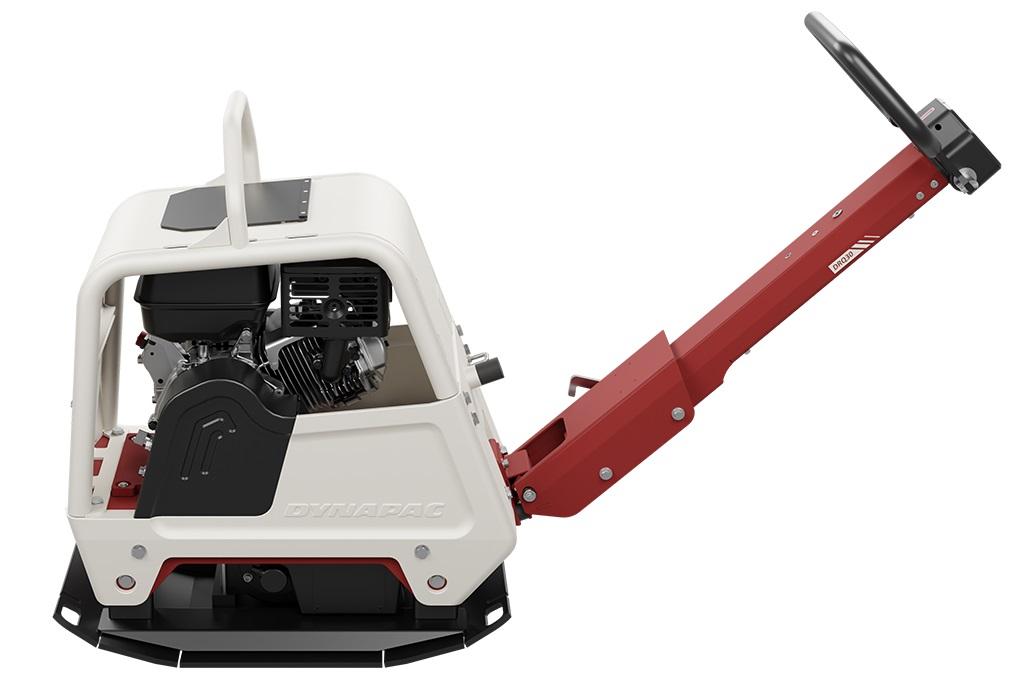

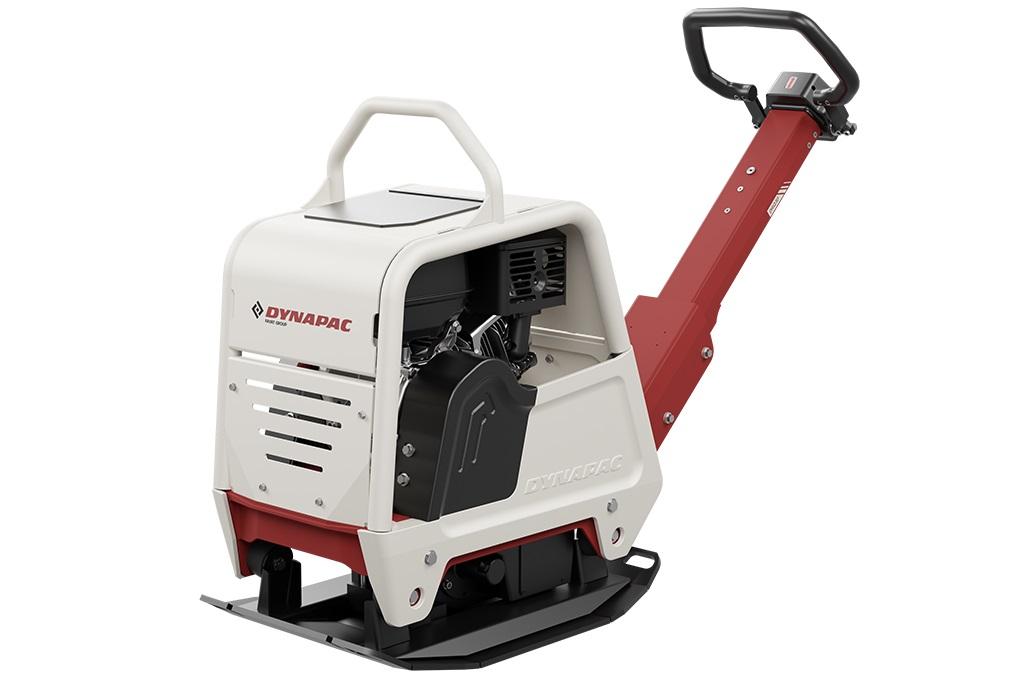

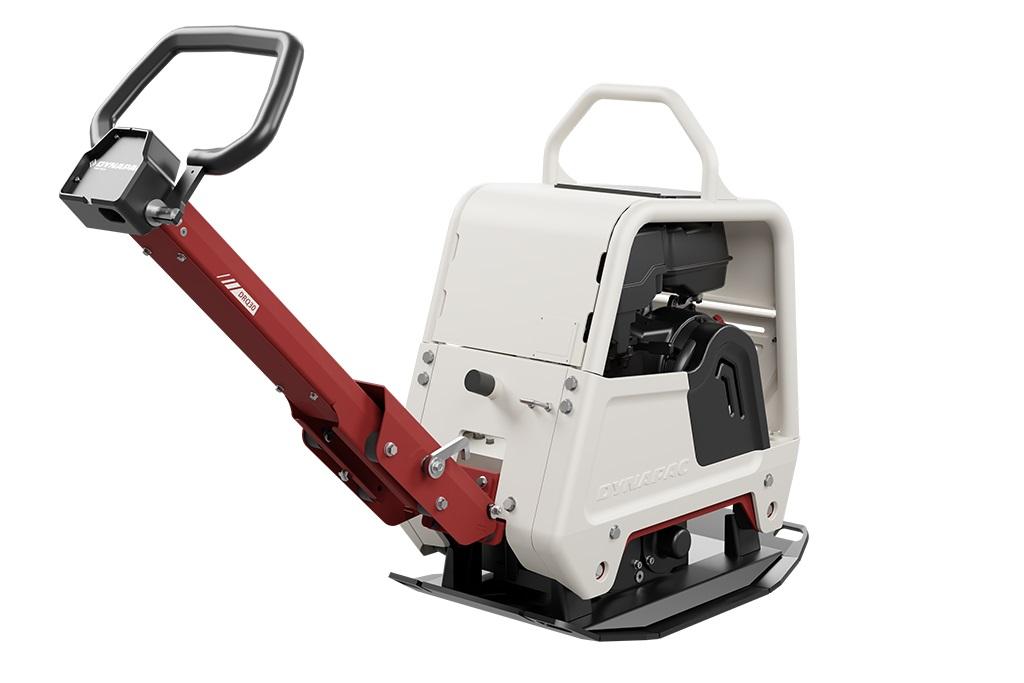

Dynapac DRQ30 Reversible plates

0
My comparison
  • Pictures

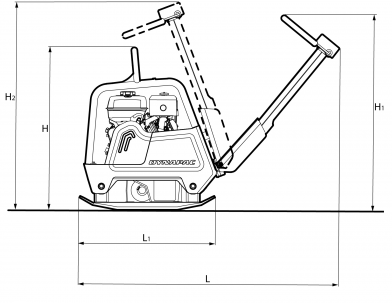

  • Dimensions
H. Height 935 mm
H1. Height 1110 mm
H2. Height 1200 mm
L. Length 1540 mm
L1. Length 785 mm

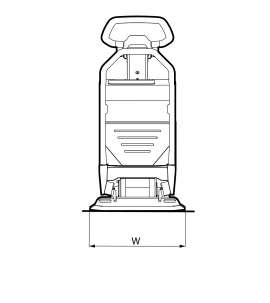

W. Basic plate width 550 mm
Discontinued false
{phrase:operating_weight}: 282 kg
{phrase:compaction_force}: 40 kN
Compaction Width: 550 mm

Technical data

Masses
Basic mass 280 kg
Operating mass 282 kg
Traction
Max. gradeability 20 %
Max. working speed 25 m/min
Engine
Manufacturer / Model Honda GX270
Emissions according to StageV & US EPA
Type Air cooled,Petrol
Number of cylinders 1
Fuel consumption /h, avg. 1.70 l
Fuel tank capacity 5.30 l
Power 6.3Kw

Sales arguments


LONGEVITY
■ Wear resistance characteristics of HARDOX maximizes the life-time of the base-plate.
■ Open-style construction of the base-plate prevents the stones from getting stuck, thus reducing the wear & tear.

DURABILITY
■ Robust all-around protection cage with solid one-point lift.

COMFORT
■ Low levels of hand arm vibration is made possible by the vibration damping solution.

PRACTICAL
■ Easy-open flaps to access daily check points like fuel tank cap, filter.

Equipment (Standard and options)

Optional

■ Block paving mat
■ Service Kit
