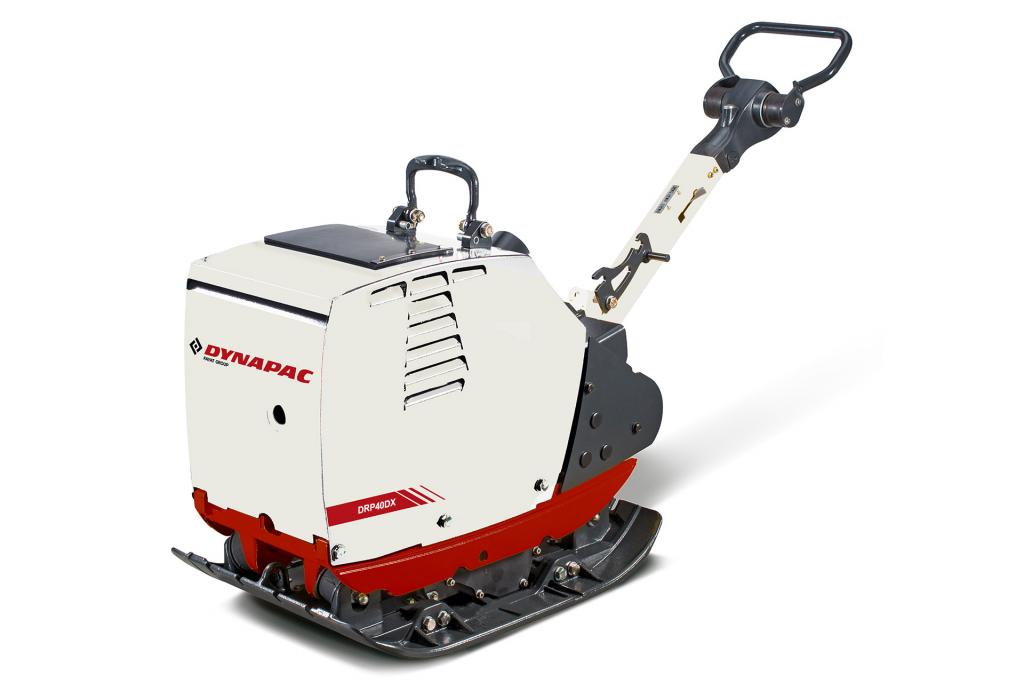

Dynapac DRP40DX Reversible plates

0
My comparison
  • Pictures

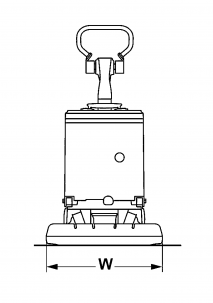

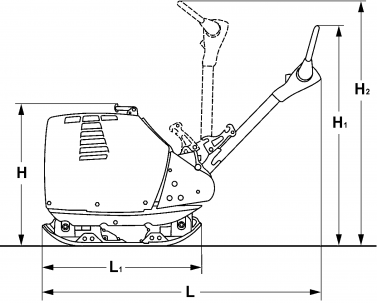

  • Dimensions
H. Height 820 mm
H1. Height 980 mm
H2. Height 1350 mm
L. Length 1700 mm
L1. Length 900 mm
W. Basic plate width 550 mm (50 + 450 + 50)
W1. Plate width, without extensions 450 mm
W2. Plate width, with extensions 750 mm (150 + 450 + 150)
Discontinued false
{phrase:operating_weight}: 405 kg
{phrase:compaction_force}: 50 kN
Compaction Width: 550 mm

Technical data

Masses
Basic mass 400 kg
Operating mass 405 kg
Operating mass (W) 405 kg
Operating mass (W1) 390 kg
Operating mass (W2) 420 kg
Traction
Max. gradeability 35 %
Max. working speed 28 m/min
Engine
Manufacturer / Model Hatz 1B 40
Number of cylinders 1
Fuel consumption /h, avg. 1.50 l
Fuel tank capacity 5 l
Power 6.7 kW @ 3000 rpm

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Auger wear part kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812027478 Auger wings Ø380mm
Paving HIGHWAY PAVERS 4812018439
Conveyor chain kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812027444 double quantity of bars
Paving HIGHWAY PAVERS 4812029178 single quantity of bars
Conveyor drive kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812035552
Conveyor guide plate kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812225799
Conveyor plate kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812016660
Reversing roller kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812035553
Rubber plate kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812035550
Service kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4700691229 Tier 3
Paving HIGHWAY PAVERS 4812043983 Tier 3 Including oil
Paving HIGHWAY PAVERS 4812046969 Tier 3, stage 2

Equipment (Standard and options)

Standard

■ Control handle - comfort - with vibration isolation
■ Height adjustable control lever
■ Control lever lock in transport and working position
■ Reverse drive protection
■ Highly wear resistant base plate
■ All around protection hood
■ All around protection for V-belt
■ Automatic decompression
■ One point lift
■ Recoil starter
■ Electric starter
■ Hour meter

Optional

■ Block paving mat
■ Extension plate
■ Service Kit
