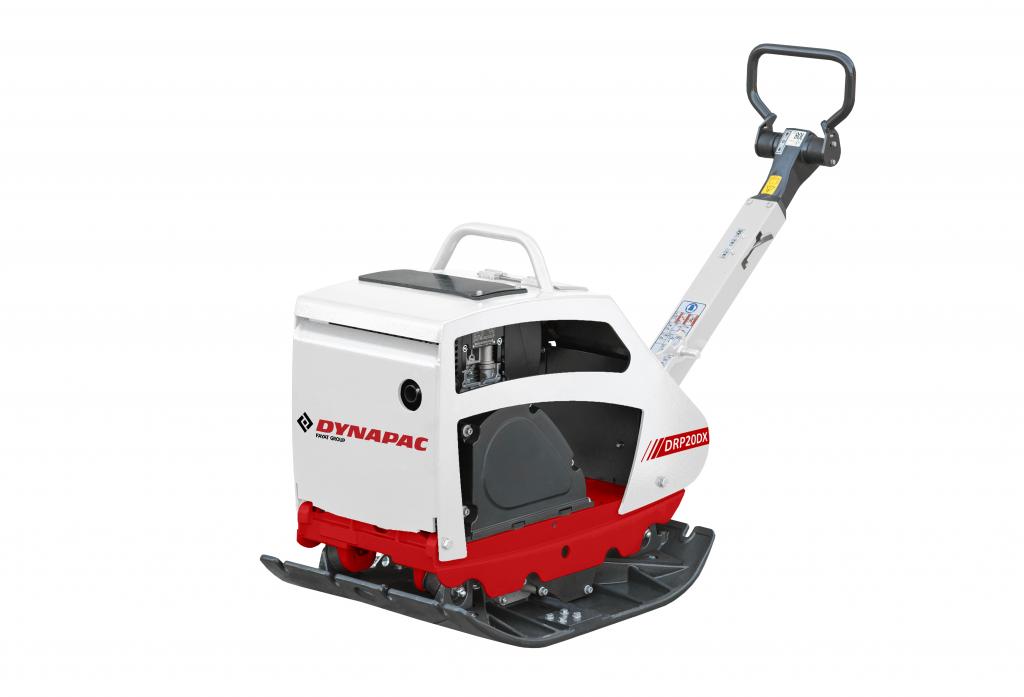

Dynapac DRP20DX Reversible plates

0
My comparison
  • Pictures

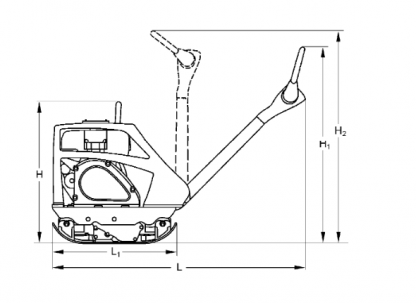

  • Dimensions
H. Height 688 mm
H1. Height 820 mm
H2. Height 1220 mm
L. Length 1510 mm
L1. Length 762 mm

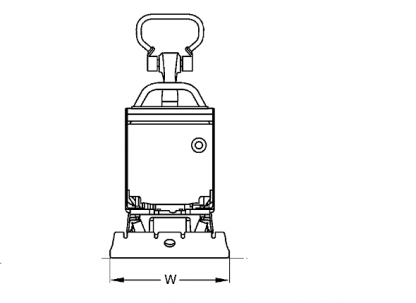

W. Basic plate width 600 mm
Discontinued false
{phrase:operating_weight}: 225 kg
{phrase:compaction_force}: 35 kN
Compaction Width: 600 mm

Technical data

Masses
Basic mass 222 kg
Operating mass 225 kg
Traction
Max. gradeability 32 %
Max. working speed 27 m/min
Engine
Manufacturer / Model Hatz 1B20
Emissions according to Stage V
Type Air cooled diesel
Number of cylinders 1
Fuel tank capacity 3 l
Power 3.1 kW @ 3000 rpm

Equipment (Standard and options)

Standard

■ Control handle with vibration isolation
■ Height adjustable control handle
■ Control handle lock in transport and working position
■ Reverse drive protection
■ Highly wear resistant base plate
■ All around protection hood
■ All around protection for V-belt
■ One point lift
■ Automatic decompression
■ Recoil starter

Optional

■ Block paving mat
■ Puncture proof transport wheels (+5kg)
■ Service Kit
