Dynapac

Compact Equipment

Dynapac DR7 Rammers

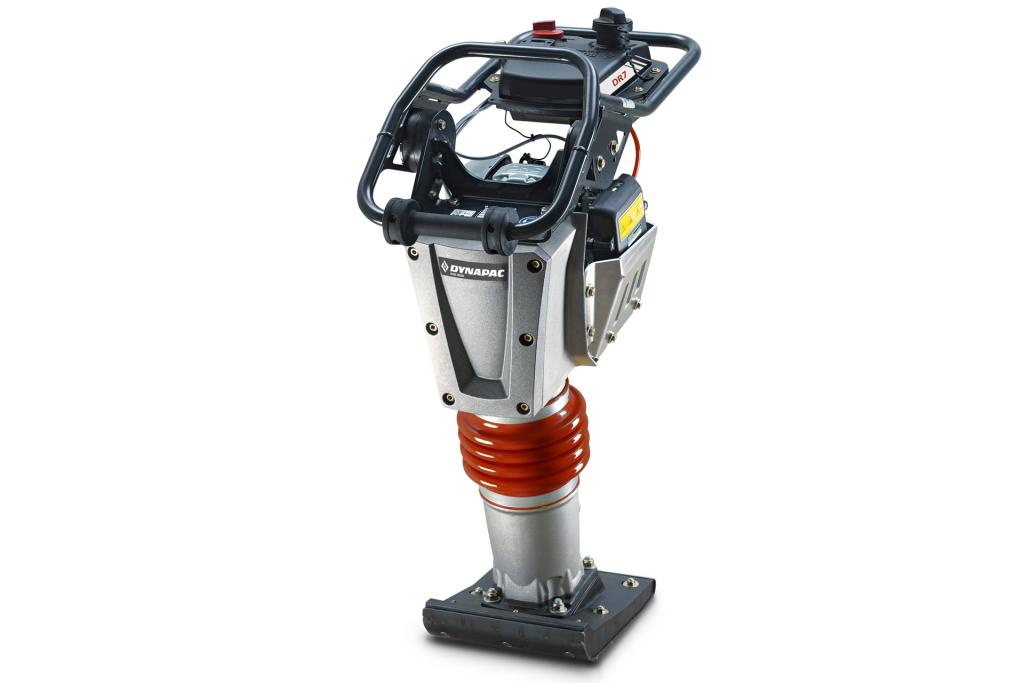

Pictures
Dimensions

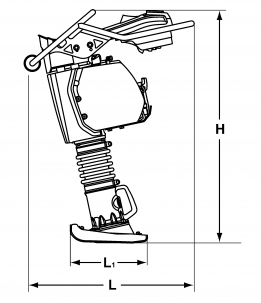

Blueprint side view Dynapac DR7

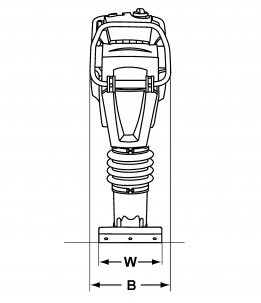

Blueprint top view Dynapac DR7

B. Width	350 mm
H. Height	1030 mm
L. Length	728 mm
L1. Length	335 mm
W. Basic shoe width	280 mm

{phrase:operating_weight}: 67 kg

{phrase:compaction_force}: N/A

Compaction Width: 280 mm

Technical data

Masses
Net mass	66 kg
Operating mass	67 kg
Traction
Max. area coverage	336 m²
Max. working speed	20 m/min
Engine
Manufacturer/Model	Honda GX 100
Number of cylinders	1
Type	Air cooled gasoline
Emissions according to	Stage V / CARB Phase lll
Fuel tank capacity	3 l
Fuel consumption /h, avg.	0.9 l

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Equipment (Standard and options)

Optional

■ Hour and rpm display
■ Puncture proof transport wheels
■ Foot widths & extensions
■ Service kit
