Compact Equipment

Dynapac DR6X e Rammers

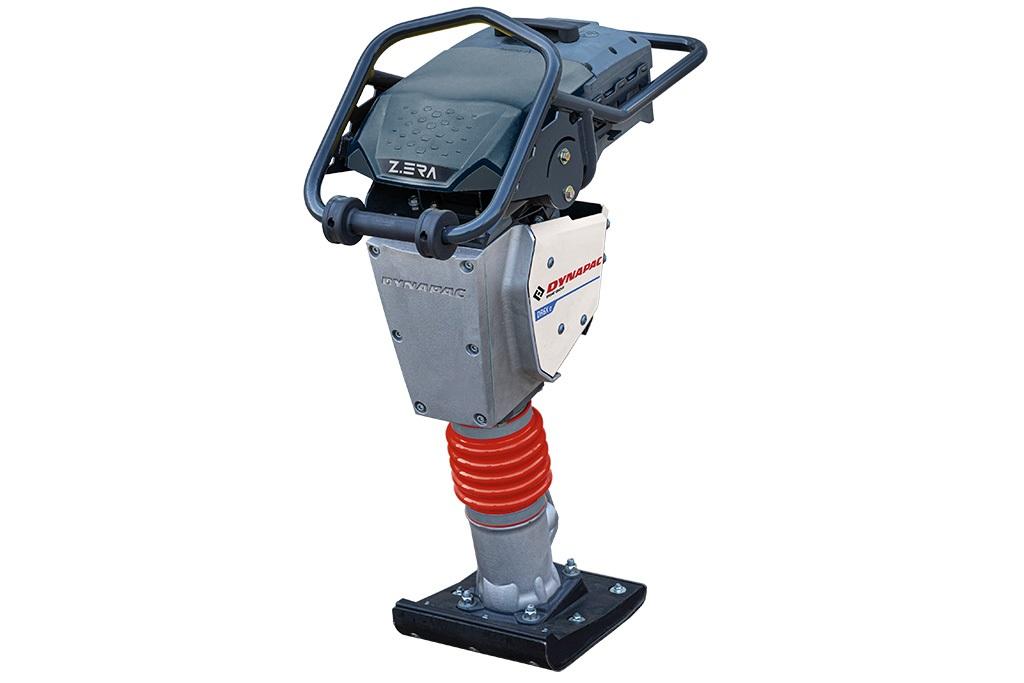

  • Pictures

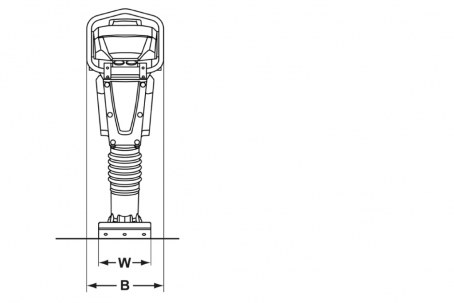

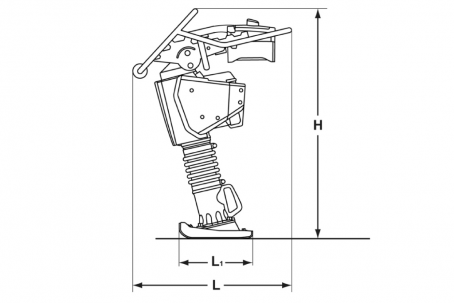

  • Dimensions
B. Width 350 mm
H. Height 1030 mm
L. Length 728 mm
L1. Length 335 mm
W. Basic shoe width 230 mm
Discontinued false
{phrase:operating_weight}: 71 kg
{phrase:compaction_force}: 15 kN
Compaction Width: 230 mm

Technical data

Masses
Net mass 61 kg
Operating mass 71 kg
Traction
Max. area coverage 276 m2 /h
Max. working speed 20 m/min
{phrase:electrical_motor}
Motor type Asynchronmotor
Motor power @ 4200 rpm 2.3 kW
{phrase:el_system}
Battery type Lithium-ion
Nominal battery voltage 51 V
IP Rating IP23

Equipment (Standard and options)

Optional

■ Additional Battery
    Batteryone BOB10
■ Additional Charger
    Batteryone BOC7
    Batteryone BOC13
■ Puncture proof transport wheels
■ Foot widths
