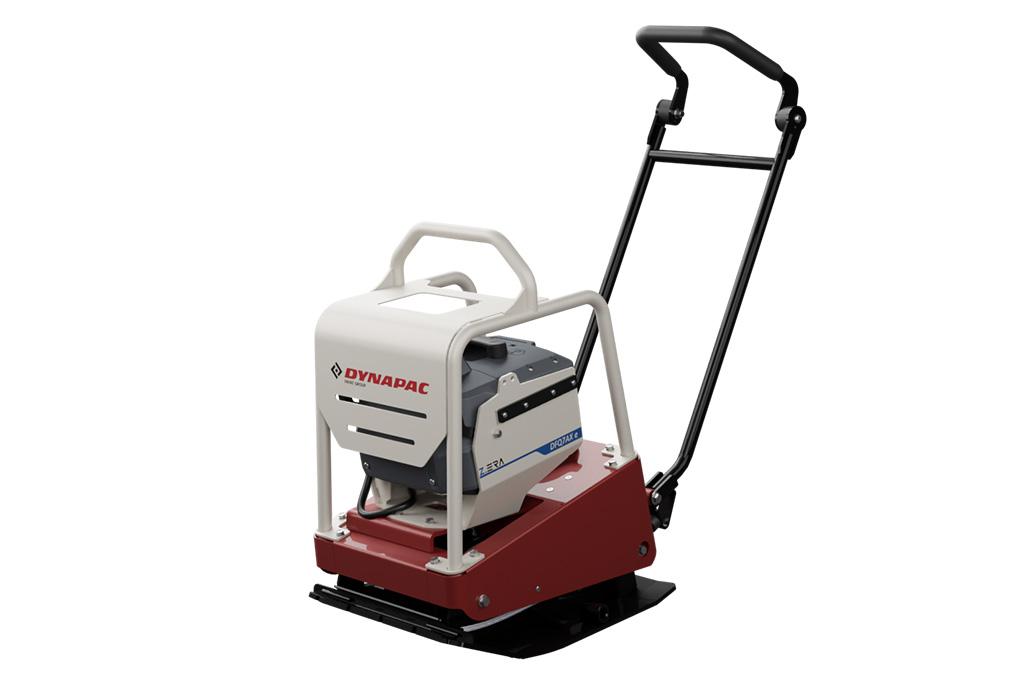

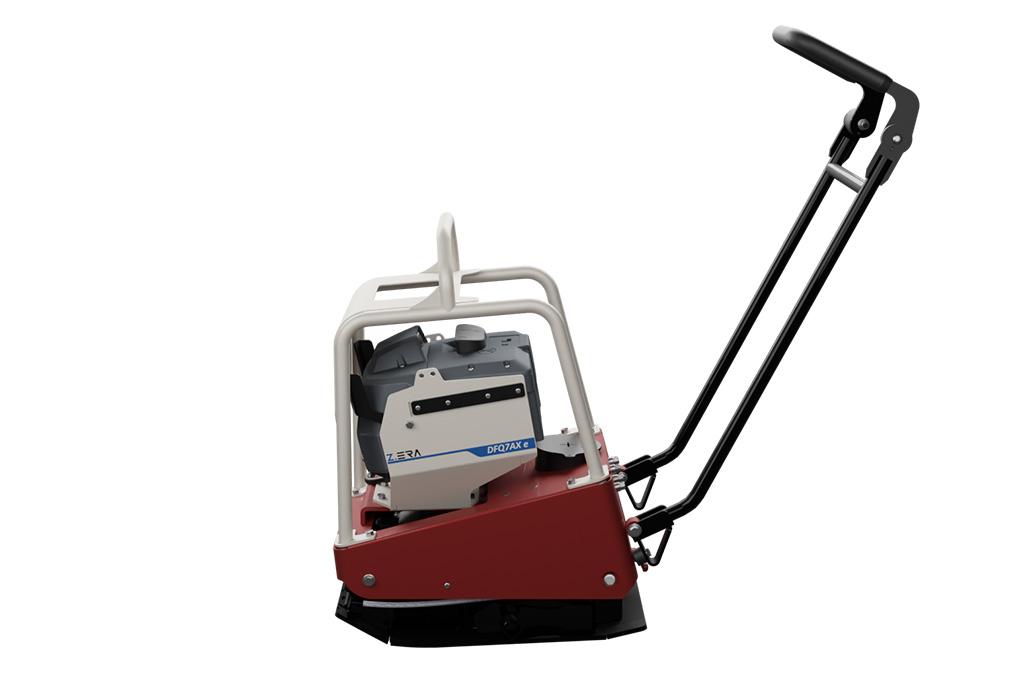

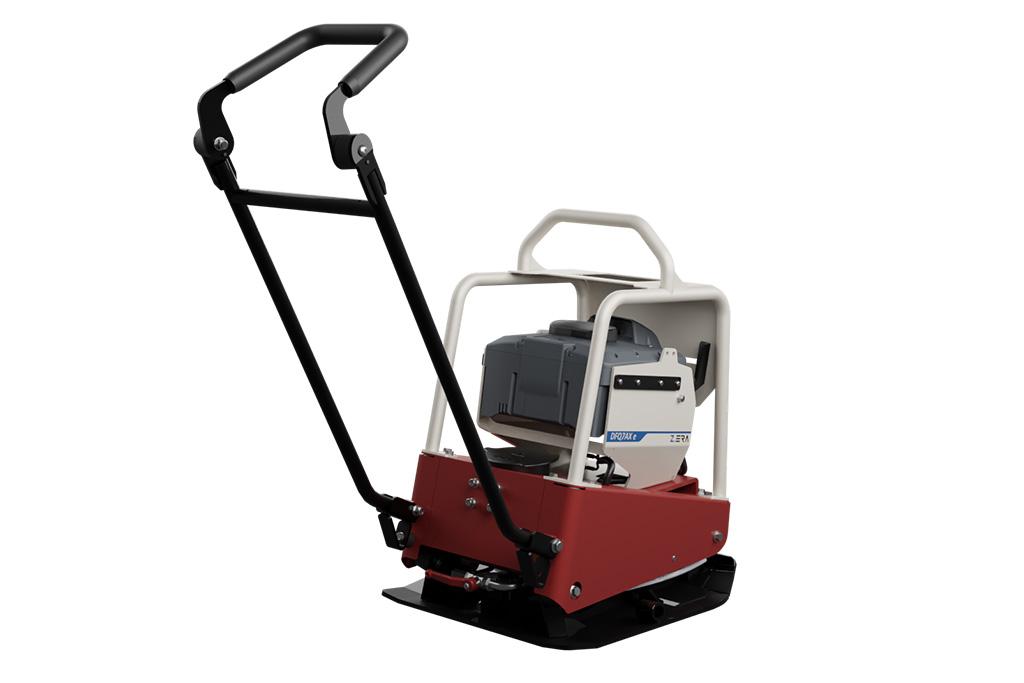

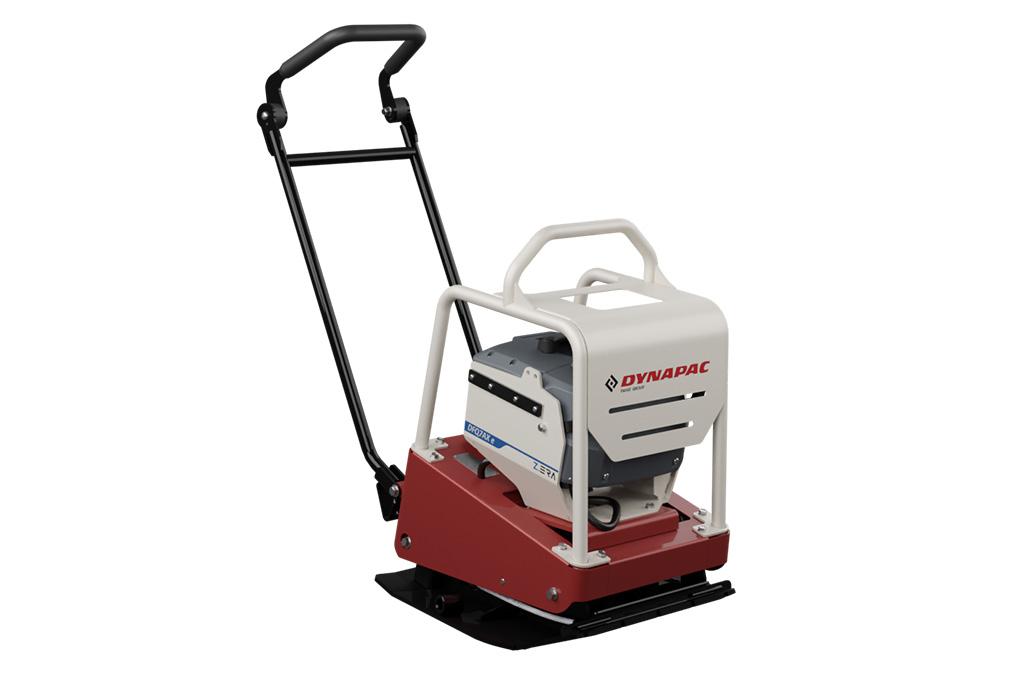

Dynapac DFQ7AX e Forward plates

0
My comparison
  • Pictures

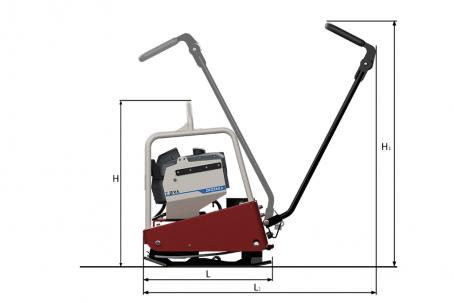

  • Dimensions
H. Height 700 mm
H1. Height 1010 mm
L. Length 600 mm
L1. Length 1052 mm

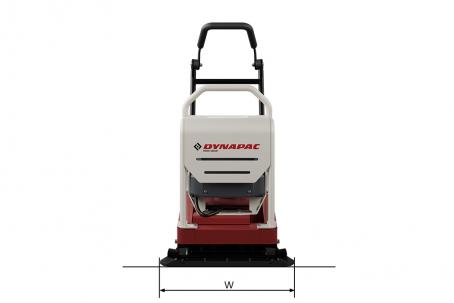

W. Basic plate width 530 mm
Discontinued false

DURABILITY
■ Robust all-around protection cage with solid one-point lift.

COMFORT
■ Low levels of hand arm vibration is made possible by the vibration damping solution.

PRACTICAL
■ Easy access to daily check points like fuel tank cap, filter.
{phrase:operating_weight}: 92 kg
{phrase:compaction_force}: 11 kN
Compaction Width: 530 mm

Technical data

Masses
Basic mass (without battery) 82.5 kg
Operating mass (BOB10) 91.8 kg
Operating mass 92 kg
Traction
Max. gradeability 46 %
Max. working speed 25 m/min
{phrase:el_system}
Battery type Lithium-ion
Nominal battery voltage 51 V
IP Rating IP23

Equipment (Standard and options)

Optional

■ Additional battery
    Battery One BOB5
    Battery One BOB10
    Battery One BOB14

■ Additional charger
    Battery One BOC7
    Battery One BOC13
■ Synthetic mat
■ Trasport wheels
