Dynapac DFP5X e Forward plates

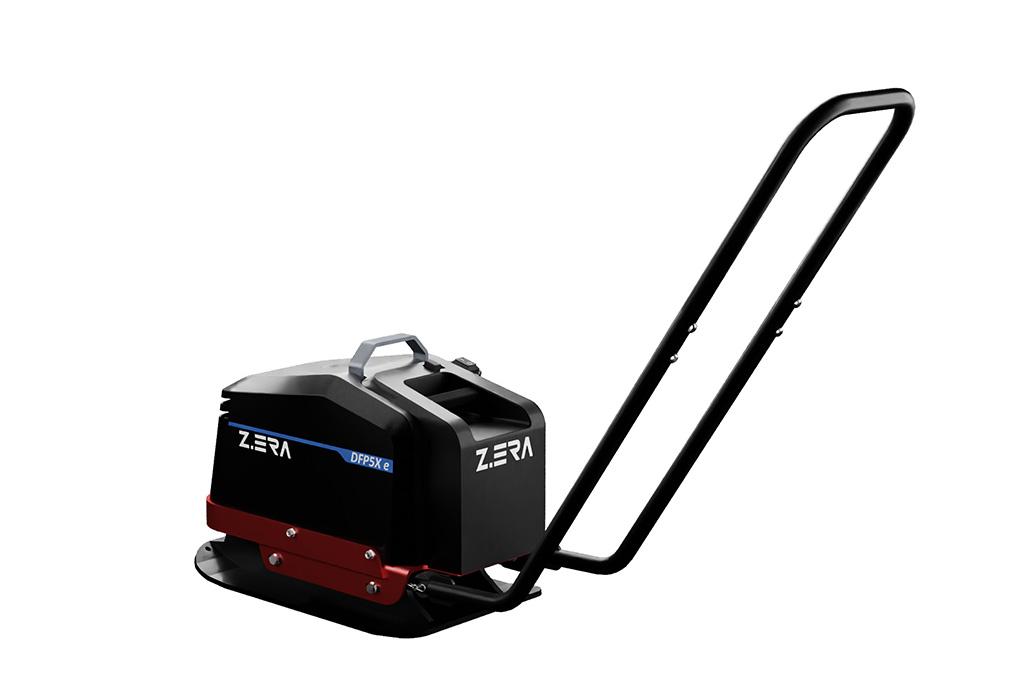

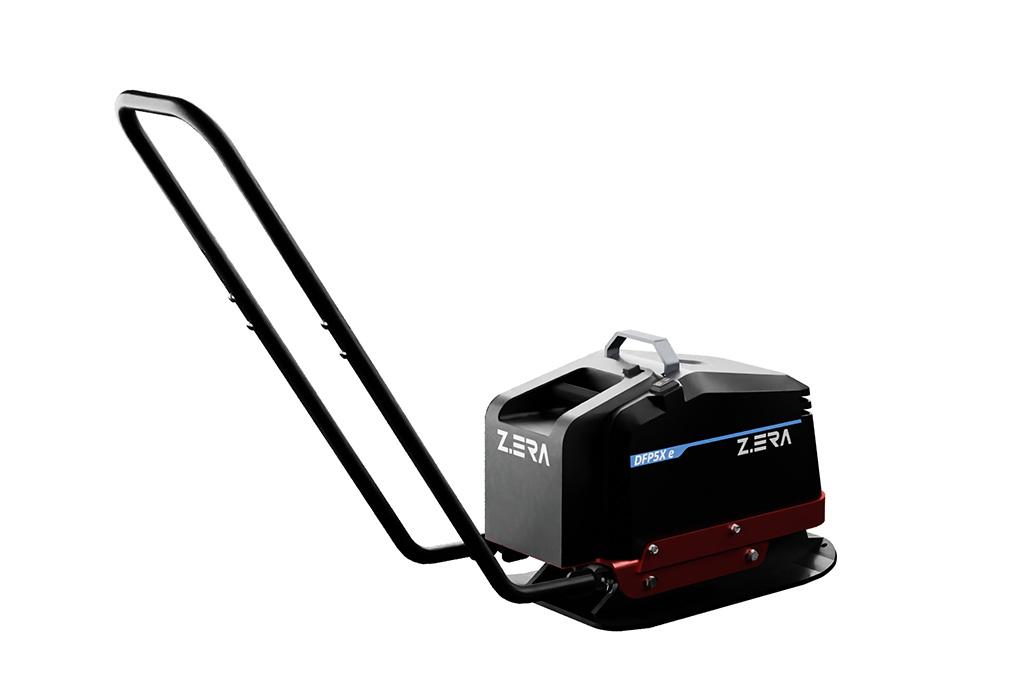

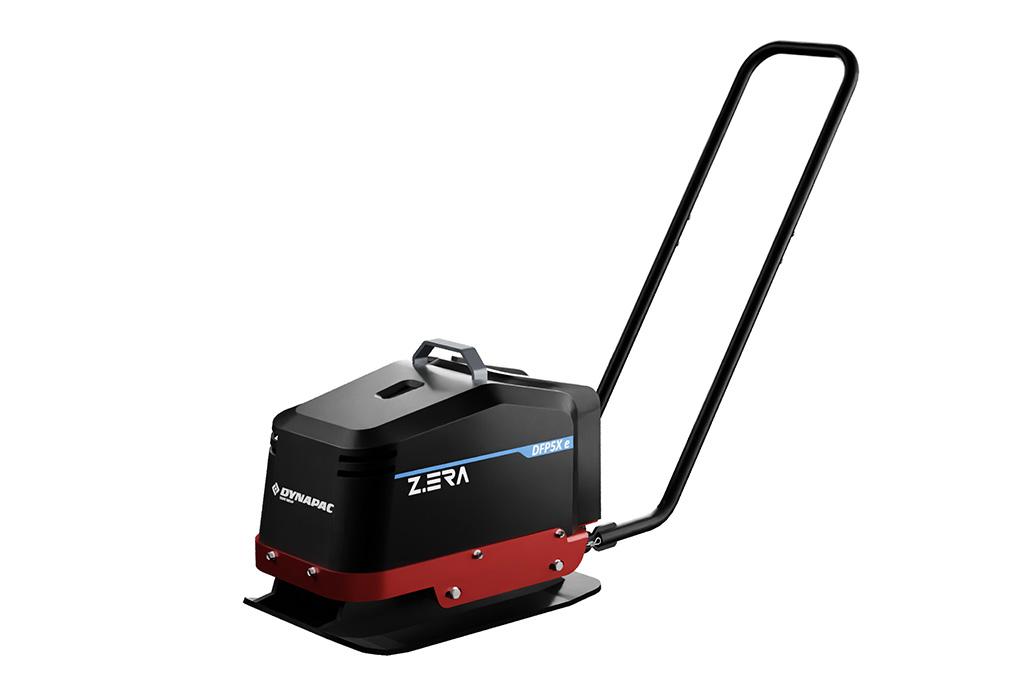

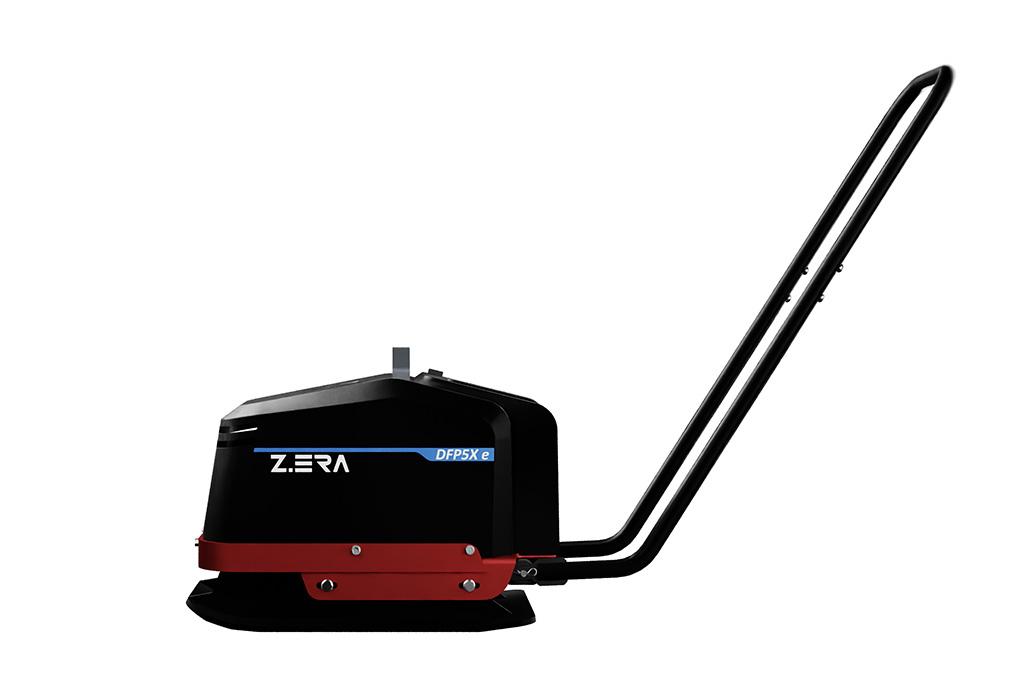

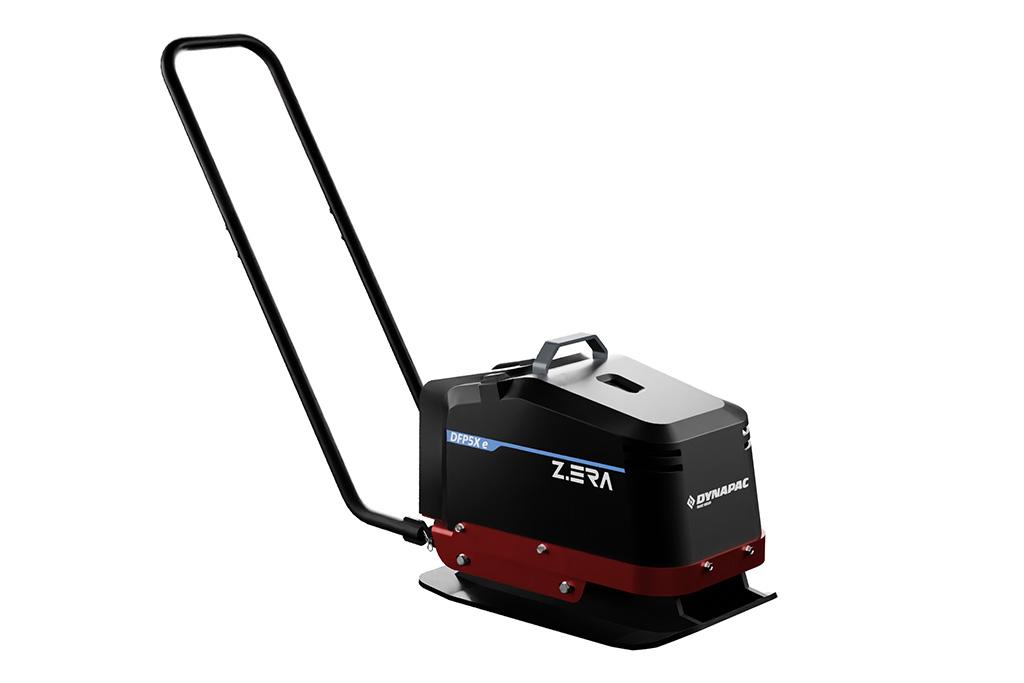

  • Pictures

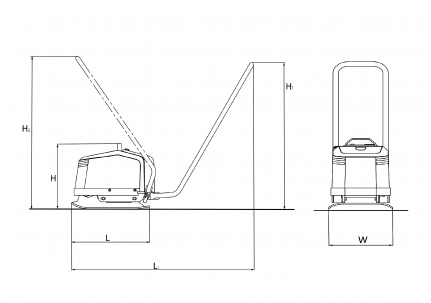

  • Dimensions
H. Height 390 mm
H1. Height 850 mm
H2. Height 840 mm
L. Length 500 mm
L1. Length 1050 mm
W. Basic plate width 300 mm
Discontinued true
{phrase:operating_weight}: 52 kg
{phrase:compaction_force}: 9 kN
Compaction Width: 300 mm

Technical data

Masses
Operating mass 52 kg
Basic mass 52 kg
Traction
Max. gradeability 46 %
Max. working speed 25 m/min
Engine
Manufacturer / Model 600 Watts IPM motor
{phrase:battery}
Charge time up to 2 hr
Run time up to 60 mins

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Equipment (Standard and options)

Standard

■ Effort free start/stop system
■ Foldable steering handle
■ Highly wear resistant base plate
■ Protection cover for power pack
■ Lifting handle
■ One point lift

Optional

■ Li-ion Battery(1000 Wh)
■ Charger (24V) with bag
■ Block paving mat
