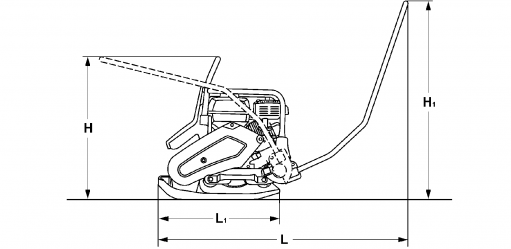

| H. Height | 708 mm |
|---|---|
| H1. Height | 962 mm |
| H2. Height | 700 mm |
| L. Length | 1084 mm |
| L1. Length | 542 mm |

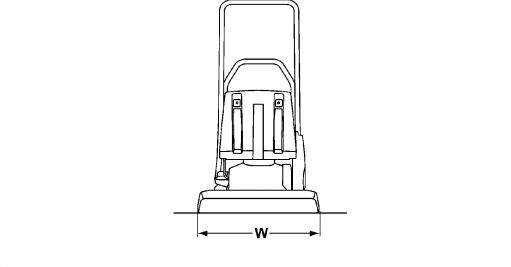

| W. Basic plate width | 500 mm |
| Masses | |
| Operating mass | 122 kg |
|---|---|
| Basic mass | 123 kg |
| Traction | |
| Max. gradeability | 30 % |
| Max. working speed | 30 m/min |
| Engine | |
| Manufacturer / Model | Hatz 1B 20 |
| Emissions according to | Stage V/non EPA |
| Type | Air cooled diesel |
| Number of cylinders | 1 |
| Fuel consumption /h, avg. | 0.7 l |
| Fuel tank capacity | 3 l |
| Power | 3.1 kW @ 3000 rpm |
| {phrase:el_system} | |
| Battery capacity (gross) | |
