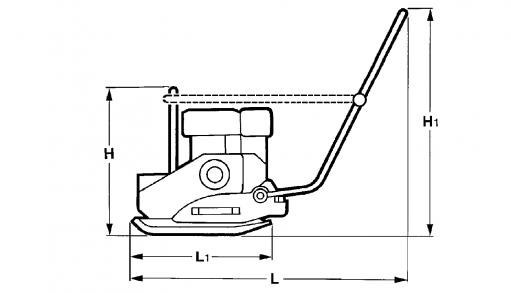

| H. Height | 658 mm |
|---|---|
| H1. Height | 962 mm |
| H2. Height | 700 mm |
| L. Length | 1084 mm |
| L1. Length | 542 mm |

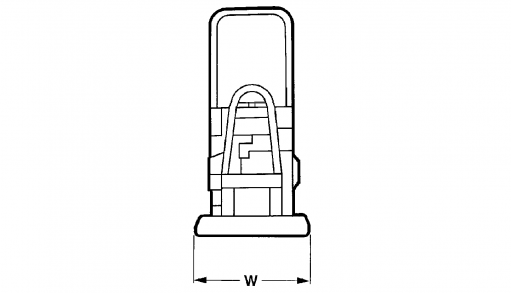

| W. Basic plate width | 500 mm |
| Masses | |
| Operating mass | 108 kg |
|---|---|
| Basic mass | 103 kg |
| Traction | |
| Max. gradeability | 30 % |
| Max. working speed | 30 m/min |
| Engine | |
| Manufacturer | Honda |
| Model | GX 160 |
| Manufacturer / Model | Honda GX 160 |
| Emissions according to | Stage V / CARB Phase lll |
| Type | Air cooled gasoline |
| Number of cylinders | 1 |
| Fuel type | Gasoline |
| Fuel consumption /h, avg. | 1.1 l |
| Fuel tank capacity | 3.1 l |
| Power | 3.6 kW at 3600 rpm |
Standard
Optional
