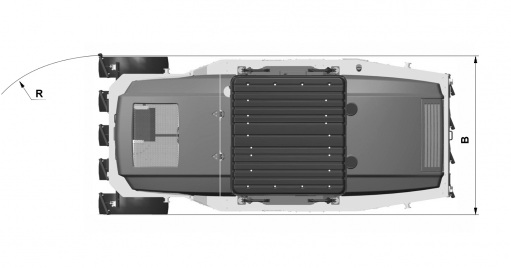

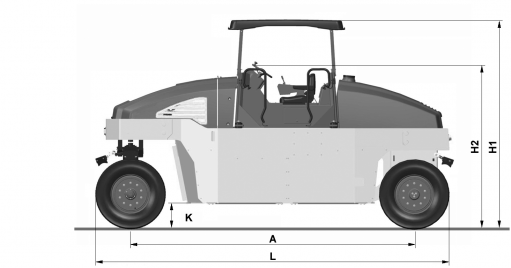

| A. Wheelbase | 4250 mm |
|---|---|
| B. Width, with symmetric cab | |
| B1. Width, with assymetric cab | |
| B1. Width, with assymmetric cab | |
| B2. Width, with symmetric cab | |
| B. Width | 2370 mm |
| H1. Height, w/o ROPS/Cab | |
| H2. Height, with folded canopy | |
| H2. Height, with ROPS/Cab | |
| H3. Height max. with ROPS/Cab | |
| K. Ground clearance | 350 mm |
| H2. Height, w/o canopy/cab | 2430 mm |
| L. Length | 5310 mm |
| O. Overlap | |
| O1. Overhang, right | |
| O2. Overhang, left | |
| R. Turning radius, outside | 9000 mm |
| H1. Height, with canopy/cab | 3080 mm |
| R. Turning radius, inside |
| Masses | |
| Operating mass (incl. Cab) | kg |
|---|---|
| Operating mass (incl. Cab) | |
| Max. operating mass | kg |
| Max. operating mass | |
| Mass with max. ballast | 30000 kg |
| Operating mass (incl. Canopy) | kg |
| Mass with max ballast (Canopy) | |
| Mass with steel ballast (Canopy) | |
| Mass with water ballast | g |
| Mass with wet sand ballast | kg |
| Operating mass | 14000 kg |
| Traction | |
| Working speed | m/s |
| Speed low | 7 km/h |
| Speed high | 18 km/h |
| Engine | |
| Manufacturer/Model | Cummins QSB4.5 |
| Alternative Engine | |
| Manufacturer/Model | Cummins QSB4.5 IIIA/T3 |
| Rated power, SAE J1995 | 97 kW (130 hp ) @ 2200 rpm |
| Type | Water cooled turbo Diesel |
| Electrical system | 24 V |
| Fuel tank capacity | 320 l |
| Alternative Engine | |
| Manufacturer/Model | Cummins QSF4.5 BS IV |
| Rated power, SAE J1995 | 104 kW (140 hp ) @ 2200 rpm |
| Type | Water cooled turbo Diesel |
| Fuel tank capacity | |
| Alternative Engine | |
| Manufacturer/Model | |
| Rated power, SAE J1995 | |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement. Axial piston motor with variable displacement. |
| Steering | Gear pump with constant displacement. |
| Service brake | Drum brakes |
| Parking/ Emergency brake |
Failsafe multidisc brakes in gear box |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 轮胎压路机 | 4812269100 | 1000H Service kit China kit (CP275 (III/T3)) | |
| COMPACTION | 轮胎压路机 | 4812269100 | 1000H start up kit CP275 (II/T2) (China-market) | |
| COMPACTION | 轮胎压路机 | 4812269108 | 1000H start up kit CP275 (II/T2) (except China-market) |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 轮胎压路机 | 4812271684 | CP275 (III/T3) | |
| COMPACTION | 轮胎压路机 | 4812268994 | CP275 (II/T2) |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 轮胎压路机 | 4812313538 | CP275 (III/T3) | |
| COMPACTION | 轮胎压路机 | 4812271623 | CP275 (II/T2) |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 轮胎压路机 | 4812271683 | CP275 (III/T3) | |
| COMPACTION | 轮胎压路机 | 4812265993 | CP275 (II/T2) |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 轮胎压路机 | 4812271682 | CP275 (III/T3) | |
| COMPACTION | 轮胎压路机 | 4812268992 | CP275 (II/T2) |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 轮胎压路机 | 4812313538 | CP275 (III/T3) | |
| COMPACTION | 轮胎压路机 | 4812271623 | CP275 (II/T2) |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 轮胎压路机 | 4812270212 | ||
| COMPACTION | 轮胎压路机 | 4812313954 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 轮胎压路机 | 4812269093 | Breake kit (except china) |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 轮胎压路机 | 4812155698 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 轮胎压路机 | 4812268159 | field kit (except china market) |
Standard
Optional
