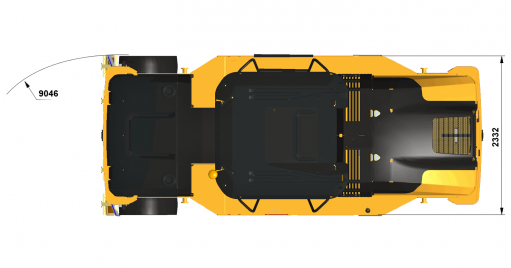

| B. Width, with symmetric cab | |
|---|---|
| B1. Width, with assymetric cab | |
| B1. Width, with assymmetric cab | |
| B2. Width, with symmetric cab | |

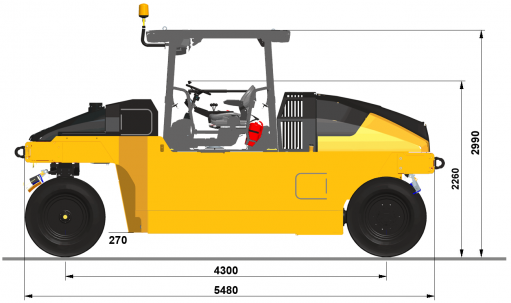

| H1. Height, w/o ROPS/Cab | |
| H2. Height, with folded canopy | |
| H2. Height, with ROPS/Cab | |
| H3. Height max. with ROPS/Cab | |
| O. Overlap | |
| O1. Overhang, right | |
| O2. Overhang, left |
| Masses | |
| Operating mass (incl. ROPS) | 12400 kg |
|---|---|
| Operating mass (incl. Cab) | kg |
| Operating mass (incl. Cab) | |
| Max. operating mass | kg |
| Max. operating mass | |
| Mass with max. ballast | 27000 kg |
| Operating mass (incl. Canopy) | kg |
| Mass with max ballast (Canopy) | |
| Mass with steel ballast (Canopy) | |
| Mass with water ballast | g |
| Mass with wet sand ballast | 20500 kg |
| Traction | |
| Working speed | m/s |
| Speed low | 7 km/h |
| Speed high | 20 km/h |
| Engine | |
| Rated power, SAE J1995 | 85 kW (110 hp ) @ 2200 rpm |
| Type | Water cooled turbo diesel |
| Fuel tank capacity | 210 l |
| Electrical system | 24V |
| Alternative Engine | |
| Manufacturer/Model | Cummins QSB 3.8 (Tier 4F) |
| Rated power, SAE J1995 | 89 kW (118 hp ) @ 2200 rpm |
| Alternative Engine | |
| Manufacturer/Model | Cummins QSB 4.5 (Tier 3) |
| Rated power, SAE J1995 | 93 kW (124 hp ) @ 2200 rpm |
| Fuel tank capacity | |
| Alternative Engine | |
| Manufacturer/Model | Cummins QSB 3.8 (Tier 4F) |
| Rated power, SAE J1995 | 97 kW (130 hp ) @ 2200 rpm |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement. Axial piston motors (2) with variable displacement. |
| Steering | Axial piston pump with variable displacement. |
| Service brake | 2 multidisc brakes on rear wheels activated by pedal. |
| Parking/ Emergency brake |
Failsafe multidisc brakes in both gear boxes. |
