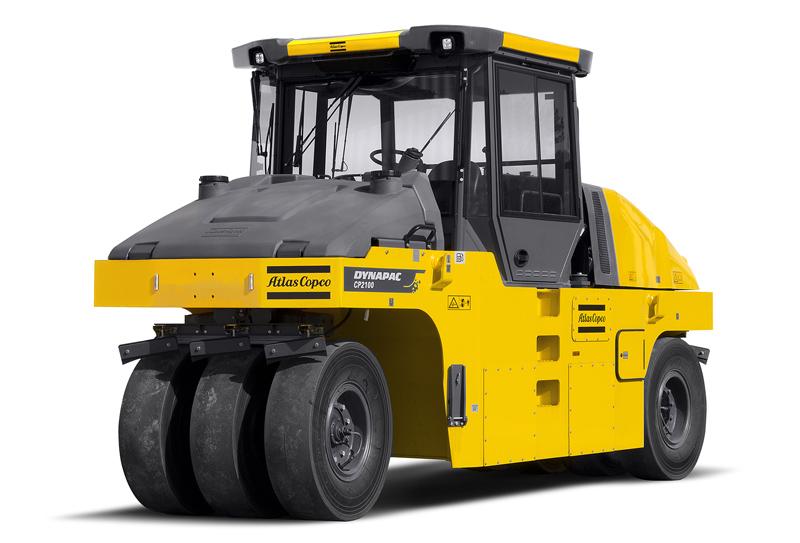

Dynapac CP2100 Pneumatic tire rollers

0
My comparison
  • Pictures

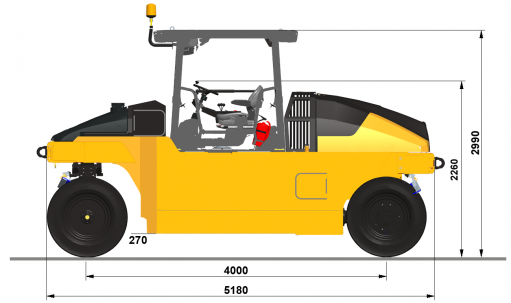

  • Dimensions
B. Width, with symmetric cab
B1. Width, with assymetric cab
B1. Width, with assymmetric cab
B2. Width, with symmetric cab
H1. Height, w/o ROPS/Cab
H2. Height, with folded canopy
H2. Height, with ROPS/Cab
H3. Height max. with ROPS/Cab
O. Overlap
O1. Overhang, right
O2. Overhang, left
Discontinued true
Operating Mass: 9840 kg
Static linear load: N/A
Compaction width: N/A

Technical data

Masses
Operating mass (incl. ROPS) 9840 kg
Operating mass (incl. Cab) kg
Operating mass (incl. Cab)
Max. operating mass kg
Max. operating mass
Mass with max. ballast 21000 kg
Operating mass (incl. Canopy) kg
Mass with max ballast (Canopy)
Mass with steel ballast (Canopy)
Mass with water ballast g
Mass with wet sand ballast 14150 kg
Traction
Working speed m/s
Speed low 9 km/h
Speed high 23 km/h
Speed high (EEC countries) 20 km/h
Engine
Rated power, SAE J1995 89 kW (118 hp ) @ 2200 rpm
Type Water cooled turbo diesel
Fuel tank capacity 210 l
Electrical system 24V
Alternative Engine
Manufacturer/Model Cummins QSB 3.3 (Tier 3A)
Rated power, SAE J1995 74 kW (99 hp ) @ 2200 rpm
Alternative Engine
Fuel tank capacity
Hydraulic system
Driving Axial piston pump with variable displacement.
Axial piston motors (2) with variable displacement.
Steering Axial piston pump with variable displacement.
Service brake 2 multidisc brakes on rear wheels activated by pedal.
Parking/
Emergency brake		 Failsafe multidisc brakes in both gear boxes.

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Pneumatic tire rollers 4812155999
Service kit , 250H
Category Subcategory P/N Additional info
COMPACTION Pneumatic tire rollers 4700939076
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Pneumatic tire rollers 4700950175
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Pneumatic tire rollers 4812155998
Service kit , 750H
Category Subcategory P/N Additional info
COMPACTION Pneumatic tire rollers 4700939076
Working lights kit
Category Subcategory P/N Additional info
COMPACTION Pneumatic tire rollers 470PP81096

Spare parts manuals

Eager to see the spare parts of Dynapac CP2100?

Please Log in or Register to MyDynapac to get access.

Compaction data

AsphaltComp infoAsphaltComp info1661ACbaseC25off470.82017-08-15 15:14:28Dynapac CP2100ACbase_CAsphalt concrete, base course; CrushedAsphalt concrete, base course1661ACbaseN25off470.82017-08-15 15:14:28Dynapac CP2100ACbase_NAsphalt concrete, base course; NaturalAsphalt concrete, base course1661ACbindC25off470.82017-08-15 15:14:28Dynapac CP2100ACbind_CAsphalt concrete, binder course; CrushedAsphalt concrete, binder course1661ACbindN25off470.82017-08-15 15:14:28Dynapac CP2100ACbind_NAsphalt concrete, binder course; NaturalAsphalt concrete, binder course1661ACsurfC25off470.82017-08-15 15:14:28Dynapac CP2100ACsurf_CAsphalt concrete, surface course; CrushedAsphalt concrete, surface course1661ACsurfN25off470.82017-08-15 15:14:28Dynapac CP2100ACsurf_NAsphalt concrete, surface course; NaturalAsphalt concrete, surface course1661PAC25off470.82017-08-15 15:14:28Dynapac CP2100PA_CPorous asphalt; CrushedPorous asphalt1661SMAC25off470.82017-08-15 15:14:28Dynapac CP2100SMA_CStone mastic asphalt; CrushedStone mastic asphalt2360041800612008900107205004000pdfwebtable
LEVEL II

Please or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac CP2100?

Please Log in or Register to MyDynapac to get access.
