Dynapac CP1200W Pneumatic tire rollers

0
My comparison
  • Experience
  • Pictures

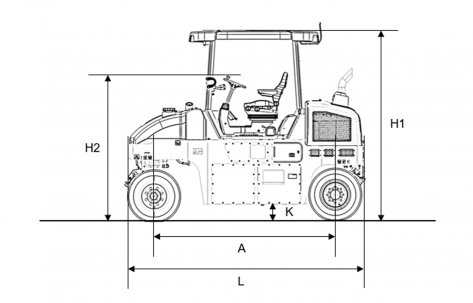

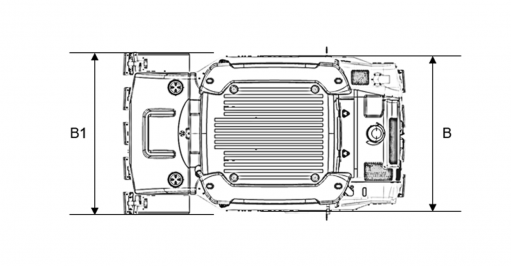

  • Dimensions
A. Wheelbase 2760 mm
B. Width, with symmetric cab
B1. Width, with assymetric cab
B1. Width, with assymmetric cab
B2. Width, with symmetric cab
B. Width 1,990 mm
H1. Height, w/o ROPS/Cab
H1. Height, with ROPS/cab 2950 mm
H2. Height, w/o ROPS/cab 2210 mm
H2. Height, with folded canopy
H2. Height, with ROPS/Cab
H3. Height max. with ROPS/Cab
K. Ground clearance 260 mm
L. Length 3660 mm
B1. Width 2,090 mm
O. Overlap
O1. Overhang, right
O2. Overhang, left
R. Turning radius, outside 7,090 mm
Discontinued true
Operating Mass: 5550 kg
Static linear load: N/A
Compaction width: N/A

Technical data

Masses
Operating mass (incl. ROPS) 5550 kg
Operating mass (incl. Cab) 5850 kg
Mass with max. ballast 12100 kg
Mass with max ballast (Canopy)
Mass with steel ballast (Canopy)
Mass with water ballast g
Mass with wet sand ballast kg
Max. operating mass
Max. operating mass kg
Operating mass (incl. Cab)
Operating mass (incl. Canopy) kg
Traction
Transmission Hydrostatic, direct drive motors at rear tyres
Working speed m/s
Speed low km/h
Speed high km/h
Max. theoretical gradeability 30 %
Speed range 0-16 km/h
Engine
Rated power, SAE J1995 55 kW (74 hp ) @ 2200 U/Min
Type Water cooled turbo diesel
Fuel tank capacity 130 l
Electrical system 12 V
Alternative Engine
Manufacturer/Model Cummins QSF 2.8 (Tier 3A)
Rated power, SAE J1995 55 kW (74 hp) @ 2200 rpm
Type Water cooled turbo diesel
Alternative Engine
Fuel tank capacity
Hydraulic system
Driving Axial piston pump with variable displacement. Axial piston motors with constant displacement.
Steering Gear pump with constant diplacement
Service brake Hydrost. braking on drive wheels (rear)
Parking/
Emergency brake		 Spring - applied on drive wheels (rear)

Equipment (Standard and options)

Standard

■ Arm rest, Backup alarm
■ Battery switch, Cocoa mats
■ Documentation (Manuals - one set)
■ Emergency stop, Fuel level display
■ Horn, Hour meter, Hydraulic check points
■ Hydraulic oil lever indicator, Interloc system
■ Key master and start, Lifting and tiedown eyes
■ Mirrors (process view), Mirrors (traffic view)
■ Neutral start arrangement, Parking brake
■ Pressurized sprinkler system, Rotating beacon
■ Seat with suspension, Sliding and swiveling operator unit
■ Speedometer, Sprinkler system, Sprinkler timer
■ Standard Platform, Tachometer display
■ Towing eyelet (rear), Warning – Air cleaner
■ Warning – Brake, Warning – Clogged hydraulic oil filter
■ Warning – Engine temperature
■ Warning – Engine oil pressure
■ Warning – Hydraulic fluid temperature
■ Warning – Low charge, Warning – Low fuel level
■ Working lights LED (front/rear)

Optional

■Flexible ballast option: 8 steel ballast (7,720 lb/front) or 12 steel ballast (11,690 lb/front & rear)
■ Asphalt temperature meter
■ Biologically degradable hydraulic oil
■ Canopy or ROPS/FOPS or Cab incl. ACC
■ Driving lights (RH or LH)
■ Dyn@link, Dyn@link advanced
■ Emulsion tank, Fire extinguisher
■ First aid box, Heat covers for wheels
■ Radio & MP3 player (Cab)
■ Rotating beacon (LED)
■ Rotating beacon (Ignition Control/LED)
■ Seat belts 3” (ROPS or Cab)
■ Seat luxury (ROPS or Cab)
■ Single scrapers, Slow Moving Vehicle sign
■ Spare tire, Sprinkler pump (back up)
■ Tool set, Towing eyelet (front)
■ Vandal cover (Canopy or ROPS/FOPS)
■ Water tank lockable, Working lights (night LED)

Compaction data

AsphaltComp infoAsphaltComp info1658ACbaseC25off470.82017-08-15 15:14:28Dynapac CP1200ACbase_CAsphalt concrete, base course; CrushedAsphalt concrete, base course1658ACbaseN25off470.82017-08-15 15:14:28Dynapac CP1200ACbase_NAsphalt concrete, base course; NaturalAsphalt concrete, base course1658ACbindC25off470.82017-08-15 15:14:28Dynapac CP1200ACbind_CAsphalt concrete, binder course; CrushedAsphalt concrete, binder course1658ACbindN25off470.82017-08-15 15:14:28Dynapac CP1200ACbind_NAsphalt concrete, binder course; NaturalAsphalt concrete, binder course1658ACsurfC25off470.82017-08-15 15:14:28Dynapac CP1200ACsurf_CAsphalt concrete, surface course; CrushedAsphalt concrete, surface course1658ACsurfN25off470.82017-08-15 15:14:28Dynapac CP1200ACsurf_NAsphalt concrete, surface course; NaturalAsphalt concrete, surface course1658PAC25off470.82017-08-15 15:14:28Dynapac CP1200PA_CPorous asphalt; CrushedPorous asphalt1658SMAC25off470.82017-08-15 15:14:28Dynapac CP1200SMA_CStone mastic asphalt; CrushedStone mastic asphalt241804209061394810451083610005000pdfwebtable
