COMPACTION

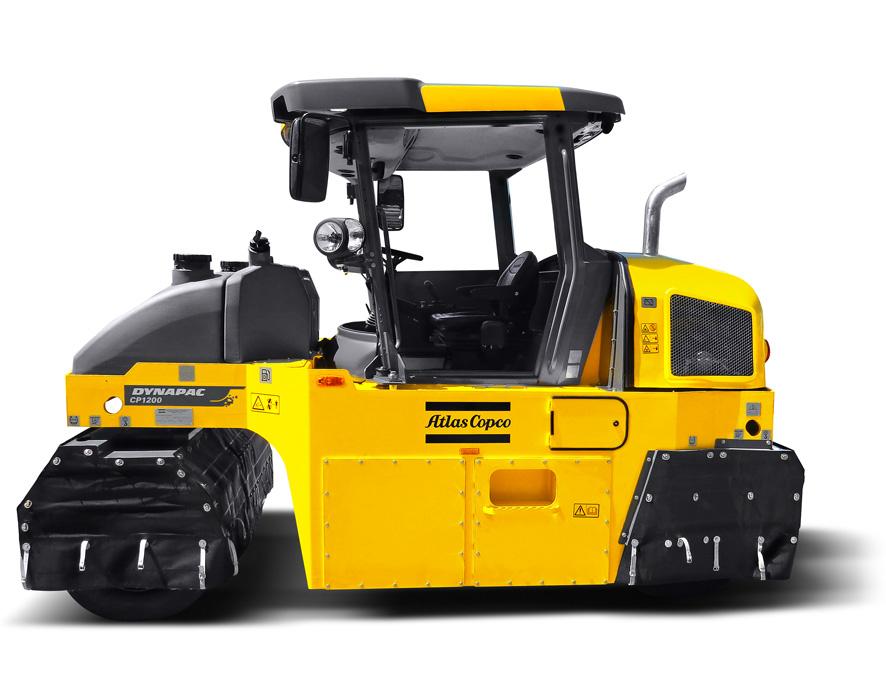

Dynapac CP1200 Pneumatic tire rollers

0
My comparison
  • Pictures

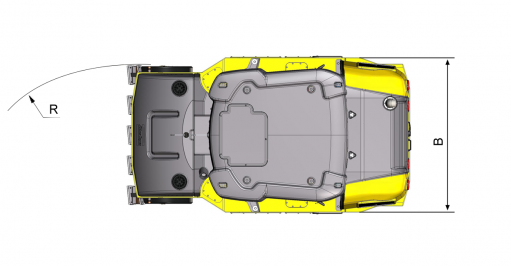

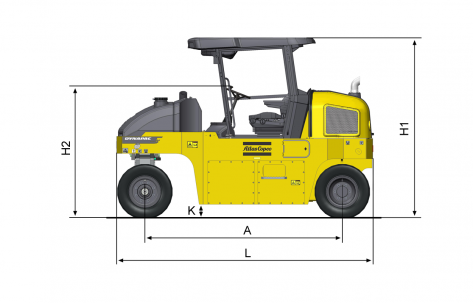

  • Dimensions
A. Wheelbase 2760 mm
B. Width, with symmetric cab
B1. Width, with assymetric cab
B1. Width, with assymmetric cab
B2. Width, with symmetric cab
B. Width 2050 mm
H1. Height, w/o ROPS/Cab
H1. Height, with ROPS/cab 2550 mm
H2. Height, w/o ROPS/cab 1875 mm
H2. Height, with folded canopy
H2. Height, with ROPS/Cab
H3. Height max. with ROPS/Cab
K. Ground clearance 190 mm
L. Length 3660 mm
O. Overlap
O1. Overhang, right
O2. Overhang, left
R. Turning radius, outside 5600 mm
Discontinued true
Operating Mass: 5750 kg
Static linear load: N/A
Compaction width: N/A

Technical data

Masses
Operating mass (incl. ROPS) 5750 kg
Mass with max. ballast 12000 kg
Mass with max ballast (Canopy)
Mass with steel ballast (Canopy)
Mass with water ballast g
Mass with wet sand ballast kg
Max. operating mass kg
Max. operating mass
Operating mass (incl. Cab)
Operating mass (incl. Canopy) kg
Traction
Transmission Hydrostatic, direct drive motors at rear tyres
Working speed m/s
Speed low km/h
Speed high km/h
Max. theoretical gradeability 30 %
Speed range 0 - 18 km/h
Engine
Rated power, SAE J1995 55 kW (74 hp ) @ 2200 U/Min.
Type Water cooled turbo diesel
Fuel tank capacity 216 l
Electrical system 12 V
Alternative Engine
Manufacturer/Model Cummins QSF 2.8 (Tier 3A)
Rated power, SAE J1995 55 kW (74 hp ) @ 2200 rpm
Type Water cooled turbo diesel
Alternative Engine
Fuel tank capacity
Hydraulic system
Service brake Hydrost. braking on drive wheels (rear)
Parking/
Emergency brake		 Spring - applied on drive wheels (rear)

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Pneumatic tire rollers 4812155972
COMPACTION Pneumatic tire rollers 4812155971
COMPACTION Pneumatic tire rollers 4812155977
COMPACTION Pneumatic tire rollers 4812155977
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Pneumatic tire rollers 4812155971
COMPACTION Pneumatic tire rollers 4812155971
COMPACTION Pneumatic tire rollers 4812155976
COMPACTION Pneumatic tire rollers 4812155976
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Pneumatic tire rollers 4812155970
COMPACTION Pneumatic tire rollers 4812155970
COMPACTION Pneumatic tire rollers 4812155975
COMPACTION Pneumatic tire rollers 4812155975

Compaction data

AsphaltComp infoAsphaltComp info1658ACbaseC25off470.82017-08-15 15:14:28Dynapac CP1200ACbase_CAsphalt concrete, base course; CrushedAsphalt concrete, base course1658ACbaseN25off470.82017-08-15 15:14:28Dynapac CP1200ACbase_NAsphalt concrete, base course; NaturalAsphalt concrete, base course1658ACbindC25off470.82017-08-15 15:14:28Dynapac CP1200ACbind_CAsphalt concrete, binder course; CrushedAsphalt concrete, binder course1658ACbindN25off470.82017-08-15 15:14:28Dynapac CP1200ACbind_NAsphalt concrete, binder course; NaturalAsphalt concrete, binder course1658ACsurfC25off470.82017-08-15 15:14:28Dynapac CP1200ACsurf_CAsphalt concrete, surface course; CrushedAsphalt concrete, surface course1658ACsurfN25off470.82017-08-15 15:14:28Dynapac CP1200ACsurf_NAsphalt concrete, surface course; NaturalAsphalt concrete, surface course1658PAC25off470.82017-08-15 15:14:28Dynapac CP1200PA_CPorous asphalt; CrushedPorous asphalt1658SMAC25off470.82017-08-15 15:14:28Dynapac CP1200SMA_CStone mastic asphalt; CrushedStone mastic asphalt2352041760611748880107045004000pdfwebtable
LEVEL II

Please or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac CP1200?

Please Log in or Register to MyDynapac to get access.
