Dynapac CO2200 Double drum vibratory rollers

My comparison

Experience
Pictures

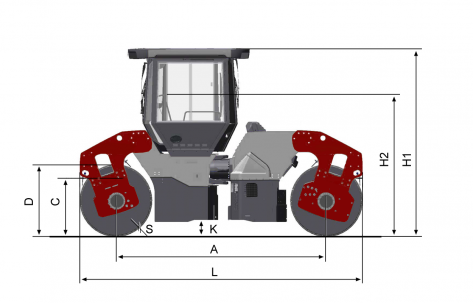

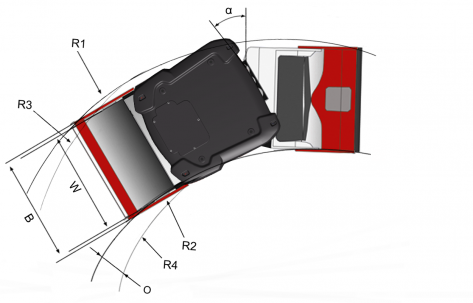

Dimensions

C. Curb clearance	735 mm
D. Drum diameter	1150 mm
H1. Height, with ROPS/cab	2990 mm
L. Length	4490 mm
O. Off-set	335 mm
R1. Turning radius, outside	6570 mm
R2. Turning radius, inside	5070 mm
R3. Turning radius with off-set, outside	4890 mm
R4. Turning radius with off-set, inside	3390 mm
S. Drum shell thickness	20 mm/13 mm

These tandem rollers are designed with efficiency in mind - application efficiency, operator efficiency, compaction control efficiency and service efficiency. Performance, visibility, operators comfort, compaction control and serviceability for the new CC line will appeal to owners, operators and service crews. The environmental benefits appeal to everyone. All models have high frequency vibration as standard. There is a number of features to the CC rollers to make servicing quick and easy, ensuring maximum uptime.

Operating Mass: 7700 kg

SLL (front/rear): 25,3/26,0 kg/cm

Compaction width: 1500 mm

Features & benefits

Technical data

Masses
Max. operating mass	9100 kg
Operating mass (incl. ROPS)	7700 kg
Operating mass (incl. Cab)	7900 kg
Operating mass (incl. Cab and offset)
Module mass (front/rear)	3800 kg/ 3900 kg
Traction
Speed range	0-12 km/h
Vertical oscillation	±7°
Max. theoretical gradeability	42 %
Engine
Manufacturer/Model	Deutz TCD 3.6 HT T4f
Type	Water cooled turbo diesel
Rated power, SAE J1995
Rated power, SAE J1995	55 kW (74 hp) @ 2200 rpm
Fuel tank capacity	130 l
Alternative Engine
Manufacturer/Model	Cummins QSB 3.3 IIIA/T3
Type	Water cooled turbo diesel
Rated power, SAE J1995	74kW (99hp) @ 2200 rpm
Alternative Engine
Manufacturer/Model	Deutz TCD 3.6 HT StageV
Type	Water cooled turbo diesel
Rated power, SAE J1995	55 kW (74 hp) @ 2200 rpm
Hydraulic system
Driving	Axial piston pump with variable displacement Axial piston front motor(1) and radial piston rear motor(1) with variable displacement.
Vibration	Axial piston pumps(2) with variable displacem. Axial piston motors(2) with const. displacem.
Steering	Gear pump with constant displacem.
Service brake	Hydrostatic in forward and reverse lever.
Parking/ Emergency brake	Failsafe multidisc brake in both drums.
{phrase:compaction_ce}
Centrifugal force (high/low amplitude)	72 kN/38 kN
Nominal amplitude (high/low)	0.7/0.2 mm
Vibration frequency (high/low amplitude)	48 Hz/62 Hz
{phrase:compaction_oscillation}
Oscillation force	103 kN
Oscillation frequency	40 Hz
Tangential amplitude	1.20 mm

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Coolant - no cab

Type of fluid	Volume	Additional info
Dynapac Coolant 100	24 l	P/N 25 l can 4812161854

Coolant - with cab

Type of fluid	Volume	Additional info
Dynapac Coolant 100	26,2 l	P/N 25 l can 4812161854

Drum oil

Type of fluid	Volume	Additional info
Dynapac Drum Oil 1000	14 l for front drum 1,1 l/side for rear oscillation drum	P/N 5 l can 4812161887 20 l can 4812161888 209 l drum 4812161889

Engine

Type of fluid	Volume	Additional info
Dynapac Engine Oil 300	12 l	P/N 5 l can 4812161859 20 l can 4812161860 209 l drum 4812161861

Hydraulic oil tank

Type of fluid	Volume	Additional info
Dynapac Hydraulic 300	78 l	P/N 5 l can 4812161867 20 l can 4812161868 209 l drum 4812161869

Spare parts manuals

Eager to see the spare parts of Dynapac CO2200?

Please Log in or Register to MyDynapac to get access.

Compaction data

LEVEL II

Please Log in or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac CO2200?

Please Log in or Register to MyDynapac to get access.
