Dynapac CC950 Double drum vibratory rollers

0
My comparison

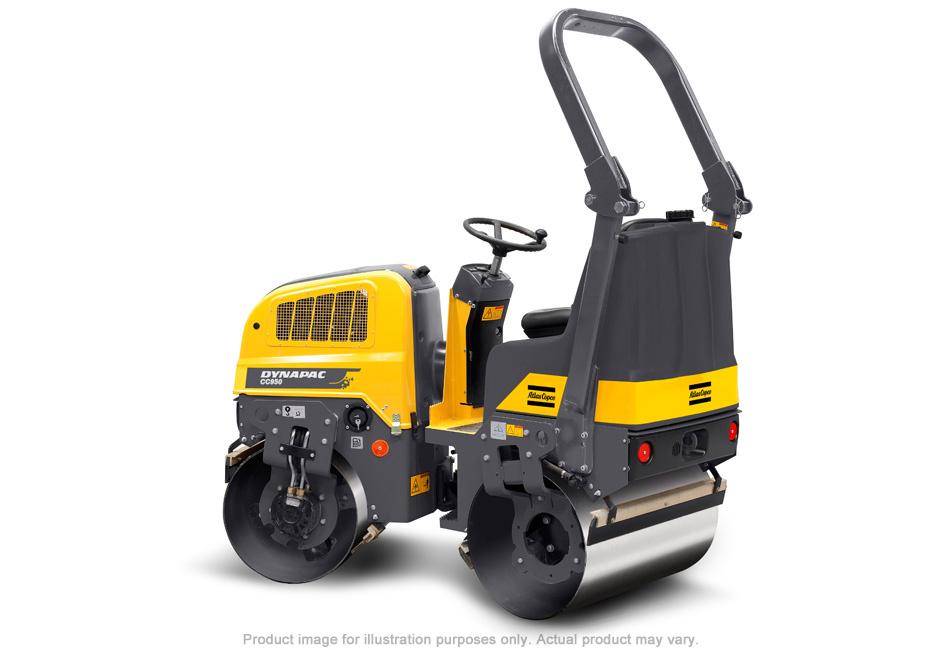

  • Pictures

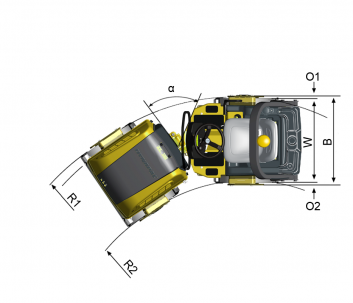

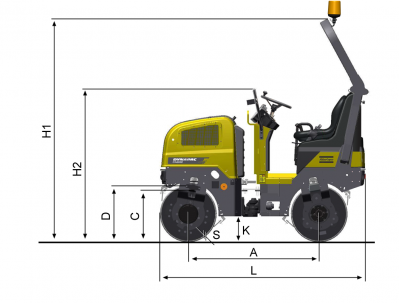

  • Dimensions
A. Wheelbase 1350 mm
B. Width 970 mm
C. Curb clearance 465 mm
D. Drum diameter 584 mm
H1. Height, with ROPS/cab 2300 mm
H2. Height, w/o ROPS/cab 1585 mm
K. Ground clearance 261 mm
L. Length 2107 mm
L1. Length 2107 mm
O1. Overhang, right 35 mm
O2. Overhang, left 35 mm
R1. Turning radius, outside 2700 mm
R2. Turning radius, inside 1800 mm
S. Drum shell thickness 9 mm
W. Drum width 900 mm
α. Steering angle ±34°
Discontinued true
Operating Mass: 1350 kg
SLL (front/rear): 7.1/ 7.8 kg/cm
Compaction width: 900 mm

Technical data

Masses
Max. operating mass 1400 kg
Operating mass (incl. ROPS) 1350 kg
Traction
Speed range (Dual/TC/AS) 0-8 km/h
Vertical oscillation ±6°
Max. theoretical gradeability 35 %
Engine
Manufacturer/Model Kubota D722-E4B
Type Vertical, water-cooled,
4-cycle IDI diesel engine
Rated power, SAE J1995 14.9 kW (20.3 hp ) @ 3,600 U/Min.
Fuel tank capacity 23 l
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement.
2 radial piston motors with constant displacement.
Vibration Gear pump/motors with constant displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe brake in both drums.
History
Production start (year) 2015
Production end (year)
Note Asia model, replaces Dynapac CC900G, with diesel engine
{phrase:compaction_oscillation}
Oscillation frequency Hz

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Drum oil
Type of fluid Volume Additional info
Dynapac Gear Oil 200 0,5 l for Front drum
3,5 l foor Rear drum		 P/N
5 l can 4812161879
20 l can 4812161880
209 l drum 4812161881
Hydraulic oil tank
Type of fluid Volume Additional info
Dynapac Hydraulic 300 12 l P/N
20 l can 9106230330
209 l drum 9106230331

Service Kits

Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945711
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945710
COMPACTION Double drum vibratory rollers 4700950150 Single arm drum
Rotating beacon kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700389652 ROTATING BEACON FOR ROPS.
Scraper kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940671
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940210
COMPACTION Double drum vibratory rollers 4812160151 (CC900S s/n 10000359x0A013659-) No Oil
COMPACTION Double drum vibratory rollers 4812160152 (CC900S s/n 10000359x0A013659-) Inc. Oil
Service kit , 250H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812160397 (CC900S s/n 10000359x0A013659-) No Oil
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940209
COMPACTION Double drum vibratory rollers 4812160098 (CC900S s/n 10000359x0A013659-) No Oil
COMPACTION Double drum vibratory rollers 4812160099 (CC900S s/n 10000359x0A013659-) Inc. Oil
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940208
COMPACTION Double drum vibratory rollers 4812160096 (CC900S s/n 10000359x0A013659-) No Oil
COMPACTION Double drum vibratory rollers 4812160097 (CC900S s/n 10000359x0A013659-) Inc. Oil
Service kit , 750H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812160397 (CC900S s/n 10000359x0A013659-) No Oil
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945850 Front drum
COMPACTION Double drum vibratory rollers 4700945850 front drum
Slow moving vehicle (SMV) sign kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700397559 SMV (SLOW MOVING VEHICLE) SIGN FOR LARGE TANK
COMPACTION Double drum vibratory rollers 4700391951 SMV (SLOW MOVING VEHICLE) SIGN FOR STD TANK
Spring loaded scrapers kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700390801 SPRING LOADED SCRAPERS (CC900S)
Sprinkler kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812161288 50 pieces.
COMPACTION Double drum vibratory rollers 4812161289 100 pieces.
COMPACTION Double drum vibratory rollers 4812161290 200 pieces.
Steering hitch kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945928

Spare parts manuals

Eager to see the spare parts of Dynapac CC950?

Please Log in or Register to MyDynapac to get access.

Compaction data

AsphaltComp infoAsphaltComp info1786ACbaseC24on/off11293.399.6on5454off70.82017-08-15 15:14:28Dynapac CC950ACbase_CAsphalt concrete, base course; CrushedAsphalt concrete, base course1786ACbaseN24off11293.8100.1on5504off70.82017-08-15 15:14:28Dynapac CC950ACbase_NAsphalt concrete, base course; NaturalAsphalt concrete, base course1786ACbindC24on/off11293.399.6on5454off70.82017-08-15 15:14:28Dynapac CC950ACbind_CAsphalt concrete, binder course; CrushedAsphalt concrete, binder course1786ACbindN24off11293.8100.1on5504off70.82017-08-15 15:14:28Dynapac CC950ACbind_NAsphalt concrete, binder course; NaturalAsphalt concrete, binder course1786ACsurfC24on/off11293.399.6on5454off70.82017-08-15 15:14:28Dynapac CC950ACsurf_CAsphalt concrete, surface course; CrushedAsphalt concrete, surface course1786ACsurfN24off11293.8100.1on5504off70.82017-08-15 15:14:28Dynapac CC950ACsurf_NAsphalt concrete, surface course; NaturalAsphalt concrete, surface course1786PAC24on/off11293.6101.3on5504off70.82017-08-15 15:14:28Dynapac CC950PA_CPorous asphalt; CrushedPorous asphalt1786SMAC24on/off11293.399.6on5454off70.82017-08-15 15:14:28Dynapac CC950SMA_CStone mastic asphalt; CrushedStone mastic asphalt21800490066008450103605002000pdfwebtable
LEVEL II

Please or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac CC950?

Please Log in or Register to MyDynapac to get access.
