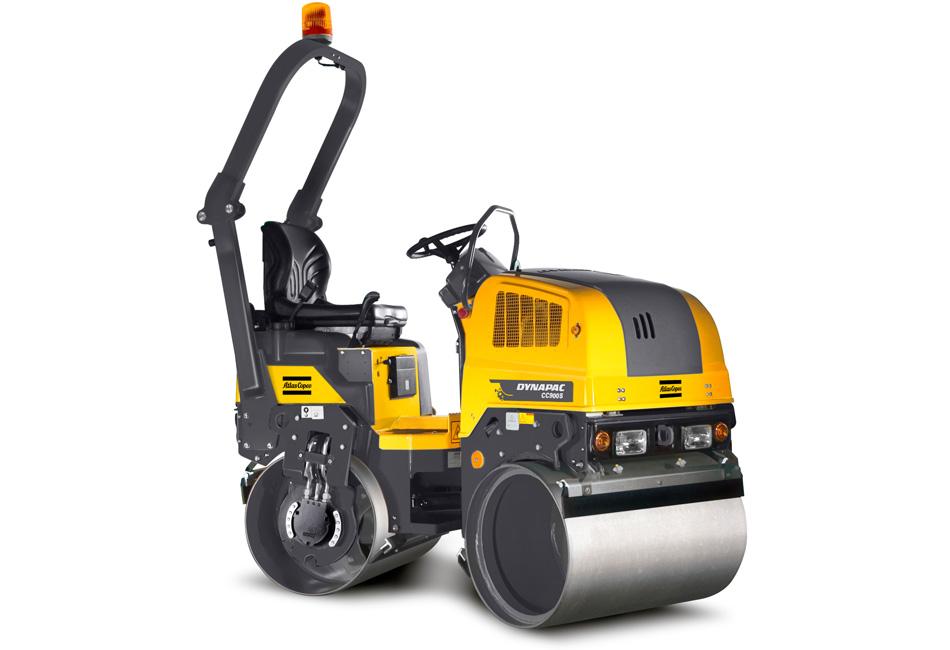

Dynapac CC900S Plus Double drum vibratory rollers

0
My comparison
  • Pictures

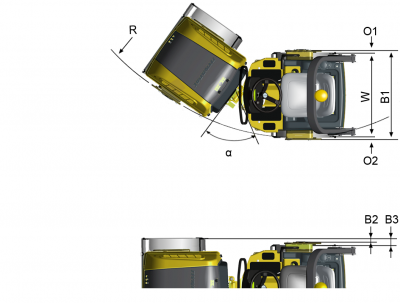

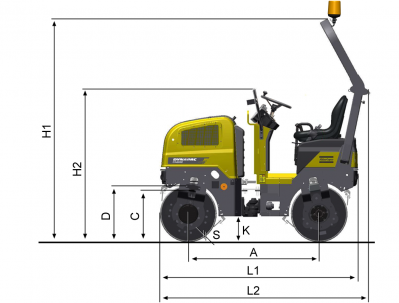

  • Dimensions
A. Wheelbase 1350 mm
B. Width 970 mm
C. Curb clearance 584 mm
D. Drum diameter 584 mm
H1. Height, with ROPS/cab 2300 mm
K. Ground clearance 250 mm
L1. Length 2040 mm
O1. Overhang, right 35 mm
O2. Overhang, left 35 mm
R1. Turning radius, outside 2575 mm
R2. Turning radius, inside
S. Drum shell thickness 13 mm
W. Drum width 900 mm
α. Steering angle ±32°
Discontinued true
Operating Mass: 1640 kg
SLL (front/rear): 8.8/ 9.4 kg/cm
Compaction width: 900 mm

Features & benefits

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Dynapac Stage IV / TIER 4f
Stage IV / TIER 4f

Any Road Construction Equipment product equipped with a Stage IV engine, is not only compliant with the latest emission stage but is also contributing to great fuel cost savings.

Technical data

Masses
Max. operating mass 1705 kg
Operating mass (incl. ROPS) 1640 kg
Traction
Speed range (Dual/TC/AS) 0 - 9 km/h
Vertical oscillation ±6°
Max. theoretical gradeability 50 %
Engine
Manufacturer/Model Kubota D1105-E4B T4f
Type Water cooled diesel
Rated power, SAE J1995 18 kW (24 hp ) @ 2800 rpm
Fuel tank capacity 23 l
Alternative Engine
Manufacturer/Model
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement and servo. 2 radial piston motors with constant displacement.
Vibration Gear pump/motors with constant displacement.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe brake in both drums.
{phrase:compaction_oscillation}
Oscillation frequency Hz

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Drum oil
Type of fluid Volume Additional info
Dynapac Drum Oil 1000 4,5 l P/N
5 l can 4812156456
Engine
Type of fluid Volume Additional info
Dynapac engine Oil 200 5,1 l P/N
5 l can 5580020624
20 l can 5501522700
Hydraulic oil tank
Type of fluid Volume Additional info
Dynapac Hydraulic 300 12 l P/N
20 l can 9106230330
209 l drum 9106230331

Service Kits

Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945711
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945710
Scraper kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940673
Service kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812160159 Start up kit (CC1000 s/n 10000360x0A012890-)
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940210
COMPACTION Double drum vibratory rollers 4812160151 (CC1000 s/n 10000360x0A012890-) No. oil
COMPACTION Double drum vibratory rollers 4812160152 (CC1000 s/n 10000360x0A012890-) Inc. oil
Service kit , 250H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812160397 (CC1000 s/n 10000360x0A012890-) No. oil
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940209
COMPACTION Double drum vibratory rollers 4812160098 (CC1000 s/n 10000360x0A012890-) No. oil
COMPACTION Double drum vibratory rollers 4812160099 (CC1000 s/n 10000360x0A012890-) Inc. oil
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940208
COMPACTION Double drum vibratory rollers 4812160096 (CC1000 s/n 10000360x0A012890-) No. oil
COMPACTION Double drum vibratory rollers 4812160097 (CC1000 s/n 10000360x0A012890-) Inc. oil
Service kit , 750H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812160397 (CC1000 s/n 10000360x0A012890-) No. oil
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945552
Slow moving vehicle (SMV) sign kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700391951 SMV (SLOW MOVING VEHICLE) SIGN FOR STD TANK
Sprinkler kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812161290 200 pieces.
COMPACTION Double drum vibratory rollers 4812161288 50 pieces.
COMPACTION Double drum vibratory rollers 4812161289 100 pieces.
Steering hitch kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945928

Spare parts manuals

Eager to see the spare parts of Dynapac CC900S Plus?

Please Log in or Register to MyDynapac to get access.

Compaction data

AsphaltComp infoAsphaltComp info1662ACbaseC24on/off11293.499.7on5454off70.82017-08-15 15:14:28Dynapac CC900S PlusACbase_CAsphalt concrete, base course; CrushedAsphalt concrete, base course1662ACbaseN24off11293.9100.2on5504off70.82017-08-15 15:14:28Dynapac CC900S PlusACbase_NAsphalt concrete, base course; NaturalAsphalt concrete, base course1662ACbindC24on/off11293.499.7on5454off70.82017-08-15 15:14:28Dynapac CC900S PlusACbind_CAsphalt concrete, binder course; CrushedAsphalt concrete, binder course1662ACbindN24off11293.9100.2on5504off70.82017-08-15 15:14:28Dynapac CC900S PlusACbind_NAsphalt concrete, binder course; NaturalAsphalt concrete, binder course1662ACsurfC24on/off11293.499.7on5454off70.82017-08-15 15:14:28Dynapac CC900S PlusACsurf_CAsphalt concrete, surface course; CrushedAsphalt concrete, surface course1662ACsurfN24off11293.9100.2on5504off70.82017-08-15 15:14:28Dynapac CC900S PlusACsurf_NAsphalt concrete, surface course; NaturalAsphalt concrete, surface course1662PAC24on/off11293.7101.4on5504off70.82017-08-15 15:14:28Dynapac CC900S PlusPA_CPorous asphalt; CrushedPorous asphalt1662SMAC24on/off11293.499.7on5454off70.82017-08-15 15:14:28Dynapac CC900S PlusSMA_CStone mastic asphalt; CrushedStone mastic asphalt21800490066008450103605002000pdfwebtable
LEVEL II

Please or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac CC900S Plus?

Please Log in or Register to MyDynapac to get access.
