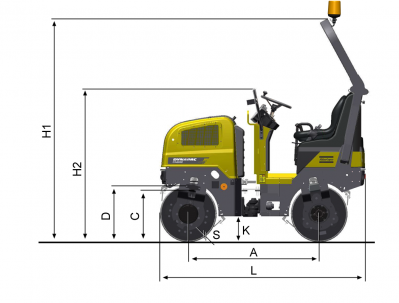

| A. Wheelbase | 1350 mm |
|---|---|
| B. Width | 970 mm |
| C. Curb clearance | 465 mm |
| D. Drum diameter | 584 mm |
| H1. Height, with ROPS/cab | 2300 mm |
| H2. Height, w/o ROPS/cab | 1585 mm |
| K. Ground clearance | 261 mm |
| L. Length | 2107 mm |

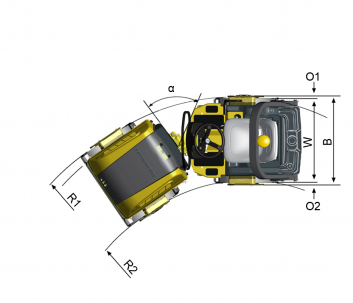

| O1. Overhang, right | 35 mm |
| O2. Overhang, left | 35 mm |
| R1. Turning radius, outside | 2700 mm |
| R2. Turning radius, inside | 1800 mm |
| S. Drum shell thickness | 9 mm |
| W. Drum width | 900 mm |
| α. Steering angle | ±34° |
| Masses | |
| Max. operating mass | 1300 kg |
|---|---|
| Operating mass (incl. ROPS) | 1250 kg |
| Traction | |
| Speed range | 0-8 km/h |
| Vertical oscillation | ±6° |
| Max. theoretical gradeability | 35 % |
| Engine | |
| Manufacturer/Model | Honda GX630R QYD |
| Type | 4-stroke gasoline |
| Rated power, SAE J1995 | 14.2 kW (19 hp ) @ 3000 rpm |
| Fuel tank capacity | 23 l |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement. 2 radial piston motors with constant displacement. |
| Vibration | Gear pump/motors with constant displacement. |
| Steering | Gear pump with constant displacement. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/ Emergency brake |
Failsafe brake in both drums. |
| History | |
| Production start (year) | 2015 |
| Production end (year) | |
| Note | |
| {phrase:compaction_oscillation} | |
| Oscillation frequency | Hz |
| Type of fluid | Volume | Additional info | |
|---|---|---|---|
| Dynapac Gear Oil 300 | 0,51 liter | Front drum, change oil every 2000 hours (yearly) |
|
| Dynapac Gear Oil 300 | 3,5 liter | Rear drum. Change oil every 2000 hours (yearly). |
|
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700389652 | ROTATING BEACON FOR ROPS. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700940671 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700940210 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700940209 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700940208 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700945850 | Front drum |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700397559 | SMV (SLOW MOVING VEHICLE) SIGN FOR LARGE TANK | |
| COMPACTION | Double drum vibratory rollers | 4700391951 | SMV (SLOW MOVING VEHICLE) SIGN FOR STD TANK |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700390801 | SPRING LOADED SCRAPERS (CC900S) |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4812161288 | 50 pieces. | |
| COMPACTION | Double drum vibratory rollers | 4812161289 | 100 pieces. | |
| COMPACTION | Double drum vibratory rollers | 4812161290 | 200 pieces. |
