Dynapac CC900 Plus Double drum vibratory rollers

0
My comparison
  • Pictures

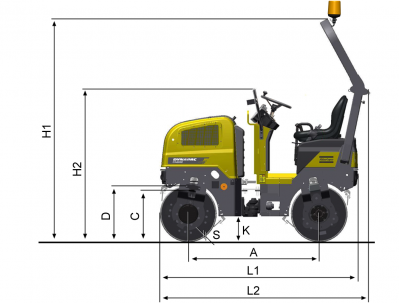

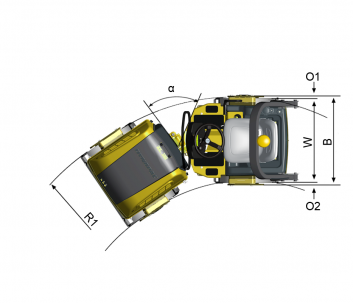

  • Dimensions
A. Wheelbase 1350 mm
B. Width
C. Curb clearance 465 mm
D. Drum diameter 584 mm
H1. Height, with ROPS/cab 2300 mm
K. Ground clearance 255 mm
L1. Length 2040 mm
O1. Overhang, right
O2. Overhang, left
R1. Turning radius, outside
R2. Turning radius, inside
S. Drum shell thickness
W. Drum width 900 mm
α. Steering angle ±34°
Discontinued true
The Dynapac CC900 is a member of the small asphalt roller family. With a drum width of 900 mm it's primarily used for small-scale compaction work such as pavements, cycle paths, small roads and small parking areas. The large drum diameter and drive motors connected in series contributes to excellent accessibility and hill-climbing capacity. Propulsion and vibration naturally come as standard on both drums.
Operating Mass: 1600 kg
SLL (front/rear): 8.3/ 9.4 kg/cm
Compaction width: 900 mm

Features & benefits

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Dynapac Stage IV / TIER 4f
Stage IV / TIER 4f

Any Road Construction Equipment product equipped with a Stage IV engine, is not only compliant with the latest emission stage but is also contributing to great fuel cost savings.

Technical data

Masses
Max. operating mass 1665 kg
Operating mass (incl. ROPS) 1600 kg
Front module mass 750 kg
Rear module mass 850 kg
Traction
Speed range (Dual/TC/AS) 0-9 km/h
Vertical oscillation ±6°
Max. theoretical gradeability %
Engine
Manufacturer/Model Kubota D1105-E4B T4f
Type Water cooled diesel
Rated power, SAE J1995 18 kW (24 hp ) @ 2800 rpm
Fuel tank capacity 23 l
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement and servo. 2 radial piston motors with constant displacement.
Vibration Gear pump/motors with constant displacement.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe brake in both drums.
{phrase:compaction_oscillation}
Oscillation frequency Hz

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Back up alarm kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700388754 BACK UP ALARM
Cup/Can holder kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700377257 CUP/CAN HOLDER
Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945711
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945710
Fuel tank kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812269908 Plastic tank - China market
COMPACTION Double drum vibratory rollers 4812269909 Steel tank
COMPACTION Double drum vibratory rollers 4812269910 Plastic tank - market outside China
Scraper kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940671
Service kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812274607 Service kit 200/400/600/800 hours
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940465 (after 900 hours)
COMPACTION Double drum vibratory rollers 4812274609 CC900G (Loncin Engine) s/n 10000303x0C004465
COMPACTION Double drum vibratory rollers 4812156488 (CC900G (Honda, Improved frame) s/n 10000303x0C00xxxx-)
COMPACTION Double drum vibratory rollers 4812156488 (CC900G s/n 10000303x0C003469-)
COMPACTION Double drum vibratory rollers 4812156488 (CC900G s/n 10000303x0C000707, s/n 10000303x0C000711-)
Service kit , 250H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers (200H) 4812156486 (CC900G (Honda, Improved frame) s/n 10000303x0C00xxxx-)
COMPACTION Double drum vibratory rollers (200h) 4812156486 (CC900G s/n 10000303x0C003469-)
COMPACTION Double drum vibratory rollers (200h) 4812156486 (CC900G s/n 10000303x0C000707, s/n 10000303x0C000711-)
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940464 (after 300 hours)
COMPACTION Double drum vibratory rollers No parts number CC900G (Loncin Engine) s/n 10000303x0C004465
COMPACTION Double drum vibratory rollers 4812156487 (CC900G (Honda, Improved frame) s/n 10000303x0C00xxxx-)
COMPACTION Double drum vibratory rollers 4812156487 (CC900G s/n 10000303x0C003469-)
COMPACTION Double drum vibratory rollers 4812156487 (CC900G s/n 10000303x0C000707, s/n 10000303x0C000711-)
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940463
COMPACTION Double drum vibratory rollers No parts number CC900G (Loncin Engine) s/n 10000303x0C004465
COMPACTION Double drum vibratory rollers 4700940463 (CC900G (Honda, Improved frame) s/n 10000303x0C00xxxx-)
COMPACTION Double drum vibratory rollers 4700940463 (CC900G s/n 10000303x0C003469-)
COMPACTION Double drum vibratory rollers 4700940463 (CC900G s/n 10000303x0C000707, s/n 10000303x0C000711-)
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945551
COMPACTION Double drum vibratory rollers 4700945552 Drum
Slow moving vehicle (SMV) sign kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700397559 SMV (SLOW MOVING VEHICLE) SIGN FOR LARGE TANK
COMPACTION Double drum vibratory rollers 4700391951 SMV (SLOW MOVING VEHICLE) SIGN FOR STD TANK
Sprinkler kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812161288 50 pieces.
COMPACTION Double drum vibratory rollers 4812161289 100 pieces.
COMPACTION Double drum vibratory rollers 4812161290 200 pieces.
Steering hitch kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945928

Spare parts manuals

Eager to see the spare parts of Dynapac CC900 Plus?

Please Log in or Register to MyDynapac to get access.

Equipment (Standard and options)

Optional

3” seatbelt, Biodegradable hydraulic fluid, Cert. fire protection ( SBF 127), Decal risk location (GOST), Fire extinguisher, Hearing protectors, Licence plate light, Rear view mirror (traffic view), Service kit 50/500/1000 h, Side direction lights (driving lights required), Slow moving vehicle sign, Special color (one or two), Tool set, Water tank cover (lockable)

Compaction data

AsphaltComp infoAsphaltComp info1633ACbaseC24on/off11293.499.7on5474off70.82017-08-15 15:14:27Dynapac CC900 PlusACbase_CAsphalt concrete, base course; CrushedAsphalt concrete, base course1633ACbaseN24off11293.9100.2on5524off70.82017-08-15 15:14:27Dynapac CC900 PlusACbase_NAsphalt concrete, base course; NaturalAsphalt concrete, base course1633ACbindC24on/off11293.499.7on5474off70.82017-08-15 15:14:27Dynapac CC900 PlusACbind_CAsphalt concrete, binder course; CrushedAsphalt concrete, binder course1633ACbindN24off11293.9100.2on5524off70.82017-08-15 15:14:27Dynapac CC900 PlusACbind_NAsphalt concrete, binder course; NaturalAsphalt concrete, binder course1633ACsurfC24on/off11293.499.7on5474off70.82017-08-15 15:14:27Dynapac CC900 PlusACsurf_CAsphalt concrete, surface course; CrushedAsphalt concrete, surface course1633ACsurfN24off11293.9100.2on5524off70.82017-08-15 15:14:27Dynapac CC900 PlusACsurf_NAsphalt concrete, surface course; NaturalAsphalt concrete, surface course1633PAC24on/off11293.8101.5on5514off70.82017-08-15 15:14:27Dynapac CC900 PlusPA_CPorous asphalt; CrushedPorous asphalt1633SMAC24on/off11293.499.7on5474off70.82017-08-15 15:14:27Dynapac CC900 PlusSMA_CStone mastic asphalt; CrushedStone mastic asphalt21800490066008450103605002000pdfwebtable
