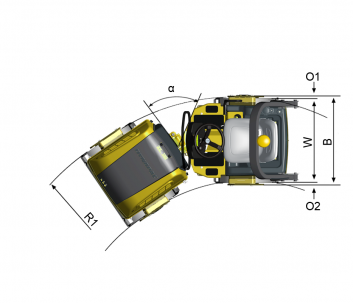

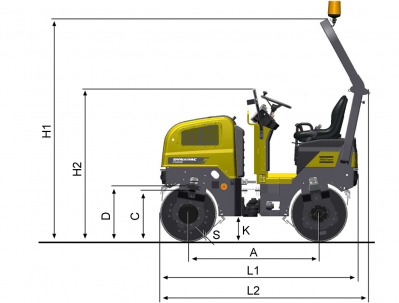

| A. Wheelbase | 1350 mm |
|---|---|
| B. Width | 870 mm |
| C. Curb clearance | 455 mm |
| D. Drum diameter | 588 mm |
| H1. Height, with ROPS/cab | 2300 mm |
| H2. Height, w/o ROPS/cab | 1585 mm |
| K. Ground clearance | 250 mm |
| L1. Length | 2040 mm |
| L2. Length (ROPS) | 2095 mm |
| O1. Overhang, right | 35 mm |
| O2. Overhang, left | 35 mm |
| R1. Turning radius, outside | 2650 mm |
| R2. Turning radius, inside | |
| S. Drum shell thickness | 14 mm |
| W. Drum width | 800 mm |
| α. Steering angle | ±34° |
A tool to monitor and control their machine fleet efficiently and conveniently.
Any Road Construction Equipment product equipped with a Stage IV engine, is not only compliant with the latest emission stage but is also contributing to great fuel cost savings.
| Masses | |
| Max. operating mass | 1665 kg |
|---|---|
| Operating mass (incl. ROPS) | 1575 kg |
| Front module mass | 740 kg |
| Rear module mass | 835 kg |
| Traction | |
| Speed range | 0 - 9 km/h |
| Vertical oscillation | ±6° |
| Max. theoretical gradeability | % |
| Engine | |
| Manufacturer/Model | Kubota D1105-E4B T4f |
| Type | Water cooled diesel |
| Rated power, SAE J1995 | 18 kW (24 hp ) @ 2800 rpm |
| Fuel tank capacity | 23 l |
| Alternative Engine | |
| Manufacturer/Model | |
| Rated power, SAE J1995 | |
| Alternative Engine | |
| Manufacturer/Model | |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement and servo. 2 radial piston motors with constant displacement. |
| Vibration | Gear pump/motors with constant displacement. |
| Steering | Gear pump with constant displacem. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/ Emergency brake |
Failsafe brake in both drums. |
| {phrase:compaction_oscillation} | |
| Oscillation frequency | Hz |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700388698 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700945711 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700945710 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700940671 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700378942 | SPRING LOADED SCRAPERS (CC900) |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700940210 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700940209 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700940208 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700940664 | ||
| COMPACTION | Double drum vibratory rollers | 4700945552 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4812161288 | 50 pieces. | |
| COMPACTION | Double drum vibratory rollers | 4812161289 | 100 pieces. | |
| COMPACTION | Double drum vibratory rollers | 4812161290 | 200 pieces. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Double drum vibratory rollers | 4700945928 |
