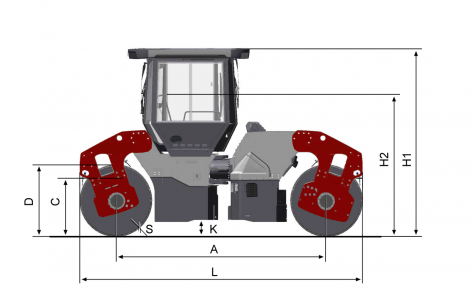

| A. Wheelbase | 3690 mm |
|---|---|

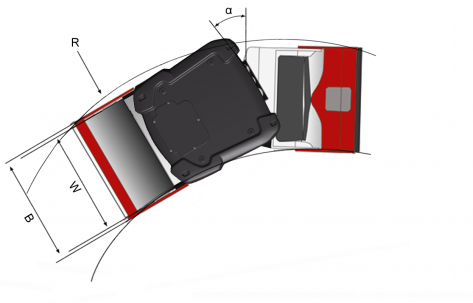

| B. Width | 1878 mm |
| C. Curb clearance | 865 mm |
| D. Drum diameter | 1300 mm |
| H1. Height, with ROPS/cab | 2990 mm |
| H2. Height, w/o ROPS/cab | 2275 mm |
| K. Ground clearance | 310 mm |
| L. Length | 4990 mm |
| R. Turning radius, outside | 5960 mm |
| R2. Turning radius, inside | |
| S. Drum shell thickness | 18 mm |
| W. Drum width | 1730 mm |
| α. Steering angle | ±32° |
| Masses | |
| Max. operating mass | 11950 kg |
|---|---|
| Operating mass (incl. Canopy) | 9900 kg |
| Operating mass (incl. Cab) | 10400 kg |
| Module mass (front/rear) | 5300 kg/ 5100 kg |
| Traction | |
| Speed range (Dual/TC/AS) | 0-12 km/h |
| Vertical oscillation | ±7° |
| Max. theoretical gradeability | % |
| Off-set | 320 mm |
| Engine | |
| Manufacturer/Model | |
| Rated power, SAE J1995 | |
| (*) Rated power | 82 kW |
| (*) Rated power | 110 hp |
| (*) Rated power @ | 2200 rpm |
| Rated power, SAE J1995 | 82 kW (110 hp ) @ 2200 rpm |
| Fuel tank capacity | 230 l |
| Hydraulic system | |
| Service brake | Hydrostatic in forward and reverse lever. |
| {phrase:compaction_oscillation} | |
| Oscillation frequency | Hz |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4700945846 | Cummins QSB 4.5C | |
| COMPACTION | 单钢轮振动压路机 | 4700939565 | Cummins 4BTAA 3,9C | |
| COMPACTION | 单钢轮振动压路机 | 4700950197 | Cummins 4BTA 3,9 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4700938527 | Cummins 4BTA 3,9 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4700950323 | Cummins QSB 4.5C | |
| COMPACTION | 单钢轮振动压路机 | 4700950320 | Cummins 4BTAA 3,9C | |
| COMPACTION | 单钢轮振动压路机 | 4700950196 | Cummins 4BTA 3,9 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4700945845 | Cummins QSB 4.5C | |
| COMPACTION | 单钢轮振动压路机 | 4700939563 | Cummins 4BTAA 3,9C | |
| COMPACTION | 单钢轮振动压路机 | 4700938524 | Cummins 4BTA 3,9 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4700938527 | Cummins 4BTA 3,9 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4700938558 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4700938891 |
