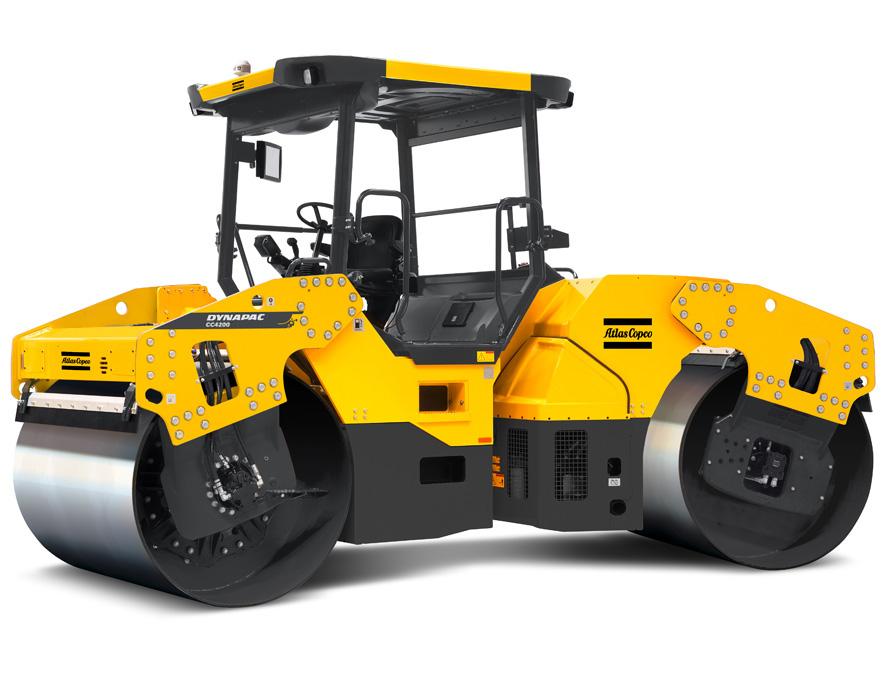

Dynapac CC4200 Double drum vibratory rollers

0
My comparison
  • Pictures
  • Dimensions

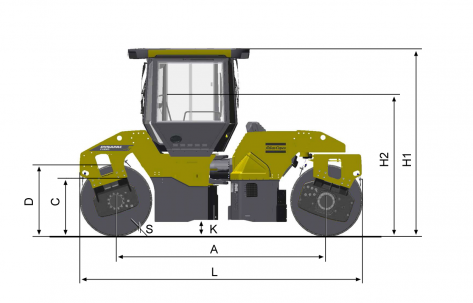

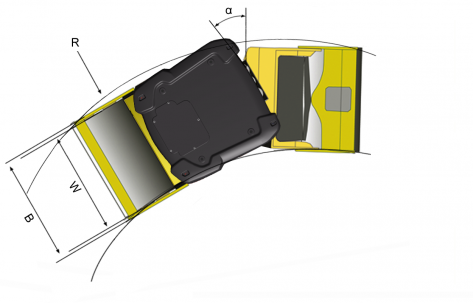

A. Wheelbase 3690 mm
B. Width 1878 mm
C. Curb clearance 865 mm
D. Drum diameter 1300 mm
H1. Height, with ROPS/cab 2990 mm
H2. Height, w/o ROPS/cab 2275 mm
K. Ground clearance 310 mm
L. Length 4990 mm
R. Turning radius, outside 5960 mm
S. Drum shell thickness 18 mm
W. Drum width 1730 mm
α. Steering angle ±32°
Discontinued true
Operating Mass: 10200 kg
SLL (front/rear): 29.5/ 29.5 kg/cm
Compaction width: 1730 mm

Features & benefits

Dynapac Dyn@Lyzer
Dyn@Lyzer

The Dynapac compaction control and documentation system for soil and asphalt rollers

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Dynapac Eco mode
Eco mode

Big fuel savings with ECO!

Technical data

Masses
Max. operating mass 11800 kg
Operating mass (incl. ROPS) 10200 kg
Operating mass (incl. Cab) 10400 kg
Traction
Speed range (Dual/TC/AS) 0-12 km/h
Vertical oscillation ±7°
Max. theoretical gradeability 45 %
Engine
Manufacturer/Model Cummins QSB 4.5 IIIB/T4i
Type Water cooled turbo diesel
Rated power, SAE J1995 97 kW (130 hp ) @ 2200 rpm
Fuel tank capacity 240 l
Alternative Engine
Manufacturer/Model Cummins QSB4.5 IIIA/T3
Type Water cooled turbo diesel
Rated power, SAE J1995 93 kW (125 hp ) @ 2200 rpm
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement.
Axial piston motors (2) with variable displacement.
Vibration Axial piston pumps(2) with variable displacem.
Axial piston motors(2) with const. displacem.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe multidisc brake in both drums.
{phrase:compaction_oscillation}
Oscillation frequency Hz

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Drum oil
Type of fluid Volume Additional info
Dynapac Drum Oil 1000 15 l P/N
5 l can 4812156456
Engine
Type of fluid Volume Additional info
Dynapac Engine Oil 200 11 l P/N
5 l can 1630047100
20 l can 1603047200
Hydraulic oil tank
Type of fluid Volume Additional info
Dynapac Hydraulic 300 40 l P/N
20 l can 9106230330
209 l drum 9106230331

Service Kits

Compaction Analyzer for asphalt (DCA-A)
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81163 DCA-A COMPACTION ANALYZER FOR ASPHALT, ONLY EQUIPMENT
Driving lights kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81144
Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938891
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945903
Edge press kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81098 EDGE PRESS, FRONT RIGHT MOUNTED
Edge press, joint cutter disc
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81100 EDGE PRESS DEVICE, JOINT CUTTER DISC, 120 MM 4.7 INCH
COMPACTION Double drum vibratory rollers 470PP81101 EDGE PRESS DEVICE, JOINT CUTTER DISC, 150 MM 5.9 INCH
Rotating beacon kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81095 ROTATING BEACON
Scraper kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700950151
COMPACTION Double drum vibratory rollers 4700395114
Service kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812274590 (IIIA/T3) Start up kit 1000h (except china)
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812271800 (except china) (IIIA/T3) Inc. Oil
COMPACTION Double drum vibratory rollers 4812160269, 4700945807 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4812159355 (IIIB/T4i) No. Oil
COMPACTION Double drum vibratory rollers 4812159356 (IIIB/T4i) Inc. Oil
Service kit , 2000H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812271801 (except china) (IIIA/T3) Inc. Oil
COMPACTION Double drum vibratory rollers 4812159359 (IIIB/T4i) Inc. Oil
Service kit , 250H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812271799 (except china) (IIIA/T3) Inc. Oil
COMPACTION Double drum vibratory rollers 4812274593 (IIIA/T3) No. Oil
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945806 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4812159353 (IIIB/T4i) No. Oil
COMPACTION Double drum vibratory rollers 4812159354 (IIIB/T4i) Inc. Oil
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812159352, (4812271798, except china) (IIIA/T3) Inc. Oil
COMPACTION Double drum vibratory rollers 4700945805 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4812159352, 4812159669 (IIIB/T4i) Inc. Oil
Service kit , 750H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812271799 (except china) (IIIA/T3) Inc. Oil
COMPACTION Double drum vibratory rollers 4812274593 (IIIA/T3) No. Oil
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945904
Sprinkler kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812155698
COMPACTION Double drum vibratory rollers 4812161290 200 pieces.
Tachograph kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81083 TACHOGRAPH
COMPACTION Double drum vibratory rollers 470PP81162 TACHOGRAPH, ONLY INSTRUMENT
COMPACTION Double drum vibratory rollers 470PP81083 TACHOGRAPH
Working lights kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81096 Std H3 lights
COMPACTION Double drum vibratory rollers 470PP81097 Xenon lights

Spare parts manuals

Eager to see the spare parts of Dynapac CC4200?

Please Log in or Register to MyDynapac to get access.
