Dynapac CC3800 • Dynapac

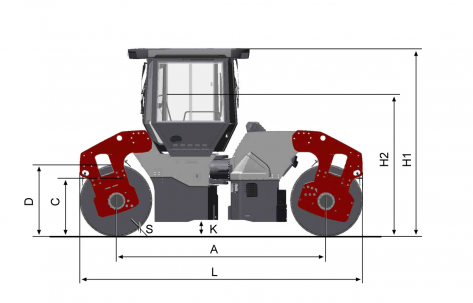

B. Width	1940 mm
D. Drum diameter	1150 mm
H1. Height, with ROPS/cab	2990 mm
L. Length	4490 mm
O. Off-set	335 mm

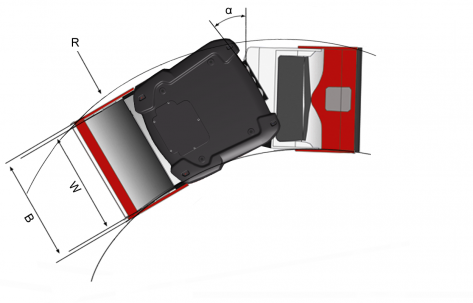

R1. Turning radius, outside	6690 mm
R2. Turning radius, inside	4960 mm
R3. Turning radius with off-set, outside	5000 mm
R4. Turning radius with off-set, inside	3270 mm
S. Drum shell thickness	20 mm

Operating Mass: 9400 kg

SLL (front/rear): 27.2/ 27.2 kg/cm

Compaction width: 1730 mm

Masses
Max. operating mass	10700 kg
Operating mass (incl. ROPS)	9400 kg
Operating mass (incl. Cab)	9600 kg
Operating mass (incl. Cab and offset)
Module mass (front/rear)	4700 kg/ 4700 kg
Traction
Speed range	0 - 12 km/h
Vertical oscillation	±7
Max. theoretical gradeability	33 %
Alternative Engine
Manufacturer/Model	Cummins QSB 3.3 IIIA/T3
Type	Water cooled turbo Diesel
Rated power, SAE J1995	74 kW (99 hp ) @ 2,200 U/Min.
Fuel tank capacity	130 l
Hydraulic system
Driving	Axial piston pump with variable displacement. Axial piston motors (2) with variable displacement.
Vibration	Axial piston pumps(2) with variable displacem. Axial piston motors(2) with const. displacem.
Steering	Gear pump with constant displacem.
Service brake	Hydrostatic in forward and reverse lever.
Parking/ Emergency brake	Failsafe multidisc brake in both drums.
{phrase:compaction_ce}
Centrifugal force (high/low amplitude)	77 kN/43 kN
Vibration frequency (high/low amplitude)	48 Hz/62 Hz
{phrase:compaction_oscillation}
Oscillation frequency	Hz
