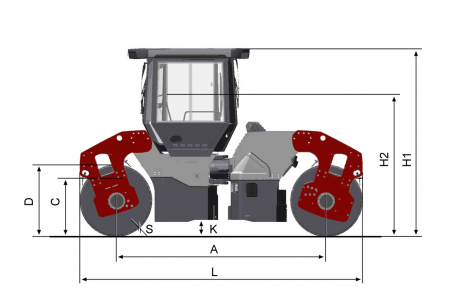

| B. Width | 1870 mm |
|---|---|
| D. Drum diameter | 1150 mm |
| H1. Height, with ROPS/cab | 2990 mm |
| L. Length | 4490 mm |
| O. Off-set | 335 mm |
| R1. Turning radius, outside | 6690 mm |
| R2. Turning radius, inside | 4960 mm |
| R3. Turning radius with off-set, outside | 5000 mm |
| R4. Turning radius with off-set, inside | 3270 mm |
| S. Drum shell thickness | 18 mm |
| Masses | |
| Max. operating mass | 9900 kg |
|---|---|
| Operating mass (incl. ROPS) | 9000 kg |
| Operating mass (incl. Cab) | 9100 kg |
| Operating mass (incl. Cab and offset) | |
| Module mass (front/rear) | 4500 kg/ 4500 kg |
| Traction | |
| Speed range | 0-12 km/h |
| Vertical oscillation | ±7° |
| Max. theoretical gradeability | 35 % |
| Engine | |
| Manufacturer / Model | Deutz TCD 3.6 HT T4f |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 55 kW (74 hp ) @ 2200 rpm |
| Fuel tank capacity | 130 l |
| Alternative Engine | |
| Manufacturer / Model | Cummins QSB 3.3 IIIA/T3 |
| Type | Water cooled turbo diesel |
| Rated power, SAE J1995 | 74 kW (99 hp ) @ 2200 rpm |
| Alternative Engine | |
| Manufacturer / Model | Deutz TCD 3.6 HT StageV |
| Type | Water cooled turbo diesel |
| Rated power, SAE J1995 | 55 kW (74 hp ) @ 2200 rpm |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement Axial piston motors (4) with variable displacement |
| Vibration | Axial piston pumps (2) with variable displacement Axial piston motors (2) with constant dispacement |
| Steering | Gear pump with constant displacem. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/ Emergency brake |
Failsafe multidisc brake in both drums. |
| {phrase:compaction_ce} | |
| Split drums | Yes |
| Centrifugal force (high/low amplitude) | 79 kN/55 kN |
| Nominal amplitude (high/low) | 0.5 mm/0.2 mm |
| Static linear load (front/rear) | 26.0/26.0 kg/cm |
| Vibration frequency (high/low amplitude) | 48 Hz/62 Hz |
| Water tank volume | 750 l |
| {phrase:compaction_oscillation} | |
| Oscillation frequency | Hz |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4812155791 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 470PP81066 | DCA-A COMPACTION ANALYZER FOR ASPHALT |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 470PP81144 | LIGHTS, DRIVING, RIGHT HAND TRAFFIC. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4700938891 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4812155792 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 470PP81095 | ROTATING BEACON |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4812155158 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 470PP81170 | CHIP SPREADER, CONTAINER ONLY |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4812155698 | ||
| COMPACTION | Tandem-Vibrationswalzen | 4812161288 | 50 pieces. | |
| COMPACTION | Tandem-Vibrationswalzen | 4812161289 | 100 pieces. | |
| COMPACTION | Tandem-Vibrationswalzen | 4812161290 | 200 pieces. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 470PP81162 | TACHOGRAPH, ONLY INSTRUMENT |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4700950176 | (IIIA/T3) s/n to 0A013084 | |
| COMPACTION | Tandem-Vibrationswalzen | 4700950176 | (IIIA/T3) s/n to 0A013085 | |
| COMPACTION | Tandem-Vibrationswalzen | 4812159383 | (IIIB/T4i) No. Oil | |
| COMPACTION | Tandem-Vibrationswalzen | 4812159384 | (IIIB/T4i) Inc. Oil |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4700939076 | (IIIA/T3) s/n to 0A013084 | |
| COMPACTION | Tandem-Vibrationswalzen | 4700939076 | (IIIA/T3) s/n to 0A013085 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4700950175 | (IIIA/T3) s/n to 0A013084 | |
| COMPACTION | Tandem-Vibrationswalzen | 4700950175 | (IIIA/T3) s/n to 0A013085 | |
| COMPACTION | Tandem-Vibrationswalzen | 4812159381 | (IIIB/T4i) No. Oil | |
| COMPACTION | Tandem-Vibrationswalzen | 4812159382 | (IIIB/T4i) Inc. Oil |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4700950174 | (IIIA/T3) s/n to 0A013084 | |
| COMPACTION | Tandem-Vibrationswalzen | 4812159352 | (IIIA/T3) s/n to 0A013085 | |
| COMPACTION | Tandem-Vibrationswalzen | 4812159352 | (IIIB/T4i) Inc. Oil |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 4700939076 | (IIIA/T3) s/n to 0A013084 | |
| COMPACTION | Tandem-Vibrationswalzen | 4700939076 | (IIIA/T3) s/n to 0A013085 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | Tandem-Vibrationswalzen | 470PP81096 | std H3 |
