COMPACTION

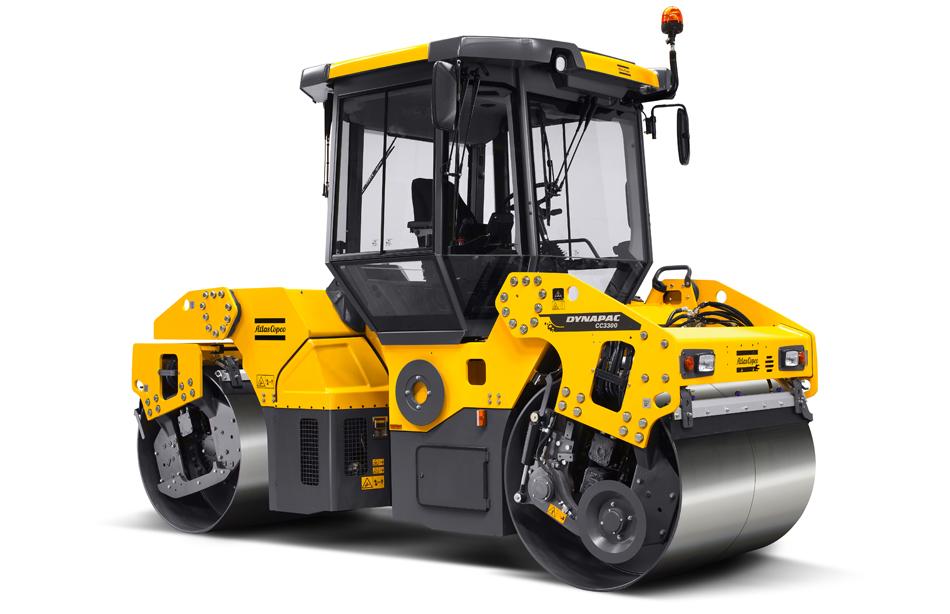

Dynapac CC3300 Double drum vibratory rollers

0
My comparison
  • Pictures

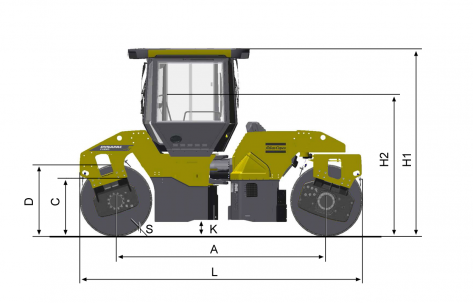

  • Dimensions
B. Width 1870 mm
D. Drum diameter 1150 mm
H1. Height, with ROPS/cab 2990 mm
H2. Height, w/o ROPS/cab 2270 mm
L. Length 4490 mm

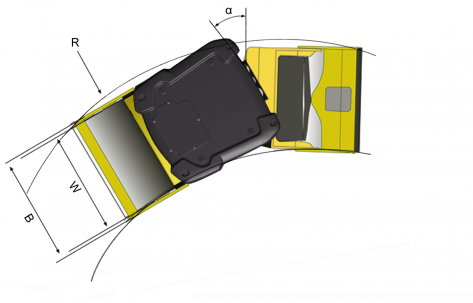

R. Turning radius, outside 5305 mm
S. Drum shell thickness 18 mm
Discontinued true
Operating Mass: 9000 kg
SLL (front/rear): 26.0/ 26.0 kg/cm
Compaction width: 1730 mm

Features & benefits

Dynapac Dyn@Lyzer
Dyn@Lyzer

The Dynapac compaction control and documentation system for soil and asphalt rollers

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Dynapac Eco mode
Eco mode

Big fuel savings with ECO!

Technical data

Masses
Max. operating mass 9900 kg
Operating mass (incl. ROPS) 9000 kg
Operating mass (incl. Cab) 9100 kg
Operating mass (incl. Cab and offset)
Module mass (front/rear) 4500 kg/ 4500 kg
Traction
Speed range 0-12 km/h
Vertical oscillation ±7°
Max. theoretical gradeability 35 %
Engine
Manufacturer/Model Deutz TCD 3.6 IIIB/T4i
Type Water cooled turbo Diesel
Rated power, SAE J1995 75 kW (100 hp ) @ 2,200 U/Min.
Alternative Engine
Manufacturer/Model Cummins QSB 3.3 IIIA/T3
Type Water cooled turbo Diesel
Rated power, SAE J1995 74 kW (99 hp ) @ 2,200 U/Min.
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement
Axial piston motors (4) with variable displacement
Vibration Axial piston pumps (2) with variable displacement
Axial piston motors (2) with constant dispacement
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe multidisc brake in both drums.
{phrase:compaction_oscillation}
Oscillation frequency Hz

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Drum gear
Type of fluid Volume Additional info
Dynapac Gear Oil 200 0,8 l P/N
5 l can 4812008274
20 l can 4812008275
209 l drum 4812008276
Drum oil
Type of fluid Volume Additional info
Dynapac Drum Oil 1000 14 l P/N
5 l can 4812156456
Engine
Type of fluid Volume Additional info
Dynapac Engine Oil 100 7 l for Cummins engine
8 l for Deutz engine		 P/N
5 l can 1615595300
20 l can 1615595400
209 l drum 1615595500
Hydraulic oil tank
Type of fluid Volume Additional info
Dynapac Hydraulic 300 40 l P/N
20 l can 9106230330
209 l drum 9106230331

Service Kits

Compaction Analyzer for asphalt (DCA-A)
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81066 DCA-A COMPACTION ANALYZER FOR ASPHALT
Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938891
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812155792
Edge press kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81129 EDGE PRESS, FRONT RIGHT MOUNTED
Edge press, joint cutter disc
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81101 EDGE PRESS DEVICE, JOINT CUTTER DISC, 150 MM 5.9 INCH
Scraper kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945908
Service kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106094 (IIIA/T3) Start up kit
COMPACTION Double drum vibratory rollers 4812159672 (IIIB/T4i) Start up kit
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106093 (IIIA/T3) Inc oil (Indian)
COMPACTION Double drum vibratory rollers 4700950176 (IIIA/T3) No. Oil (Indian)
COMPACTION Double drum vibratory rollers 4700950176 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4700950176 (IIIA/T3)
COMPACTION Double drum vibratory rollers 4812159383 (IIIB/T4i) No. Oil
COMPACTION Double drum vibratory rollers 4812159384 (IIIB/T4i) Inc. oil
Service kit , 250H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106091 (IIIA/T3) Inc oil (Indian)
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3) No. Oil (Indian)
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3)
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106092 (IIIA/T3) Inc oil (Indian)
COMPACTION Double drum vibratory rollers 4700950175 (IIIA/T3) No. Oil (Indian)
COMPACTION Double drum vibratory rollers 4700950175 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4700950175 (IIIA/T3)
COMPACTION Double drum vibratory rollers 4812159381 (IIIB/T4i) No. Oil
COMPACTION Double drum vibratory rollers 4812159382 (IIIB/T4i) Inc. oil
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106090 (IIIA/T3) Inc oil (Indian)
COMPACTION Double drum vibratory rollers 4700950174 (IIIA/T3) No. Oil (Indian)
COMPACTION Double drum vibratory rollers 4700950174 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4812159352 (Inc. Oil) (IIIA/T3)
COMPACTION Double drum vibratory rollers 4812159352 (IIIB/T4i) Inc. oil
Service kit , 750H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812106091 (IIIA/T3) Inc oil (Indian)
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3) No. Oil (Indian)
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3)
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812155158
Sprinkler kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812155698
COMPACTION Double drum vibratory rollers 4812161288 50 pieces.
COMPACTION Double drum vibratory rollers 4812161289 100 pieces.
COMPACTION Double drum vibratory rollers 4812161290 200 pieces
Tachograph kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81083 TACHOGRAPH
COMPACTION Double drum vibratory rollers 470PP81162 TACHOGRAPH, ONLY INSTRUMENT
Working lights kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81096 std H3

Spare parts manuals

Eager to see the spare parts of Dynapac CC3300?

Please Log in or Register to MyDynapac to get access.

Compaction data

AsphaltComp infoAsphaltComp info1572ACbaseC24on/off11294.9100.9on5863834off70.82017-08-15 15:14:25Dynapac CC3300ACbase_CAsphalt concrete, base course; CrushedAsphalt concrete, base course1572ACbaseN24off11295.4101.4on5914034off70.82017-08-15 15:14:25Dynapac CC3300ACbase_NAsphalt concrete, base course; NaturalAsphalt concrete, base course1572ACbindC24on/off11294.9100.9on5863834off70.82017-08-15 15:14:25Dynapac CC3300ACbind_CAsphalt concrete, binder course; CrushedAsphalt concrete, binder course1572ACbindN24off11295.4101.4on5914034off70.82017-08-15 15:14:25Dynapac CC3300ACbind_NAsphalt concrete, binder course; NaturalAsphalt concrete, binder course1572ACsurfC24on/off11294.9100.9on5863834off70.82017-08-15 15:14:25Dynapac CC3300ACsurf_CAsphalt concrete, surface course; CrushedAsphalt concrete, surface course1572ACsurfN24off11295.4101.4on5914034off70.82017-08-15 15:14:25Dynapac CC3300ACsurf_NAsphalt concrete, surface course; NaturalAsphalt concrete, surface course1572PAC24on/off11297104.5off5494off70.82017-08-15 15:14:25Dynapac CC3300PA_CPorous asphalt; CrushedPorous asphalt1572SMAC24on/off11294.9100.9on5863834off70.82017-08-15 15:14:25Dynapac CC3300SMA_CStone mastic asphalt; CrushedStone mastic asphalt2346041730611548865106925004000pdfwebtable
LEVEL II

Please or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac CC3300?

Please Log in or Register to MyDynapac to get access.
