Dynapac CC3200 Double drum vibratory rollers

0
My comparison
  • Experience
  • Pictures

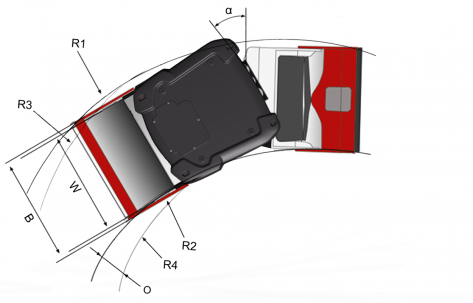

  • Dimensions
B. Width 1850 mm
D. Drum diameter 1150 mm
H1. Height, with ROPS/cab 2990 mm
L. Length 4490 mm
O. Off-set 335 mm
R1. Turning radius, outside 6690 mm
R2. Turning radius, inside 4960 mm
R3. Turning radius with off-set, outside 5000 mm
R4. Turning radius with off-set, inside 3270 mm
S. Drum shell thickness 20 mm
Discontinued true
Operating Mass: 8150 kg
SLL (front/rear): 23.6kg/cm/23.6 kg/cm
Compaction width: 1730 mm

Features & benefits

Dynapac Dyn@Lyzer
Dyn@Lyzer

The Dynapac compaction control and documentation system for soil and asphalt rollers

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Dynapac Eco mode
Eco mode

Big fuel savings with ECO!

Technical data

Masses
Max. operating mass 9450 kg
Operating mass (incl. ROPS) 8150 kg
Operating mass (incl. Cab) 8250 kg
Operating mass (incl. Cab and offset)
Module mass (front/rear) 4075 kg/ 4075 kg
Traction
Speed range 0-12 km/h
Vertical oscillation ±7°
Max. theoretical gradeability 37 %
Engine
Manufacturer / Model Deutz TCD 3.6 HT T4f
Type Water cooled turbo Diesel
Rated power, SAE J1995 55 kW (74 hp ) @ 2200 rpm
Fuel tank capacity 130 l
Alternative Engine
Manufacturer / Model Cummins QSB 3.3 IIIA/T3
Type Water cooled turbo diesel
Rated power, SAE J1995 74 kW (99 hp ) @ 2200 rpm
Alternative Engine
Manufacturer / Model Deutz TCD 3.6 HT StageV
Type Water cooled turbo diesel
Rated power, SAE J1995 55 kW (74 hp ) @ 2200 rpm
Hydraulic system
Driving Axial piston pump with variable displacement.
Axial piston motors (2) with variable displacement.
Vibration Axial piston pumps(2) with variable displacem.
Axial piston motors(2) with const. displacem.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe multidisc brake in both drums.
{phrase:compaction_ce}
Centrifugal force (high/low amplitude) 77 kN/43 kN
Nominal amplitude (high/low) 0.6 mm/0.2 mm
Static linear load (front/rear) 23.6/23.6 kg/cm
Vibration frequency (high/low amplitude) 48 Hz/62 Hz
Water tank volume 750 l
{phrase:compaction_oscillation}
Oscillation frequency Hz

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Chip spreader kit
Category Subcategory P/N Additional info
COMPACTION Tandemasfaltvältar 470PP81170 CHIP SPREADER, CONTAINER ONLY
Compaction Analyzer for asphalt (DCA-A)
Category Subcategory P/N Additional info
COMPACTION Tandemasfaltvältar 470PP81066 DCA-A COMPACTION ANALYZER FOR ASPHALT
Driving lights kit
Category Subcategory P/N Additional info
COMPACTION Tandemasfaltvältar 470PP81144 LIGHTS, DRIVING, RIGHT HAND TRAFFIC.
Exenteraxelsats
Category Subcategory P/N Additional info
COMPACTION Tandemasfaltvältar 4812155792
Gummielementsats
Category Subcategory P/N Additional info
COMPACTION Tandemasfaltvältar 4812155158
Ramlagersats - vals
Category Subcategory P/N Additional info
COMPACTION Tandemasfaltvältar 4700938891
Rotating beacon kit
Category Subcategory P/N Additional info
COMPACTION Tandemasfaltvältar 470PP81095 ROTATING BEACON
Servicesats , 1000H
Category Subcategory P/N Additional info
COMPACTION Tandemasfaltvältar 4700950176 (IIIA/T3) s/n to 0A013084
COMPACTION Tandemasfaltvältar 4700950176 (IIIA/T3) s/n to 0A013085
COMPACTION Tandemasfaltvältar 4812159383 (IIIB/T4i) No. Oil
COMPACTION Tandemasfaltvältar 4812159384 (IIIB/T4i) Inc. Oil
Servicesats , 250H
Category Subcategory P/N Additional info
COMPACTION Tandemasfaltvältar 4700939076 (IIIA/T3) s/n to 0A013084
COMPACTION Tandemasfaltvältar 4700939076 (IIIA/T3) s/n to 0A013085
Servicesats , 500H
Category Subcategory P/N Additional info
COMPACTION Tandemasfaltvältar 4700950175 (IIIA/T3) s/n to 0A013084
COMPACTION Tandemasfaltvältar 4700950175 (IIIA/T3) s/n to 0A013085
COMPACTION Tandemasfaltvältar 4812159381 (IIIB/T4i) No. Oil
COMPACTION Tandemasfaltvältar 4812159382 (IIIB/T4i) Inc. Oil
Servicesats , 50H
Category Subcategory P/N Additional info
COMPACTION Tandemasfaltvältar 4700950174 (IIIA/T3) s/n to 0A013084
COMPACTION Tandemasfaltvältar 4812159352 (IIIA/T3) s/n to 0A013085
COMPACTION Tandemasfaltvältar 4812159352 (IIIB/T4i) Inc. Oil
Servicesats , 750H
Category Subcategory P/N Additional info
COMPACTION Tandemasfaltvältar 4700939076 (IIIA/T3) s/n to 0A013084
COMPACTION Tandemasfaltvältar 4700939076 (IIIA/T3) s/n to 0A013085
Sprinklersats
Category Subcategory P/N Additional info
COMPACTION Tandemasfaltvältar 4812155698
COMPACTION Tandemasfaltvältar 4812161288 50 pieces.
COMPACTION Tandemasfaltvältar 4812161289 100 pieces.
COMPACTION Tandemasfaltvältar 4812161290 200 pieces.
Tachograph kit
Category Subcategory P/N Additional info
COMPACTION Tandemasfaltvältar 470PP81162 TACHOGRAPH, ONLY INSTRUMENT
Valsskrapsats
Category Subcategory P/N Additional info
COMPACTION Tandemasfaltvältar 4812155791
Working lights kit
Category Subcategory P/N Additional info
COMPACTION Tandemasfaltvältar 470PP81096 std H3

Spare parts manuals

Eager to see the spare parts of Dynapac CC3200?

Please Log in or Register to MyDynapac to get access.

Compaction data

AsphaltComp infoAsphaltComp info1571ACbaseC24on/off11295.1101on5904234off70.82017-08-15 15:14:25Dynapac CC3200ACbase_CAsphalt concrete, base course; CrushedAsphalt concrete, base course1571ACbaseN24off11295.6101.5on5954534off70.82017-08-15 15:14:25Dynapac CC3200ACbase_NAsphalt concrete, base course; NaturalAsphalt concrete, base course1571ACbindC24on/off11295.1101on5904234off70.82017-08-15 15:14:25Dynapac CC3200ACbind_CAsphalt concrete, binder course; CrushedAsphalt concrete, binder course1571ACbindN24off11295.6101.5on5954534off70.82017-08-15 15:14:25Dynapac CC3200ACbind_NAsphalt concrete, binder course; NaturalAsphalt concrete, binder course1571ACsurfC24on/off11295.1101on5904234off70.82017-08-15 15:14:25Dynapac CC3200ACsurf_CAsphalt concrete, surface course; CrushedAsphalt concrete, surface course1571ACsurfN24off11295.6101.5on5954534off70.82017-08-15 15:14:25Dynapac CC3200ACsurf_NAsphalt concrete, surface course; NaturalAsphalt concrete, surface course1571PAC24on/off11297.4104.8off5494off70.82017-08-15 15:14:25Dynapac CC3200PA_CPorous asphalt; CrushedPorous asphalt1571SMAC24on/off11295.1101on5904234off70.82017-08-15 15:14:25Dynapac CC3200SMA_CStone mastic asphalt; CrushedStone mastic asphalt2346041730611548865106925004000pdfwebtable
LEVEL II

Please or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac CC3200?

Please Log in or Register to MyDynapac to get access.
