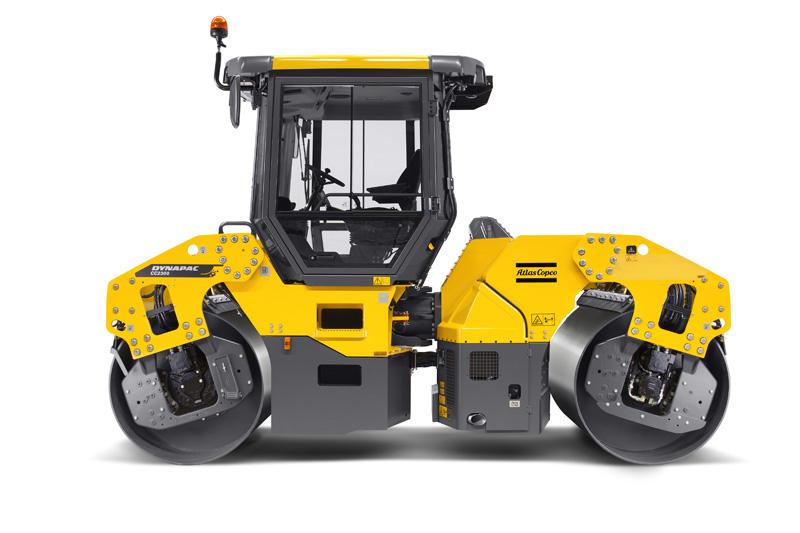

Dynapac CC3200 Double drum vibratory rollers

0
My comparison
  • Pictures

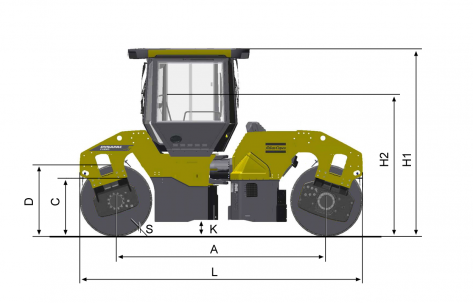

  • Dimensions
B. Width 1870 mm
D. Drum diameter 1150 mm
H1. Height, with ROPS/cab 2990 mm
H2. Height, w/o ROPS/cab 2275 mm
L. Length 4490 mm
O. Off-set 13 in

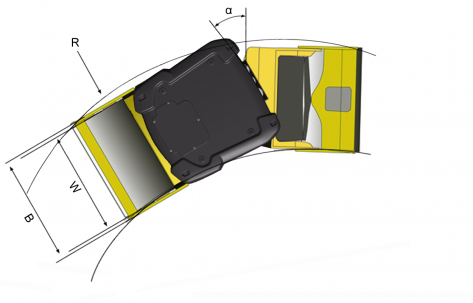

R. Turning radius, outside 5305 mm
R1. Turning radius, outside 263 in
R2. Turning radius, inside 195 in
R3. Turning radius with off-set, outside 197 in
R4. Turning radius with off-set, inside 129 in
S. Drum shell thickness 20 mm
Discontinued true
Operating Mass: 8150 kg
SLL (front/rear): N/A
Compaction width: 1730 mm

Features & benefits

Dynapac Dyn@Lyzer
Dyn@Lyzer

The Dynapac compaction control and documentation system for soil and asphalt rollers

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Dynapac Eco mode
Eco mode

Big fuel savings with ECO!

Technical data

Masses
Max. operating mass 9450 kg
Operating mass (incl. ROPS) 8150 kg
Operating mass (incl. Cab) 8250 kg
Operating mass (incl. Cab and offset)
Module mass (front/rear) 4075 kg/ 4075 kg
Traction
Speed range 0 - 12 km/h
Vertical oscillation ±7°
Max. theoretical gradeability 37 %
Engine
Manufacturer/Model Deutz TCD 3.6 IIIB/T4i
Type Water cooled turbo Diesel
Rated power, SAE J1995 75 kW (100 hp ) @ 2200 rpm
Rated power, SAE J1995
Fuel tank capacity 130 l
Alternative Engine
Manufacturer/Model Cummins QSB 3.3 IIIA/T3
Type Water cooled turbo Diesel
Rated power, SAE J1995 74 kW (99 hp ) @ 2200 rpm
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement.
Axial piston motors (2) with variable displacement.
Vibration Axial piston pumps(2) with variable displacem.
Axial piston motors(2) with const. displacem.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe multidisc brake in both drums.
{phrase:compaction_ce}
Centrifugal force (high/low amplitude) 77 kN//43 kN
Nominal amplitude (high/low) 0.6 mm/0.2 mm
Vibration frequency (high/low amplitude) 48 Hz/62 Hz
{phrase:compaction_oscillation}
Oscillation frequency Hz

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Drum gear
Type of fluid Volume Additional info
Dynapac Gear Oil 200 1,7 l P/N
5 l can 4812161879
20 l can 4812161880
209 l drum 4812161881
Drum oil
Type of fluid Volume Additional info
Dynapac Drum Oil 1000 9 l P/N
5 l can 4812156456
Engine
Type of fluid Volume Additional info
Dynapac Engine Oil 100 7 l for Cummins engine
8 l for Deutz engine		 P/N
5 l can 1915595300
20 l can 1915595400
209 l drum 1915595500
Hydraulic oil tank
Type of fluid Volume Additional info
Dynapac Hydraulic 300 40 l P/N
20 l can 9106230330
209 l drum 9106230331

Service Kits

Compaction Analyzer for asphalt (DCA-A)
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81066 DCA-A COMPACTION ANALYZER FOR ASPHALT
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945722
Edge press, joint cutter disc
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81100 EDGE PRESS DEVICE, JOINT CUTTER DISC, 120 MM 4.7 INCH
COMPACTION Double drum vibratory rollers 470PP81101 EDGE PRESS DEVICE, JOINT CUTTER DISC, 150 MM 5.9 INCH
Rotating beacon kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81095 ROTATING BEACON
Scraper kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945908
Scraper kit, 500H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812159382 (IIIB/T4i) Inc. Oil
Scraper kit, 50H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812159352 (IIIB/T4i) Inc. Oil
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700950176 (IIIA/T3)
COMPACTION Double drum vibratory rollers 4812159383 (IIIB/T4i) No. Oil
Service kit , 250H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3)
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700950175 (IIIA/T3)
COMPACTION Double drum vibratory rollers 4812159381 (IIIB/T4i) No. Oil
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812159380 (IIIA/T3)
Service kit , 750H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700939076 (IIIA/T3)
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812156382 Split drum
Sprinkler kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812155698
COMPACTION Double drum vibratory rollers 4812161288 50 pieces.
COMPACTION Double drum vibratory rollers 4812161289 100 pieces.
COMPACTION Double drum vibratory rollers 4812161290 200 pieces.
Tachograph kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81083 TACHOGRAPH
COMPACTION Double drum vibratory rollers 470PP81162 TACHOGRAPH, ONLY INSTRUMENT
Working lights kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81096 std H3

Spare parts manuals

Eager to see the spare parts of Dynapac CC3200?

Please Log in or Register to MyDynapac to get access.

Compaction data

AsphaltComp infoAsphaltComp info1571ACbaseC24on/off11295.1101on5904234off70.82017-08-15 15:14:25Dynapac CC3200ACbase_CAsphalt concrete, base course; CrushedAsphalt concrete, base course1571ACbaseN24off11295.6101.5on5954534off70.82017-08-15 15:14:25Dynapac CC3200ACbase_NAsphalt concrete, base course; NaturalAsphalt concrete, base course1571ACbindC24on/off11295.1101on5904234off70.82017-08-15 15:14:25Dynapac CC3200ACbind_CAsphalt concrete, binder course; CrushedAsphalt concrete, binder course1571ACbindN24off11295.6101.5on5954534off70.82017-08-15 15:14:25Dynapac CC3200ACbind_NAsphalt concrete, binder course; NaturalAsphalt concrete, binder course1571ACsurfC24on/off11295.1101on5904234off70.82017-08-15 15:14:25Dynapac CC3200ACsurf_CAsphalt concrete, surface course; CrushedAsphalt concrete, surface course1571ACsurfN24off11295.6101.5on5954534off70.82017-08-15 15:14:25Dynapac CC3200ACsurf_NAsphalt concrete, surface course; NaturalAsphalt concrete, surface course1571PAC24on/off11297.4104.8off5494off70.82017-08-15 15:14:25Dynapac CC3200PA_CPorous asphalt; CrushedPorous asphalt1571SMAC24on/off11295.1101on5904234off70.82017-08-15 15:14:25Dynapac CC3200SMA_CStone mastic asphalt; CrushedStone mastic asphalt2346041730611548865106925004000pdfwebtable
