Dynapac CC2300 Double drum vibratory rollers

0
My comparison
  • Experience
  • Pictures
  • Dimensions

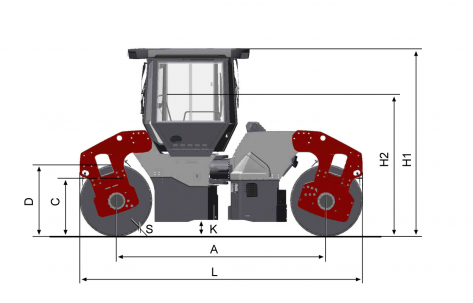

B. Width
D. Drum diameter 1150 mm
H1. Height, with ROPS/cab 2990 mm
L. Length 4490 mm
O. Off-set 335 mm

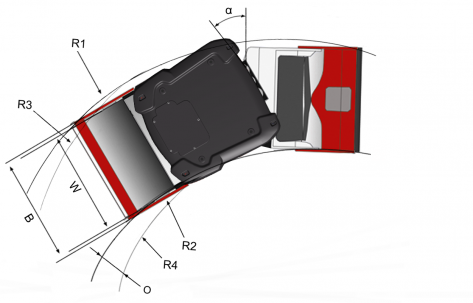

R1. Turning radius, outside 6570 mm
R2. Turning radius, inside 5070 mm
R3. Turning radius with off-set, outside 4890 mm
R4. Turning radius with off-set, inside 3390 mm
S. Drum shell thickness 17 mm
Discontinued true
Operating Mass: 8500 kg
SLL (front/rear): 28.3/ 28.3 kg/cm
Compaction width: 1500 mm

Features & benefits

Dynapac Dyn@Lyzer
Dyn@Lyzer

The Dynapac compaction control and documentation system for soil and asphalt rollers

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Dynapac Eco mode
Eco mode

Big fuel savings with ECO!

Technical data

Masses
Max. operating mass 9400 kg
Operating mass (incl. ROPS) 8500 kg
Operating mass (incl. Cab) 8700 kg
Operating mass (incl. Cab and offset)
Module mass (front/rear) 4250 kg/ 4250 kg
Traction
Speed range 0 - 12 km/h
Vertical oscillation ±7°
Max. theoretical gradeability 39 %
Engine
Manufacturer / Model Deutz TCD 3.6 HT T4f
Type Water cooled turbo Diesel
Rated power, SAE J1995 55 kW (74 hp ) @ 2200 rpm
Fuel tank capacity 130 l
Alternative Engine
Manufacturer / Model Cummins QSB 3.3 IIIA/T3
Type Water cooled turbo diesel
Rated power, SAE J1995 74 kW (99 hp ) @ 2200 rpm
Alternative Engine
Manufacturer / Model Deutz TCD 3.6 HT StageV
Type Water cooled turbo diesel
Rated power, SAE J1995 55 kW (74 hp ) @ 2200 rpm
Hydraulic system
Driving Axial piston pump with variable displacement
Axial piston motors (4) with variable displacement
Vibration Axial piston pumps (2) with variable displacement
Axial piston motors (2) with constant dispacement
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe multidisc brake in both drums.
{phrase:compaction_ce}
Centrifugal force (high/low amplitude) 72 kN/51 kN
Vibration frequency (high/low amplitude) 48 Hz/62 Hz
{phrase:compaction_oscillation}
Oscillation frequency Hz

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Coolant - no cab
Type of fluid Volume Additional info
Dynapac Coolant 100 21,4 l P/N
25 l can 4812161854
Coolant - with cab
Type of fluid Volume Additional info
Dynapac Coolant 100 23,6 l P/N
25 l can 4812161854
Drum gear
Type of fluid Volume Additional info
Dynapac Gear Oil 1000 1,2 l P/N
5 l can 4812161891
20 l can 4812161892
209 l drum 4812161893
Drum oil
Type of fluid Volume Additional info
Dynapac Drum Oil 1000 14 l P/N
5 l can 4812161887
20 l can 4812161888
209 l drum 4812161889
Engine
Type of fluid Volume Additional info
Dynapac engine Oil 200 11 l P/N
5 l can 4812161855
20 l can 4812161856
209 l drum 4812161857
Grease
Type of fluid Volume Additional info
Dynapac Roller Grease - P/N
0.4 kgs cartridge 4812030096
Hydraulic oil tank
Type of fluid Volume Additional info
Dynapac Hydraulic 300 40 l P/N
5 l can 4812161867
20 l can 4812161868
209 l drum 4812161869

Service Kits

Compaction Analyzer for asphalt (DCA-A)
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81163 DCA-A COMPACTION ANALYZER FOR ASPHALT, ONLY EQUIPMENT
Driving lights kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81144
Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938891
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945903
Edge press kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81098 EDGE PRESS, FRONT RIGHT MOUNTED.
Edge press, joint cutter disc
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81100 EDGE PRESS DEVICE, JOINT CUTTER DISC, 120 MM 4.7 INCH
Rotating beacon kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81095 ROTATING BEACON
Service kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812159671 (IIIA/T3) Start up kit
COMPACTION Double drum vibratory rollers 4812159669 (IIIB/T4i) Start up kit
COMPACTION Double drum vibratory rollers 4812274590 (IIIA/T3) 1000 Hours Start up kit (exept chinese market)
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812159355 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4812159358 (IIIA/T3) Inc Oil
COMPACTION Double drum vibratory rollers 4812159355 (IIIB/T4i) No. Oil
COMPACTION Double drum vibratory rollers 4812159358, 4812159356 (IIIB/T4i) Inc. oil
COMPACTION Double drum vibratory rollers 4700945807 (IIIA/T3)
COMPACTION Double drum vibratory rollers 4812160269 (IIIA/T3)
COMPACTION Double drum vibratory rollers 4700945807 (No Oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
COMPACTION Double drum vibratory rollers 4812271801 (Except China market) (Inc oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
Service kit , 2000H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812159361 (IIIA/T3) Inc Oil
COMPACTION Double drum vibratory rollers 4812159361, 4812159359 (IIIB/T4i) Inc. oil
Service kit , 250H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812274593 (No Oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
COMPACTION Double drum vibratory rollers 4812271799 (Except China market) (Inc oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812159353 (IIIA/T3) No. Oil
COMPACTION Double drum vibratory rollers 4812159354 (IIIA/T3) Inc Oil
COMPACTION Double drum vibratory rollers 4812159353 (IIIB/T4i) No. Oil
COMPACTION Double drum vibratory rollers 4812159354 (IIIB/T4i) Inc. oil
COMPACTION Double drum vibratory rollers 4700945806 (IIIA/T3)
COMPACTION Double drum vibratory rollers 4700945806 (IIIA/T3)
COMPACTION Double drum vibratory rollers 4700945806 (No Oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
COMPACTION Double drum vibratory rollers 4812271800 (Except China market) (Inc oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812159352 (IIIA/T3) Inc Oil
COMPACTION Double drum vibratory rollers 4812159352 (IIIB/T4i) Inc. oil
COMPACTION Double drum vibratory rollers 4700945805 (IIIA/T3)
COMPACTION Double drum vibratory rollers 4812159352 (IIIA/T3)
COMPACTION Double drum vibratory rollers 4700945805 (No Oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
COMPACTION Double drum vibratory rollers 4700945805, 4812271798 (Except China market) (Inc oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
Service kit , 750H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812274593 (No Oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
COMPACTION Double drum vibratory rollers 4812271799 (Except China market) (Inc oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945904
Sprinkler kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700945908
COMPACTION Double drum vibratory rollers 4812161288 50 pieces.
COMPACTION Double drum vibratory rollers 4812161289 100 pieces.
COMPACTION Double drum vibratory rollers 4812161290 200 pieces.
Tachograph kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81083 TACHOGRAPH
COMPACTION Double drum vibratory rollers 470PP81162 TACHOGRAPH, ONLY INSTRUMENT
Working lights kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 470PP81096 Std H3 lights
COMPACTION Double drum vibratory rollers 470PP81097 Xenon lights

Spare parts manuals

Eager to see the spare parts of Dynapac CC2300?

Please Log in or Register to MyDynapac to get access.

Compaction data
