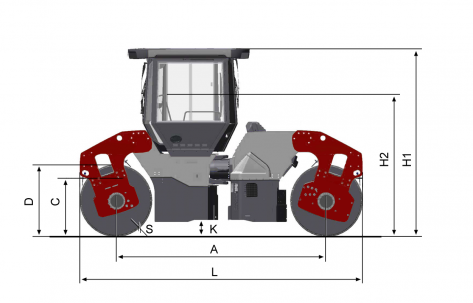

| A. Wheelbase | 3,340 mm |
|---|---|
| B. Width | 1,620 mm |
| C. Curb clearance | 715 mm |
| D. Drum diameter | 1150 mm |
| H1. Height, with ROPS/cab | 2990 mm |
| K. Ground clearance | 270 mm |
| L. Length | 4490 mm |
| O. Off-set | 335 mm |

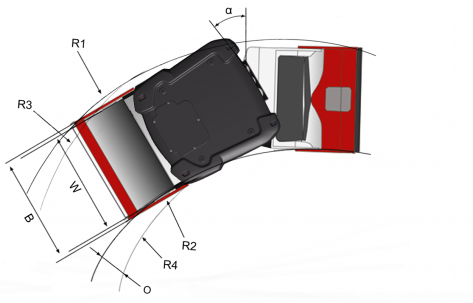

| R1. Turning radius, outside | 6570 mm |
| R2. Turning radius, inside | 5070 mm |
| R3. Turning radius with off-set, outside | 4890 mm |
| R4. Turning radius with off-set, inside | 3390 mm |
| S. Drum shell thickness | 20 mm |
| W. Drum width | 1500 mm |
| α. Steering angle | ±32° |
| Masses | |
| Max. operating mass | 9000 kg |
|---|---|
| Operating mass (incl. Canopy) | 7400 kg |
| Operating mass (incl. ROPS) | 7600 kg |
| Operating mass (incl. Cab) | 7800 kg |
| Operating mass (incl. Cab and offset) | |
| Module mass (front/rear) | 3800 kg/ 3800 kg |
| Traction | |
| Speed range | 0-12 km/h |
| Vertical oscillation | ±7° |
| Max. theoretical gradeability | 42 % |
| Turning radius, inside | 5070 mm |
| Turning radius, outside | 6570 mm |
| Off-set | 335 mm |
| Engine | |
| Manufacturer/Model | Deutz TCD 3.6 HT T4f |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 55 kW (74 hp ) @ 2200 rpm |
| Fuel tank capacity | 130 l |
| Alternative Engine | |
| Manufacturer/Model | Cummins QSB 3.3 IIIA/T3 |
| Type | Water cooled turbo diesel |
| Rated power, SAE J1995 | 1. 74kW (99hp) @ 2200 rpm |
| Fuel tank capacity | 130 l |
| Alternative Engine | |
| Manufacturer/Model | Deutz TCD 3.6 HT StageV |
| Type | Water cooled turbo diesel |
| Rated power, SAE J1995 | 55 kW (74 hp ) @ 2200 rpm |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement. Axial piston motors (2) with variable displacement. |
| Vibration | Axial piston pumps(2) with variable displacem. Axial piston motors(2) with const. displacem. |
| Steering | Gear pump with constant displacem. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/ Emergency brake |
Failsafe multidisc brake in both drums. |
| {phrase:compaction_ce} | |
| Centrifugal force (high/low amplitude) | 72 kN/38 kN |
| Nominal amplitude (high/low) | 0.7 mm/0.2 mm |
| Static linear load (front/rear) | 25.3/25.3 kg/cm |
| Vibration frequency (high/low amplitude) | 48 Hz/62 Hz |
| Water tank volume | 750 l |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4812940662 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4812157270 | For Tier 3. | |
| COMPACTION | 单钢轮振动压路机 | 4812313555 | (IIIA/T3) | |
| COMPACTION | 单钢轮振动压路机 | 4812273271 | For Tier 2 DCEC Engine. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4812157268 | For Tier 3. | |
| COMPACTION | 单钢轮振动压路机 | 4812313538 | (IIIA/T3) | |
| COMPACTION | 单钢轮振动压路机 | 4812271760 | For Tier 2 DCEC Engine. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4812157269 | For Tier 3. | |
| COMPACTION | 单钢轮振动压路机 | 4812313554 | (IIIA/T3) | |
| COMPACTION | 单钢轮振动压路机 | 4812273270 | For Tier 2 DCEC Engine. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4700945652 | For Tier 3. | |
| COMPACTION | 单钢轮振动压路机 | 4812313537 | (IIIA/T3) | |
| COMPACTION | 单钢轮振动压路机 | 4812273269 | For Tier 2 DCEC Engine. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4812157268 | For Tier 3. | |
| COMPACTION | 单钢轮振动压路机 | 4812313538 | (IIIA/T3) | |
| COMPACTION | 单钢轮振动压路机 | 4812271760 | For Tier 2 DCEC Engine. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4700938883 | ||
| COMPACTION | 单钢轮振动压路机 | 4812271761 | Plus kit. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4700938562 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4700938891 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| COMPACTION | 单钢轮振动压路机 | 4700945657 |
