Dynapac CC2200 Double drum vibratory rollers

Pictures

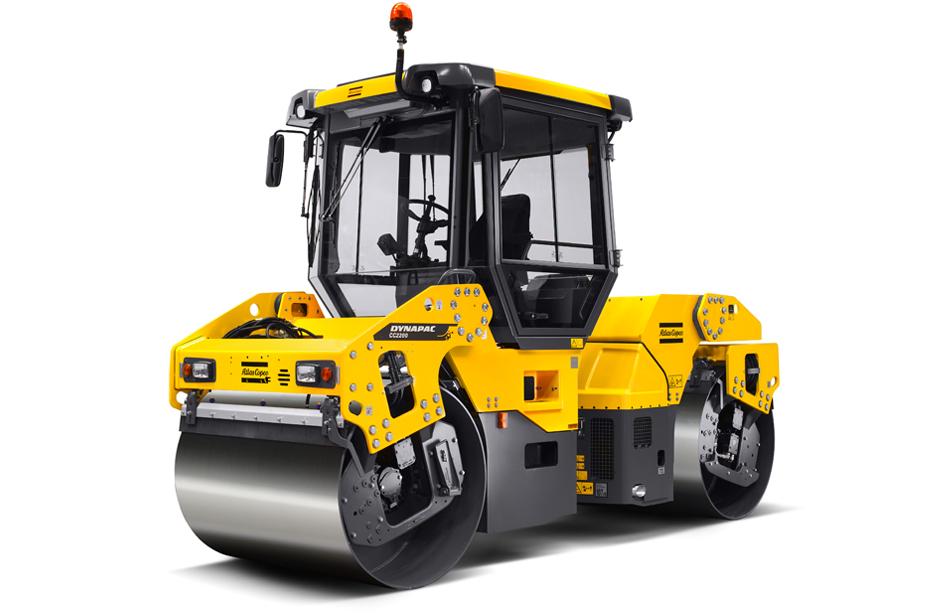

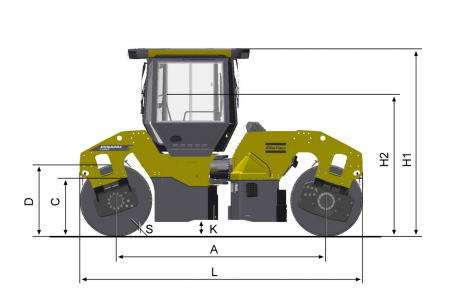

Dimensions

D. Drum diameter	1150 mm
H1. Height, with ROPS/cab	2990 mm
H2. Height, w/o ROPS/cab	2275 mm
L. Length	4490 mm
O. Off-set	335 mm

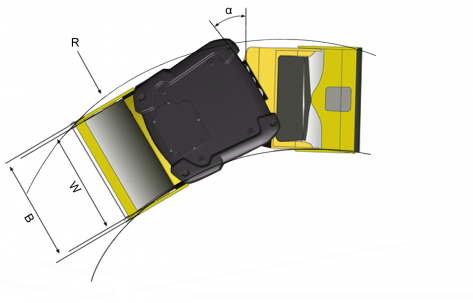

R. Turning radius, outside	5190 mm
R1. Turning radius, outside	6570 mm
R2. Turning radius, inside	5070 mm
R3. Turning radius with off-set, outside	4890 mm
R4. Turning radius with off-set, inside	3390 mm
S. Drum shell thickness	20 mm

These tandem rollers are designed with efficiency in mind - application efficiency, operator efficiency, compaction control efficiency and service efficiency. Performance, visibility, operators comfort, compaction control and serviceability for the new CC line will appeal to owners, operators and service crews. The environmental benefits appeal to everyone. All models have high frequency vibration as standard. There is a number of features to the CC rollers to make servicing quick and easy, ensuring maximum uptime.

Operating Mass: 7600 kg

SLL (front/rear): 25.3/ 25.3 kg/cm

Compaction width: 1500 mm

Features & benefits

Technical data

Masses
Max. operating mass	9000 kg
Operating mass (incl. ROPS)	7600 kg
Operating mass (incl. Cab)	7800 kg
Operating mass (incl. Cab and offset)
Module mass (front/rear)	3800 kg/ 3800 kg
Traction
Speed range	0 - 12 km/h
Vertical oscillation	±7°
Max. theoretical gradeability	42 %
Engine
Type	Water cooled turbo diesel
Rated power, SAE J1995
Alternative Engine
Manufacturer/Model	Cummins QSB 3.3 IIIA/T3
Type	Water cooled turbo diesel
Rated power, SAE J1995	74 kW (99 hp ) @ 2,200 U/Min.
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving	Axial piston pump with variable displacement. Axial piston motors (2) with variable displacement.
Vibration	Axial piston pumps(2) with variable displacem. Axial piston motors(2) with const. displacem.
Steering	Gear pump with constant displacem.
Service brake	Hydrostatic in forward and reverse lever.
Parking/ Emergency brake	Failsafe multidisc brake in both drums.
{phrase:compaction_oscillation}
Oscillation frequency	Hz

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Drum gear

Type of fluid	Volume	Additional info
Dynapac Gear Oil 200	1,7 l	P/N 5 l can 4812161879 20 l can 4812161880 209 l drum 4812161881

Drum oil

Type of fluid	Volume	Additional info
Dynapac Drum Oil 1000	6,4 l	P/N 5 l can 4812156456

Engine

Type of fluid	Volume	Additional info
Dynapac Engine Oil 100	7 l for Cummins engine 8 l for Deutz engine	P/N 5 l can 1915595300 20 l can 1915595400 209 l drum 1915595500

Hydraulic oil tank

Type of fluid	Volume	Additional info
Dynapac Hydraulic 300	40 l	P/N 20 l can 9106230330 209 l drum 9106230331

Service Kits

Compaction Analyzer for asphalt (DCA-A)

Category	Subcategory	P/N	Additional info
COMPACTION	Double drum vibratory rollers	470PP81066	DCA-A COMPACTION ANALYZER FOR ASPHALT

Eccentric shaft kit

Category	Subcategory	P/N	Additional info
COMPACTION	Double drum vibratory rollers	4700945722

Edge press, joint cutter disc

Category	Subcategory	P/N	Additional info
COMPACTION	Double drum vibratory rollers	470PP81100	EDGE PRESS DEVICE, JOINT CUTTER DISC, 120 MM 4.7 INCH
COMPACTION	Double drum vibratory rollers	470PP81101	EDGE PRESS DEVICE, JOINT CUTTER DISC, 150 MM 5.9 INCH

Rotating beacon kit

Category	Subcategory	P/N	Additional info
COMPACTION	Double drum vibratory rollers	470PP81095	ROTATING BEACON

Scraper kit

Category	Subcategory	P/N	Additional info
COMPACTION	Double drum vibratory rollers	4812155791

Service kit

Category	Subcategory	P/N	Additional info
COMPACTION	Double drum vibratory rollers	4812159673	(IIIB/T4i) Start up kit

Service kit , 1000H

Category	Subcategory	P/N	Additional info
COMPACTION	Double drum vibratory rollers	4700950176	(IIIA/T3)
COMPACTION	Double drum vibratory rollers	4812159383	(IIIB/T4i) NO. Oil
COMPACTION	Double drum vibratory rollers	4812159385	(IIIB/T4i) Inc. Oil

Service kit , 250H

Category	Subcategory	P/N	Additional info
COMPACTION	Double drum vibratory rollers	4700939076	(IIIA/T3)

Service kit , 500H

Category	Subcategory	P/N	Additional info
COMPACTION	Double drum vibratory rollers	4700950175	(IIIA/T3)
COMPACTION	Double drum vibratory rollers	4812159381	(IIIB/T4i) NO. Oil
COMPACTION	Double drum vibratory rollers	4812159382	(IIIB/T4i) Inc. Oil

Service kit , 50H

Category	Subcategory	P/N	Additional info
COMPACTION	Double drum vibratory rollers	4812159380	(IIIA/T3)
COMPACTION	Double drum vibratory rollers	4812159380	(IIIB/T4i) Inc. Oil

Service kit , 750H

Category	Subcategory	P/N	Additional info
COMPACTION	Double drum vibratory rollers	4700939076	(IIIA/T3)

Shock absorber kit

Category	Subcategory	P/N	Additional info
COMPACTION	Double drum vibratory rollers	4812156382	Split Drum

Sprinkler kit

Category	Subcategory	P/N	Additional info
COMPACTION	Double drum vibratory rollers	4812155698
COMPACTION	Double drum vibratory rollers	4812161288	50 pieces.
COMPACTION	Double drum vibratory rollers	4812161289	100 pieces.
COMPACTION	Double drum vibratory rollers	4812161290	200 pieces.

Tachograph kit

Category	Subcategory	P/N	Additional info
COMPACTION	Double drum vibratory rollers	470PP81083	TACHOGRAPH
COMPACTION	Double drum vibratory rollers	470PP81162	TACHOGRAPH, ONLY INSTRUMENT

Working lights kit

Category	Subcategory	P/N	Additional info
COMPACTION	Double drum vibratory rollers	470PP81096	std H3

Spare parts manuals

Eager to see the spare parts of Dynapac CC2200?

Please Log in or Register to MyDynapac to get access.

Compaction data

LEVEL II

Please Log in or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac CC2200?

Please Log in or Register to MyDynapac to get access.
