Dynapac CC1300C Combi rollers

0
My comparison
  • Pictures

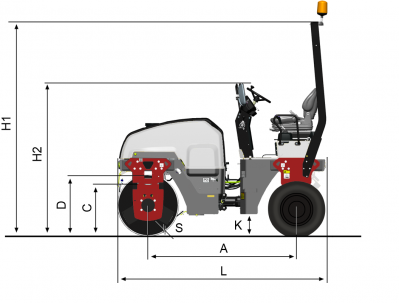

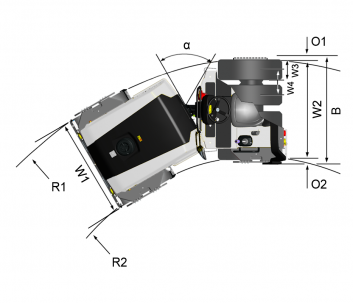

  • Dimensions
A. Wheelbase 1925 mm
B. Width 1370 mm
C. Curb clearance 600 mm
D. Drum diameter 802 mm
H1. Height, with ROPS 2750 mm
H2. Height, w/o ROPS/cab 1855 mm
K. Ground clearance 260 mm
L. Length 2725 mm
O1. Overhang, right 44 mm
O2. Overhang, left 44 mm
R1. Turning radius, outside 4240 mm
R2. Turning radius, inside 2940 mm
S. Drum shell thickness 16 mm
W1. Drum width 1300 mm
W2. Width, wheel module 1282 mm
W3. Width, tyre 285 mm
W4. Wheel track 305 mm
α. Steering angle ±30°
Discontinued true
Operating Mass: 3750 kg
Static linear load: 14.8 kg/cm
Compaction width: 1300 mm

Technical data

Masses
Max. operating mass 3900 kg
Operating mass (incl. ROPS) 3750 kg
Module mass (front/rear) 1930 kg/ 1820 kg
Traction
Speed range 0-10 km/h
Max. theoretical gradeability 37 %
Engine
Manufacturer/Model Kubota V2203-M (IIIA)
Type Water cooled diesel engine
Rated power, SAE J1995 34 kW (45 hp ) @ 2600 U/Min.
Fuel tank capacity 50 l
Alternative Engine
Manufacturer/Model Kubota D1803-CR-TE4B(T4f)
Type Water cooled diesel engine
Rated power, SAE J1995 37 kW (49 hp) @ 2700 rpm
Alternative Engine
Manufacturer/Model Kubota D1803-CR-TE5B(StageV)
Type Water cooled diesel engine
Rated power, SAE J1995 37 kW (49 hp) @ 2700 rpm
Hydraulic system
Driving Axial piston pump with variable displacement.
Radial piston motors (3) with constant displacement.
Vibration Gear pump/motors with constant displacement.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Secondary brake		 Failsafe multidisc on drum and wheel motors.

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Auger wear part kit
Category Subcategory P/N Additional info
Paving Large pavers 4812027478 Auger wings Ø380mm
Paving Large pavers 4812018439
Conveyor chain kit
Category Subcategory P/N Additional info
Paving Large pavers 4812029178 Single quantity of bars
Paving Large pavers 4812027444 Double quantity of bars
Conveyor drive kit
Category Subcategory P/N Additional info
Paving Large pavers 4812035552
Conveyor guide plate kit
Category Subcategory P/N Additional info
Paving Large pavers 4812225799
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Large pavers 4812016660
Hopper rubber kit, standard, hydr. front flap
Category Subcategory P/N Additional info
Paving Large pavers 4812018438 Stage IIIb/Tier 4 Stage IV/Tier 4F
Paving Large pavers 4812045834
Reversing roller kit
Category Subcategory P/N Additional info
Paving Large pavers 4812035553
Rubber plate kit
Category Subcategory P/N Additional info
Paving Large pavers 4812035550
Service kit
Category Subcategory P/N Additional info
Paving Large pavers 4700691229 Tier 3
Paving Large pavers 4812043983 Tier 3 Including oil
Paving Large pavers 4812046969 Tier 3, stage 2
Service kit , 1000H
Category Subcategory P/N Additional info
Paving Large pavers 4812046969 Tier 3
Paving Large pavers 4812012936 Tier 4F
Service kit , 500H
Category Subcategory P/N Additional info
Paving Large pavers 4700691229 Tier 3
Paving Large pavers 4812012382 Tier 4i Including oil
Paving Large pavers 4812012939 Tier 4F

Spare parts manuals

Eager to see the spare parts of Dynapac CC1300C?

Please Log in or Register to MyDynapac to get access.

Equipment (Standard and options)

Optional

■ 3” seatbelt
■ Biodegradable hydraulic fluid
■ Cert. Fire protection (SBF 127)
■ Decal risk location (GOST)
■ Driving lights (right and left handed). Dual forward/reverse control
■ Fire extinguisher, Flow divider
■ Foot rest
■ Hearing protectors
■ Licence plate light
■ Rear view mirror (traffic view)
■ Rotating beacon(ignition controlled)
■ Service kit 50/500/1000H
■ Side direction lights (driving lights required)
■ Slide lux seat
■ Slow moving vehicle sign
■ Special color (one or two)
■ Spring loaded scrapers
■ Tool set
■ Towing eyelet
■ Water tank cover(lockable)

Compaction data
